Brake Disc Front 240 mm - HUSQVARNA
850 SEK per Each
(Optional)
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 5100-290
Husqvarna 87-91*.
If you have a 89-91 modell, check if you have a 230 mm or a 240 mm brake disc. The 230 mm brake disc have article number 5100-158
Fits the following models:
HUSQVARNA
CR 125 87-91
CR 250 87-91
CR 500 1987
TC 610 1991
TE 350 89-91
TE 510 90-91
TE 610 1991
WR 125 87-91
WR 250 87-91

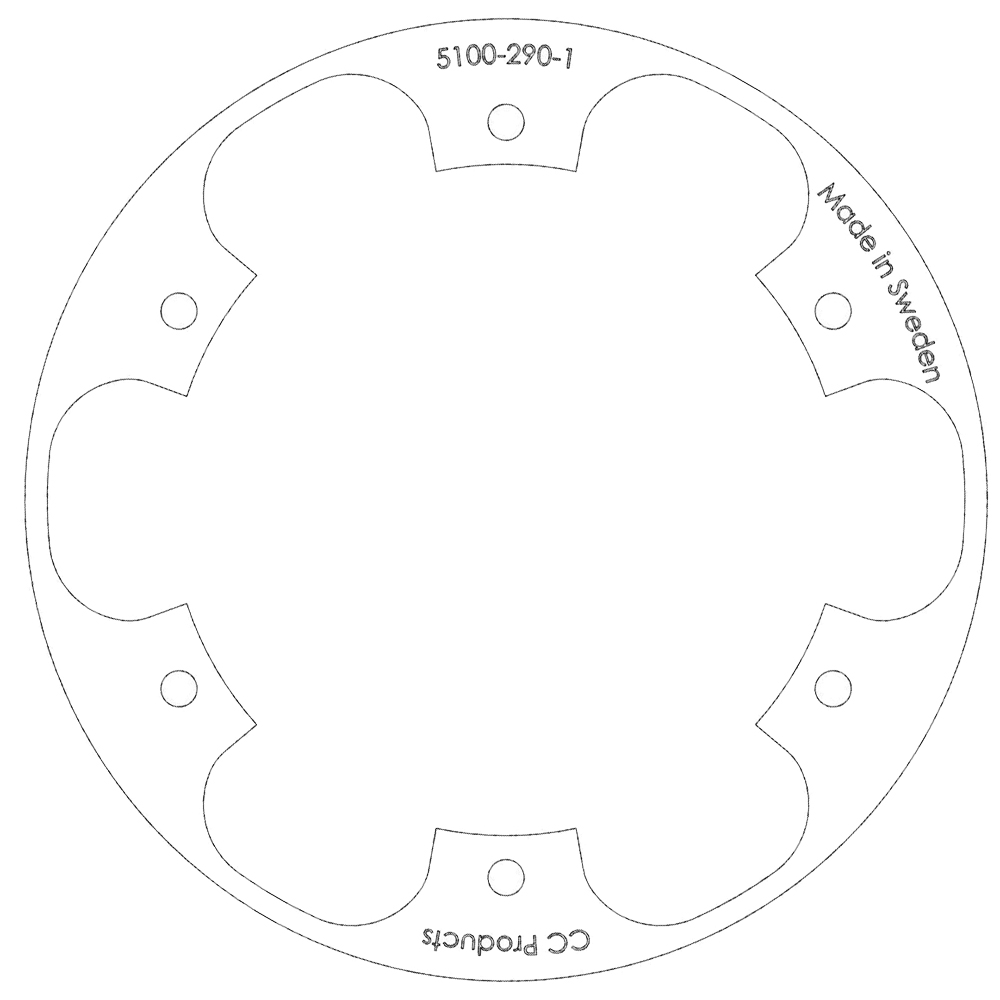

NOTE! You need to use the article 5100-290-1. It's a 2.5 mm inner ring that relocates the brake disc 2.5 mm out from the hub on some models. Original brake disc is made from 6.5mm material that is cut down to 4 mm. See picture 2.
Buy the inner ring above.

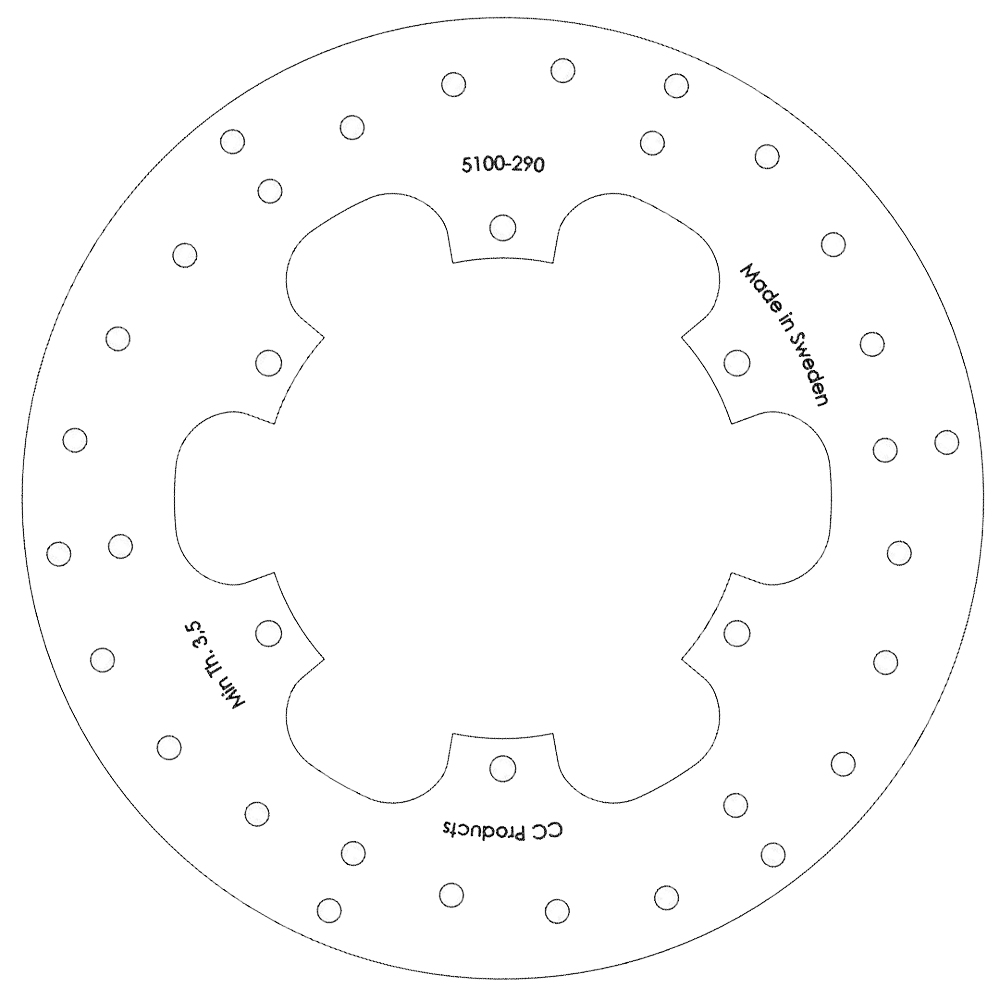

BRAKE DISC MEASUREMENTS
Outer diameter: 240 mm
Inner diameter: 120 mm
Thickness: 4 mm
Number of bolt holes: 6
Hole diameter: 6,5 mm
Pitch: 135 mm
Countersink: Cap bolt 11 mm
Bolt article: 1080-016
OEM Art. Nr. ?
