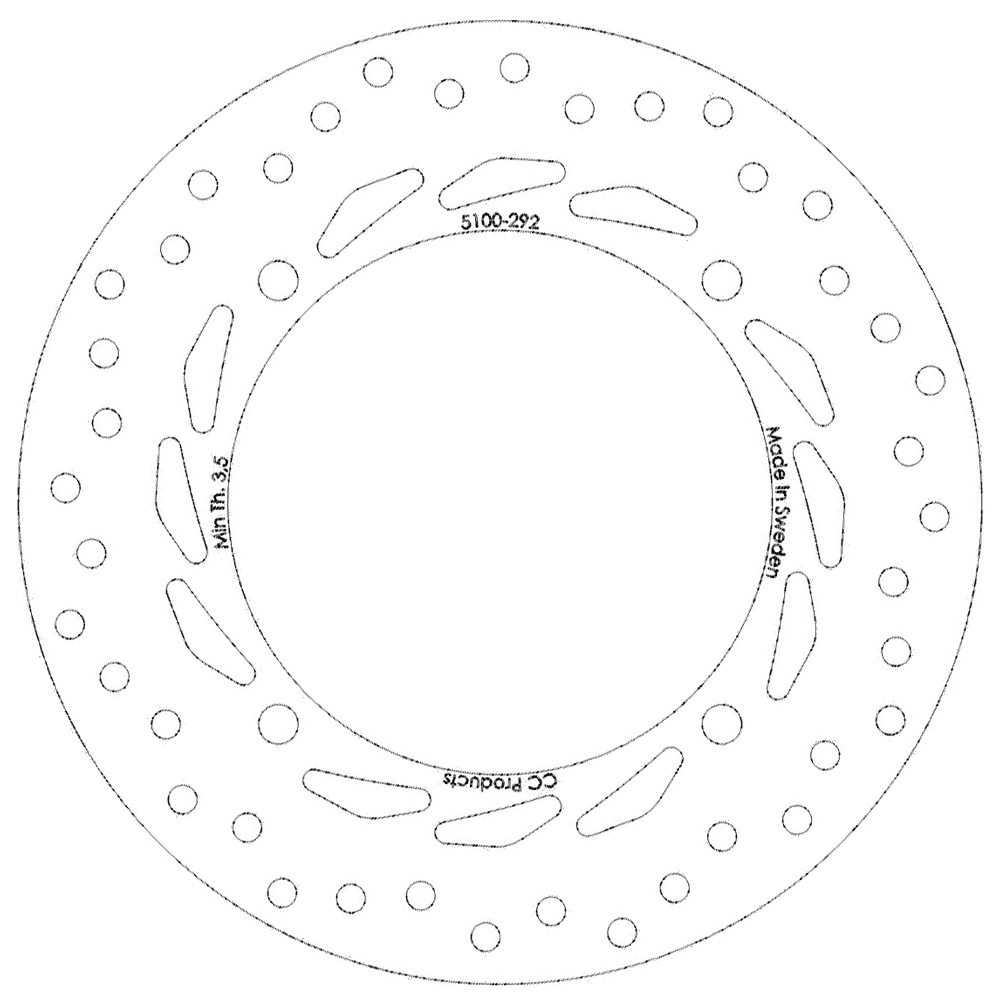

Brake Disc Front 256 mm - HONDA
850 SEK per Each
(Optional)
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 5100-292
NX 650 Dominator 88-02, XL 600-700 V Transalp 97-12/XR 650 L 93-06
Fits the following models:
HONDA
NX 650 Dominator 88-02
XL 600 V Transalp 97-99
XL 650 V Transalp 00-07
XL 700 V Transalp 08-12
XR 650 L 93-06
BRAKE DISC MEASUREMENTS
Outer diameter: 256 mm
Inner diameter: 144 mm
Thickness: 4 mm
Number of bolt holes: 4
Hole diameter: 10,5 mm
Pitch: 166 mm
Countersink: Cap bolt 16 mm
Bolt article: 1083-013
OEM Art. Nr. 45351-MN9-000 replaced by 45351-MN9-010 replaced by 45351-MN9-020
Fits the following models:
HONDA
NX 650 Dominator 88-02
XL 600 V Transalp 97-99
XL 650 V Transalp 00-07
XL 700 V Transalp 08-12
XR 650 L 93-06
BRAKE DISC MEASUREMENTS
Outer diameter: 256 mm
Inner diameter: 144 mm
Thickness: 4 mm
Number of bolt holes: 4
Hole diameter: 10,5 mm
Pitch: 166 mm
Countersink: Cap bolt 16 mm
Bolt article: 1083-013
OEM Art. Nr. 45351-MN9-000 replaced by 45351-MN9-010 replaced by 45351-MN9-020
