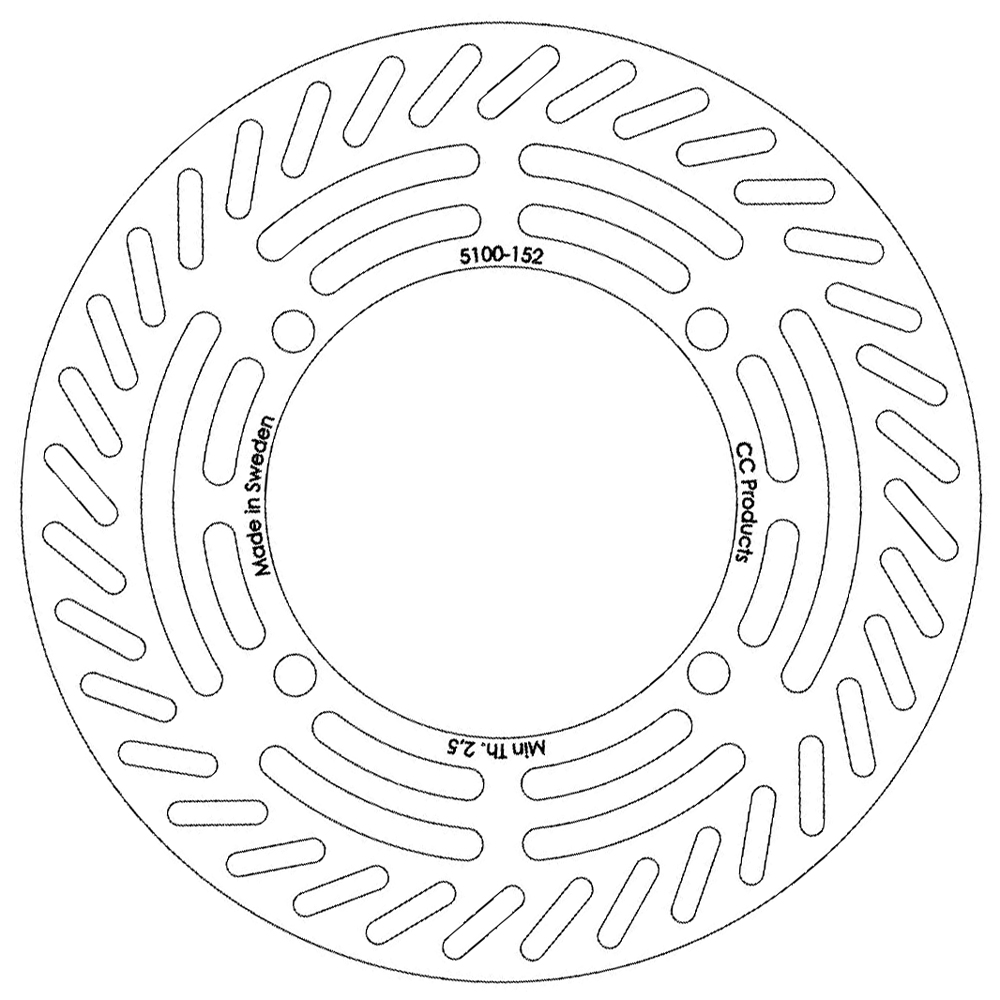

Brake Disc Front CR 125-500 89-91
850 SEK per Each
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 5100-152
240 mm
IMPORTANT! Check carefully what wheel you have before ordering, there are 3 brake discs that look almost identical but are slightly different. The difference is different size of bolt holes, symmetrical and asymmetrical bolt holes.
Compare with these: 5100-262 84-88 och 5100-266 92-94.
Honda
CR 125 89-91
CR 250 89-91
CR 500 89-91
MEASUREMENTS
Outer diameter: 240 mm
Inner diameter: 118 mm
Thickness: 3 mm
Number of bolt holes: 4
Bolt hole diameter: 10,5 NOTE! These holes are asymmetrical.
Short length between bolt holes: 86 mm
Long length between bolt holes: 104 mm
Pitch: 134 mm
Countersink: None
OEM Article number brake disc: 45351-ML3-910
OEM Article number M8x22 brake disc bolt: 90105-MK5-010.
