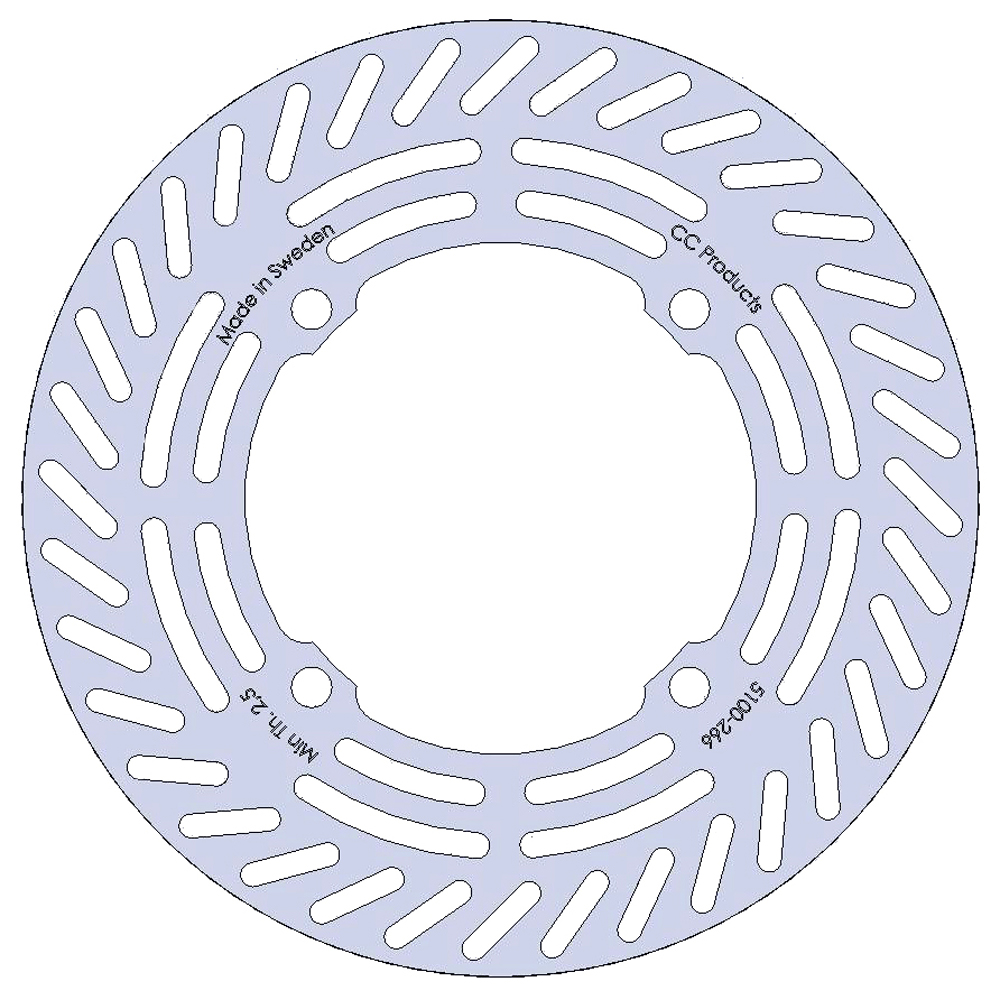

Brake Disc Front Honda CR 125-500 92-94
850 SEK per Each
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 5100-266
240 mm
IMPORTANT! Check carefully what wheel you have before ordering, there are 3 brake discs that look almost identical but are slightly different. The difference is different size of bolt holes, symmetrical and asymmetrical bolt holes.
Compare with these: 5100-152 CR 125-500 89-91 och 5100-262 CR 125-500 84-88.
Honda
CR 125 92-94
CR 250 92-94
CR 500 92-94
CRF 230 L 08-09
CRF 230 M 2009
XR 250 L 91-96
XR 250 R 91-92
XR 600 R 91-92
NOTE! There are 2 different models:
1. Long cooling holes.
2. Round cooling holes.
Brake disc information
Outer diameter: 240 mm
Inner diameter: 118 mm
Thickness: 3 mm
Number of bolt holes: 4
Bolt hole diameter: 10,0 mm
Pitch: 134 mm
Countersink: None
OEM Article number brake disc: 45351-KV6-670
OEM Article number brake disc bolt: 90105-KAE-870
IMPORTANT! Check carefully what wheel you have before ordering, there are 3 brake discs that look almost identical but are slightly different. The difference is different size of bolt holes, symmetrical and asymmetrical bolt holes.
Compare with these: 5100-152 CR 125-500 89-91 och 5100-262 CR 125-500 84-88.
Honda
CR 125 92-94
CR 250 92-94
CR 500 92-94
CRF 230 L 08-09
CRF 230 M 2009
XR 250 L 91-96
XR 250 R 91-92
XR 600 R 91-92

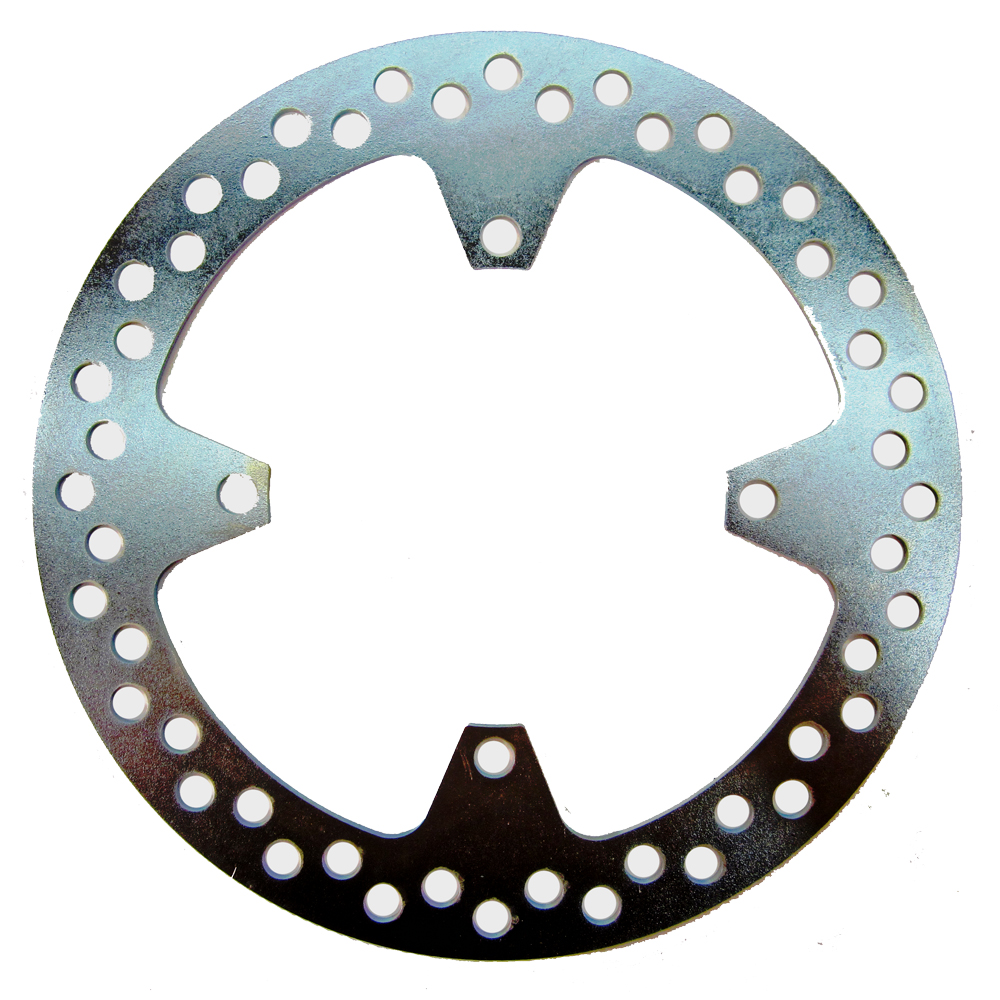

NOTE! There are 2 different models:
1. Long cooling holes.
2. Round cooling holes.
Brake disc information
Outer diameter: 240 mm
Inner diameter: 118 mm
Thickness: 3 mm
Number of bolt holes: 4
Bolt hole diameter: 10,0 mm
Pitch: 134 mm
Countersink: None
OEM Article number brake disc: 45351-KV6-670
OEM Article number brake disc bolt: 90105-KAE-870
