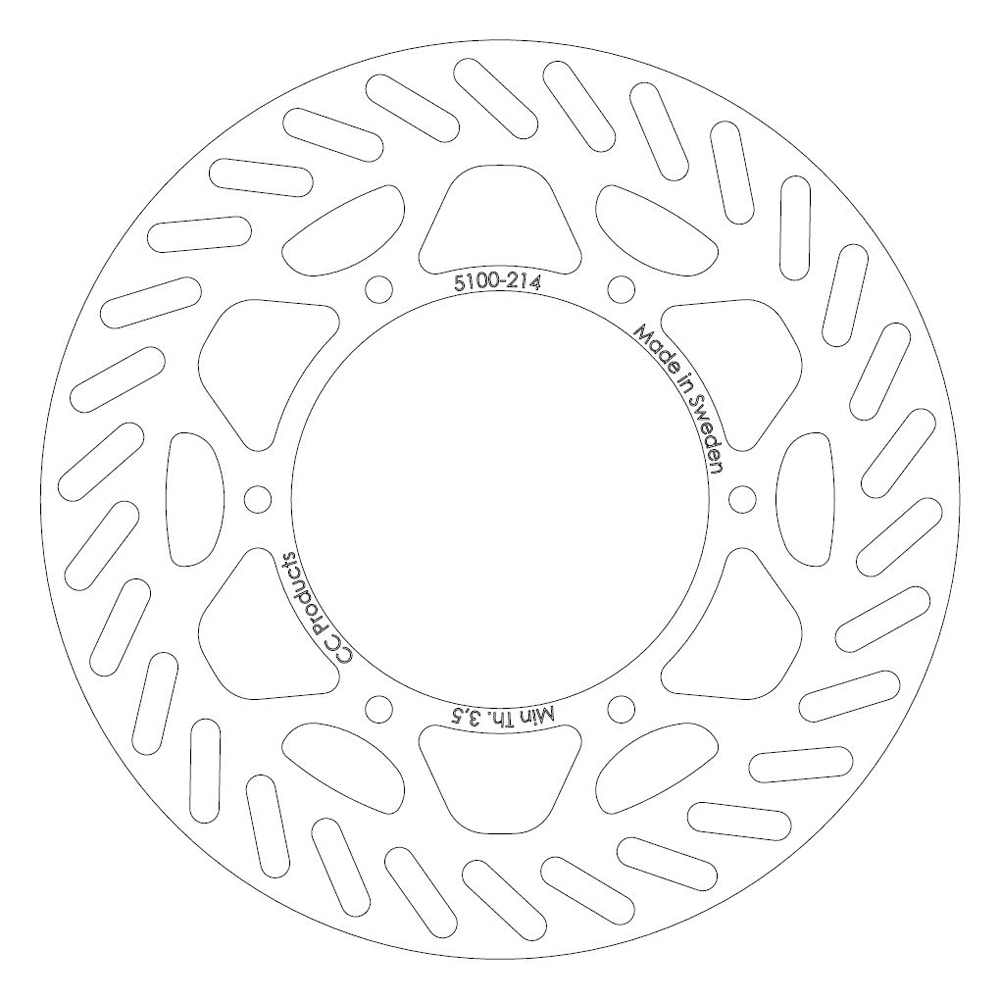

Brake Disc Rear
850 SEK per Each
CC Products brake discs are laser cut from hot rolled Swedish precision, extra high strength, cold forming steel from a carefully controlled process. This steel combines high strength with a low weight that are obtained with a raw material that has carbon and manganese with a precise addition of grain refiners such as niobium, titanium and vanadium.
The brake discs are designed with the latest Cad/Cam technology for the highest precision and the surface are zinc coated for a high finish.
CC Products brake discs have many advantages:
· They don’t crack as easily as a hardened disc.
· All brake discs have a hardness of 30 HRC.
· Especially made for motocross and enduro.
· Made in Sweden.
· Can be used with any type of brake pads.
· Most disc have an OEM look.
· With over 200 different brake discs we cover most MX and Enduro bikes ever made.
· Very fast deliveries! We have over 5000 brake discs in stock!
The brake discs are designed with the latest Cad/Cam technology for the highest precision and the surface are zinc coated for a high finish.
CC Products brake discs have many advantages:
· They don’t crack as easily as a hardened disc.
· All brake discs have a hardness of 30 HRC.
· Especially made for motocross and enduro.
· Made in Sweden.
· Can be used with any type of brake pads.
· Most disc have an OEM look.
· With over 200 different brake discs we cover most MX and Enduro bikes ever made.
· Very fast deliveries! We have over 5000 brake discs in stock!
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 5100-214
KX 125/250 92-02 / 500 92-04
KAWASAKI
KX 125 92-02 (Fits also 89-91 but have other design, see 5100-012)
KX 250 92-02 (Fits also 89-91 but have other design, see 5100-012)
KX 500 92-04 (Fits also 89-91 but have other design, see 5100-012)
MEASUREMENTS
Outer diameter: 220 mm
Inner diameter: 110 mm
Thickness: 4 mm
Number of bolt holes: 6
Hole diameter: 6,5 mm
Pitch: 116 mm
Countersink: 90 dg
CC Bolt article number: 1083-010
OEM Ref. 41080-1230
KAWASAKI
KX 125 92-02 (Fits also 89-91 but have other design, see 5100-012)
KX 250 92-02 (Fits also 89-91 but have other design, see 5100-012)
KX 500 92-04 (Fits also 89-91 but have other design, see 5100-012)
MEASUREMENTS
Outer diameter: 220 mm
Inner diameter: 110 mm
Thickness: 4 mm
Number of bolt holes: 6
Hole diameter: 6,5 mm
Pitch: 116 mm
Countersink: 90 dg
CC Bolt article number: 1083-010
OEM Ref. 41080-1230
