Spoke Set Husqvarna 360 C Enduro 18-inch 71-72 Rear Wheel
1,090 SEK per Set
CC Products spokes are made in our spoke machine in our own warehouse in Sweden. We use Swedish stainless steel spoke wire with a tensile strength of 1450 N/mm2 and a yield strength of 1250 N/mm2!
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
(Optional)
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 50-0336
CC Products stainless spoke set
Fits the following models:
HUSQVARNA
360 Cross 70-71
360 C Enduro 71-72
400 Cross 1970
CR 125 1972
CR 250 70-72
CR 400 71-72
CR 450 1972
WR 125 1972
WR 250 70-72
WR 450 1972
For 18-inch rear wheel with hub 15 16 599-01 (complete hub) and 16 16 600-01 (hub only).
This spoke set has 36 spokes with spoke nipples.

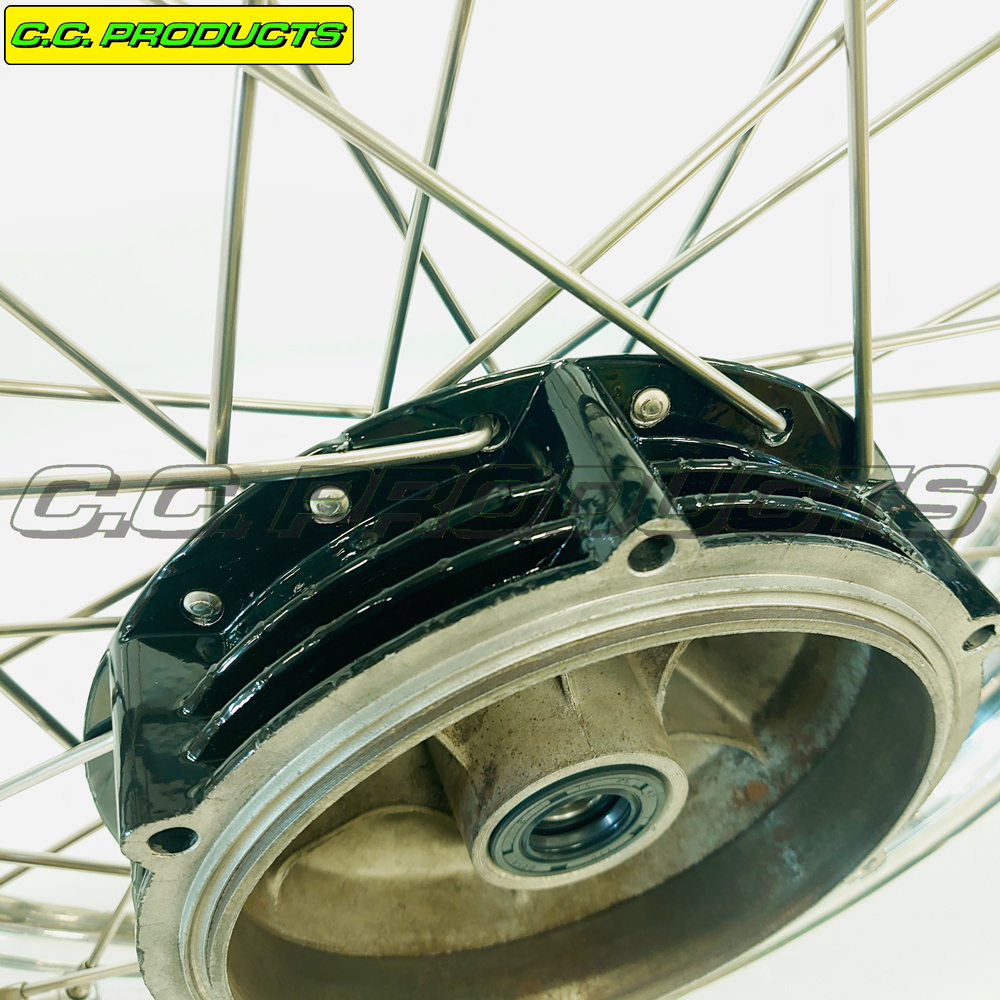

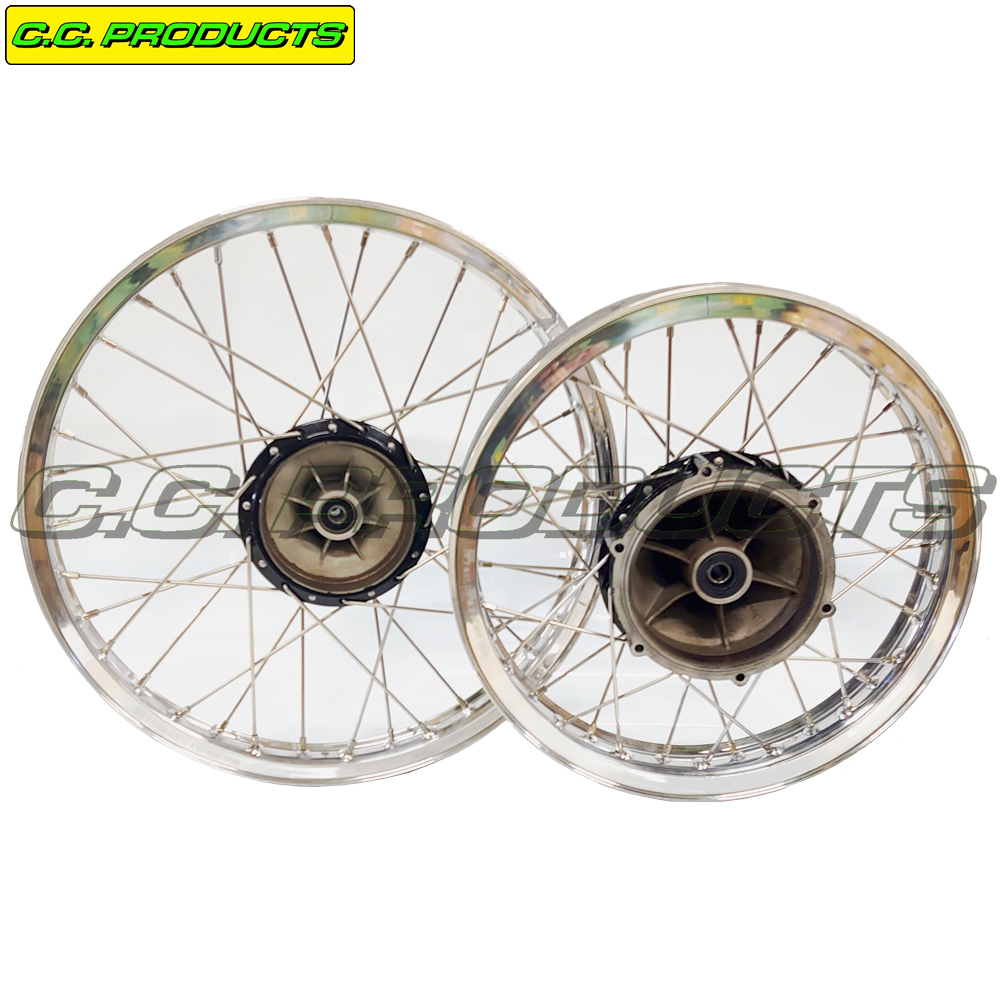

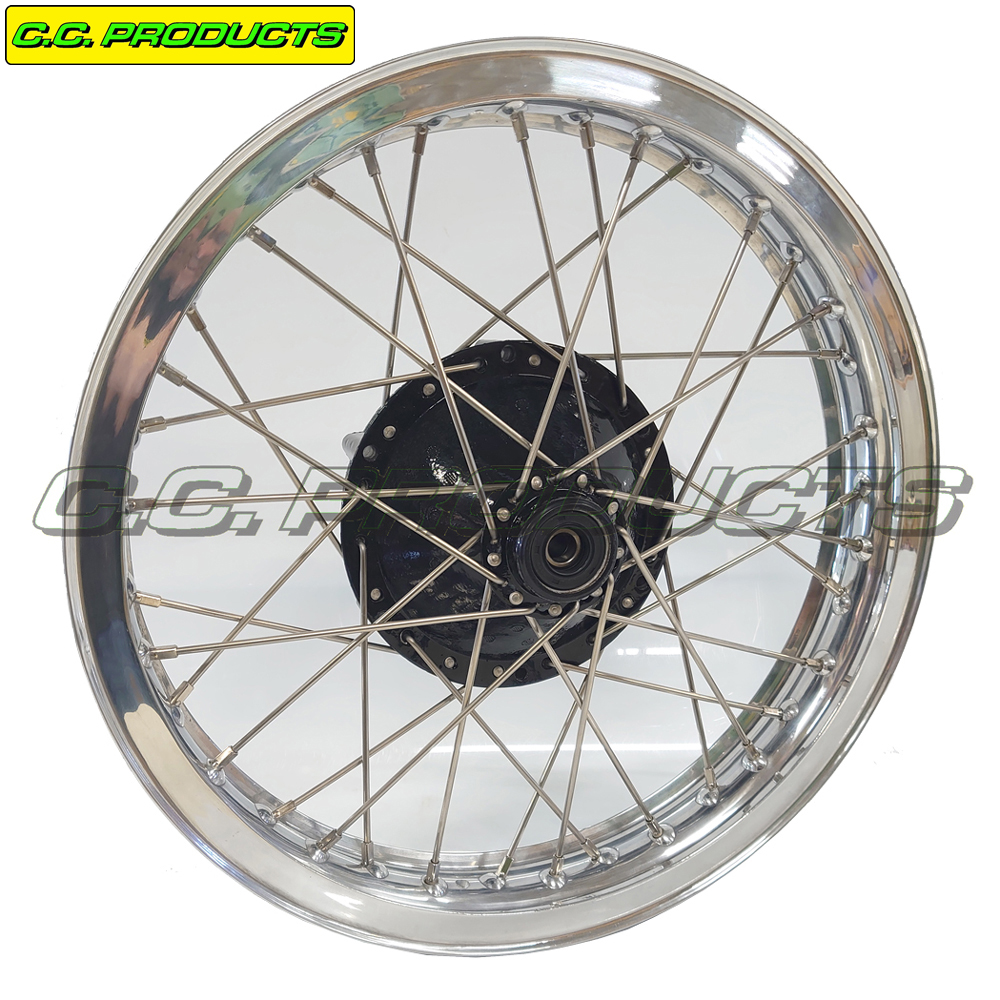

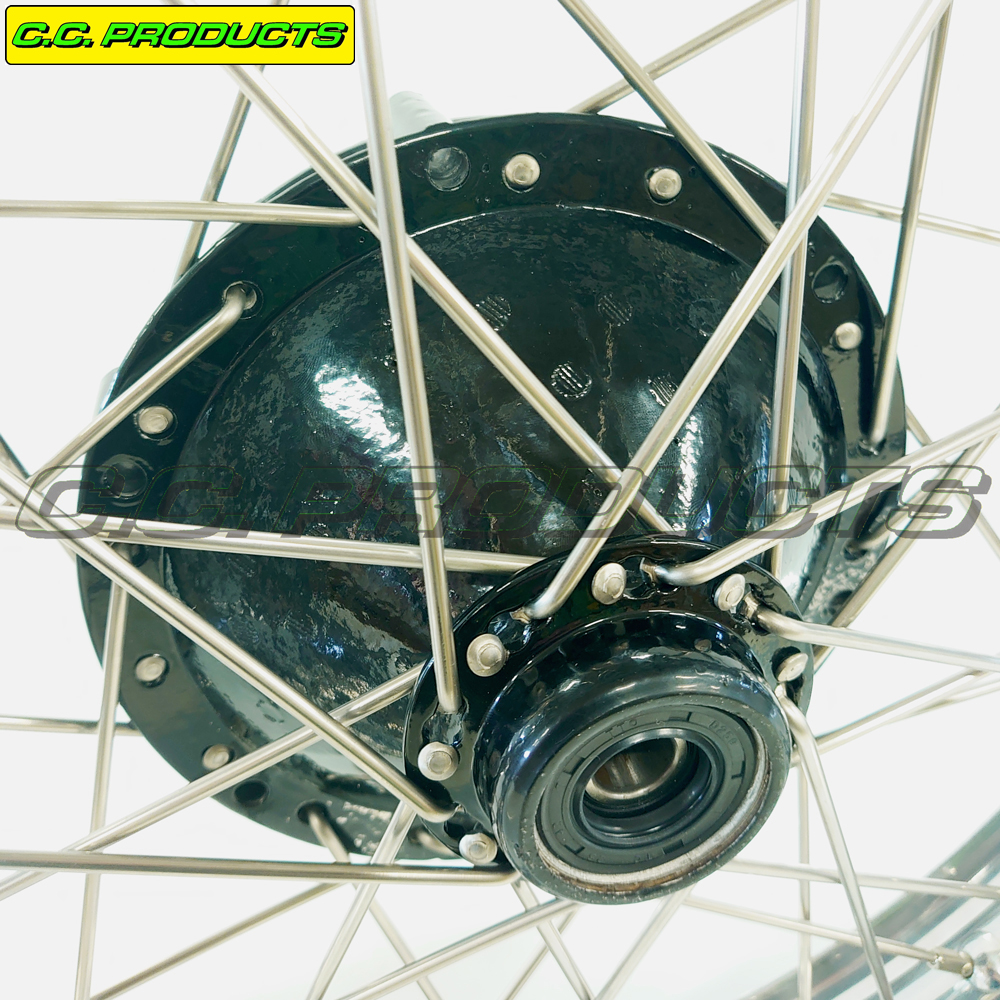

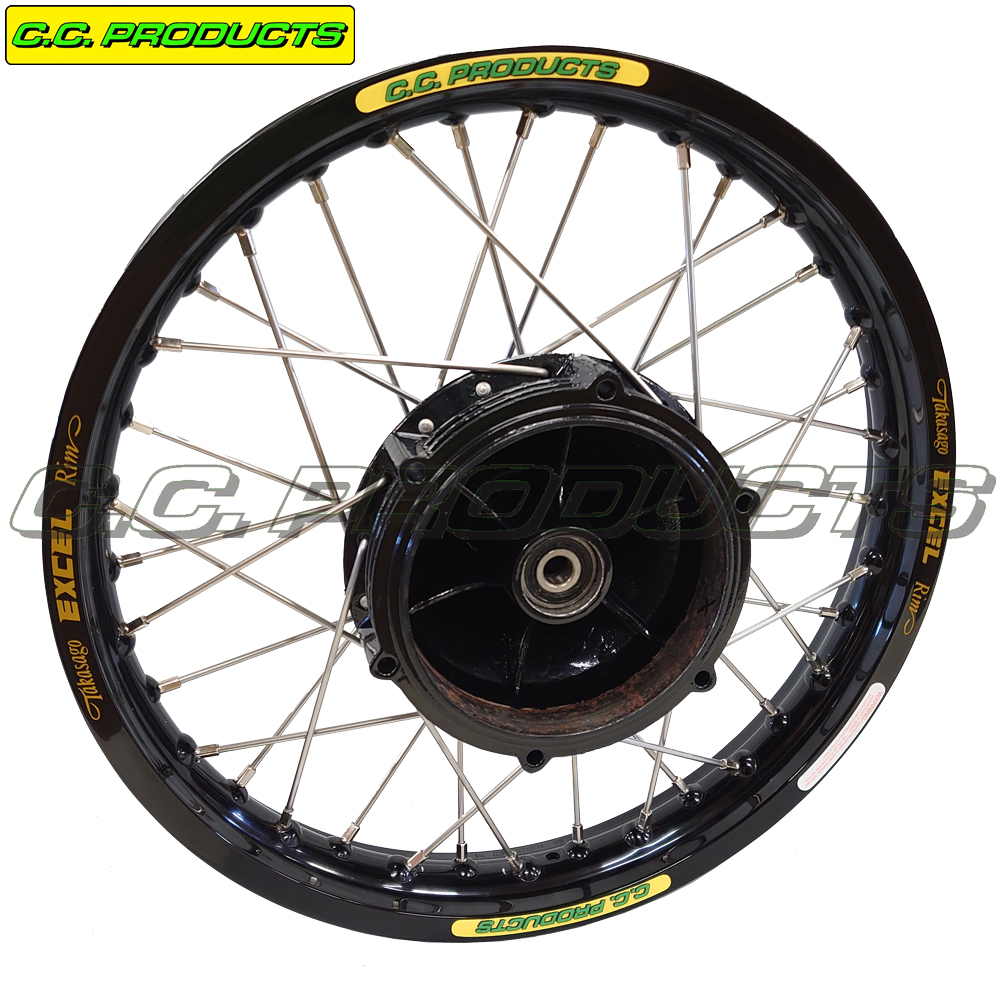

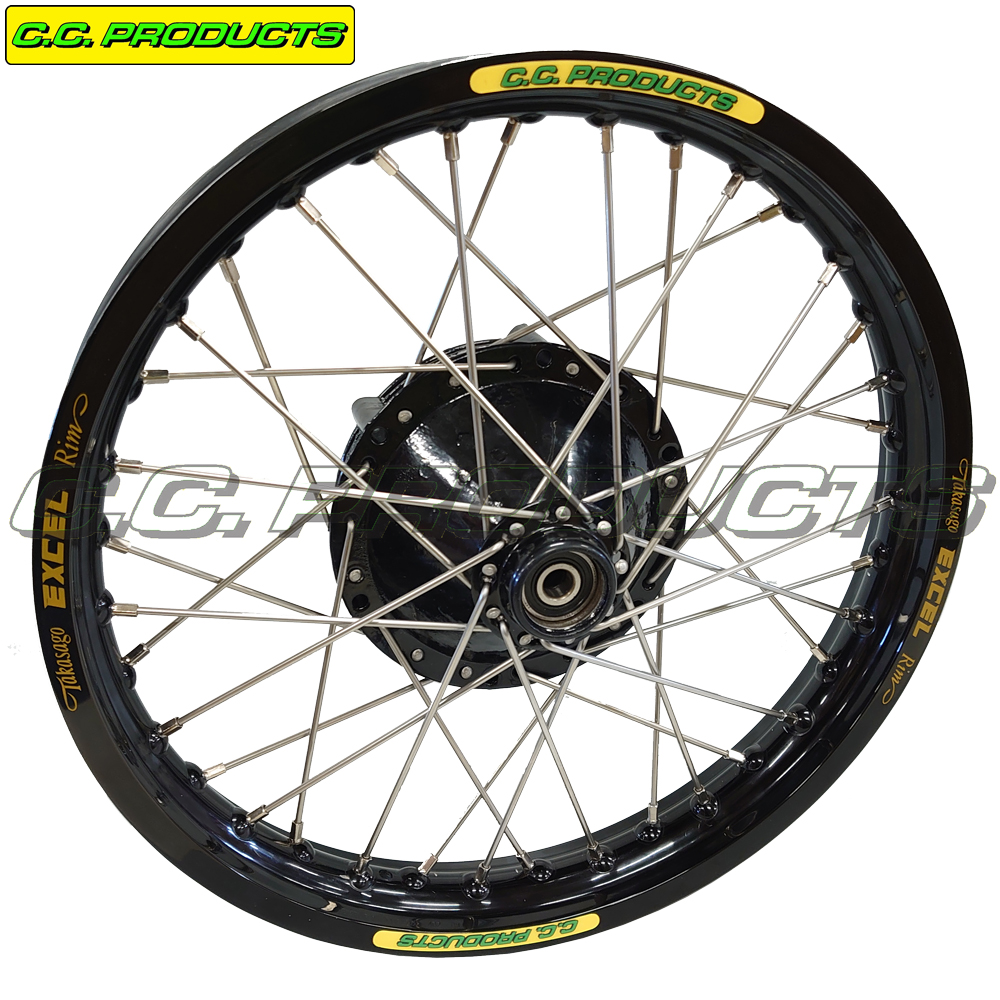

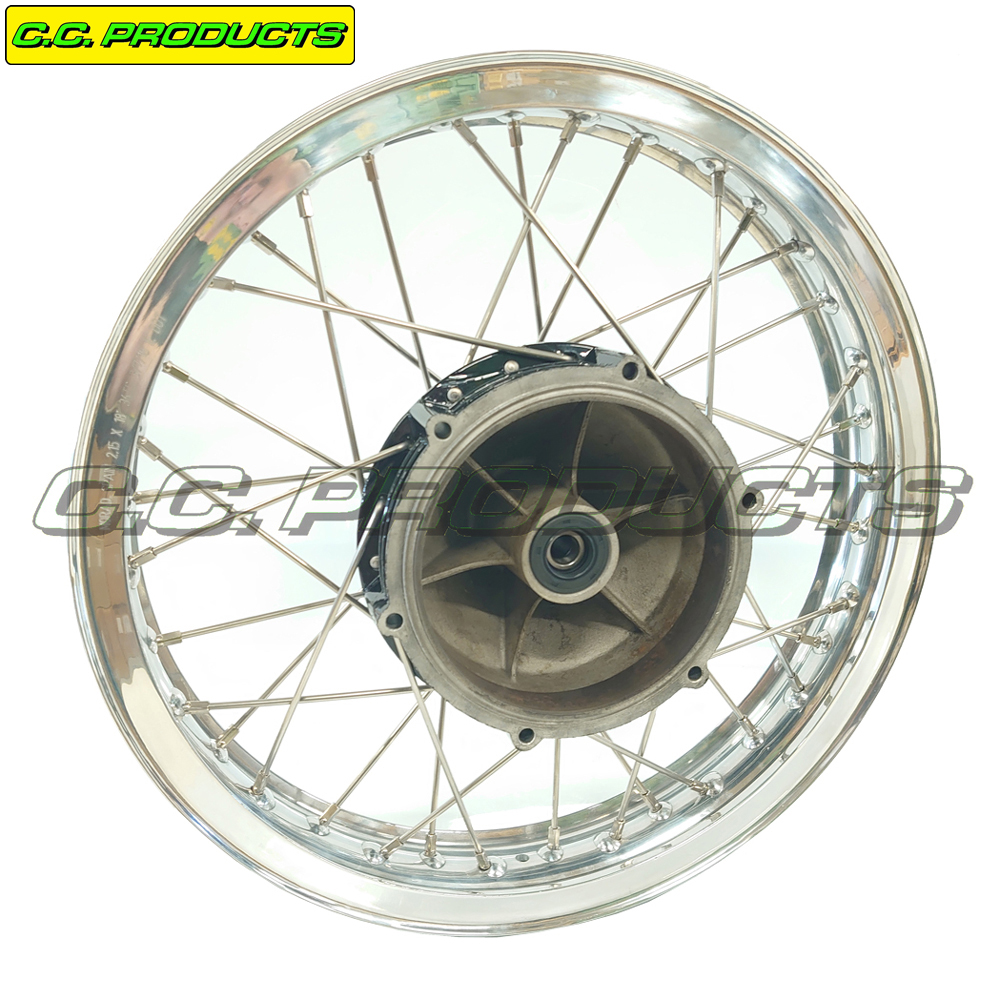

NOTE! This wheel have a very special lacing as you can see on the pictures below. On the sprocket side (right side) there are 2 long spokes and one short spoke used on both inner and outer side of the hub.
Spoke size: 6 spokes of 4x159 mm. Outer and inner spoke on right side.
OEM Ref. 15 16 049-11.
Spoke size: 12 spokes of 4x189 mm. Outer and inner spoke on right side.
OEM Ref. 15 16 049-01.
Spoke size: 18 spokes of 4x204 mm. Left side.
OEM Ref. 15 16 049-03.
Nipple size: 7,0x20 mm. (8G/275)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 4x159 mm, have article number 50-0336-1
One spoke and nipple, 4x189 mm, have article number 50-0336-2
One spoke and nipple, 4x204 mm, have article number 50-0336-3
