Spoke Set Husqvarna AMX 390 18-inch 75-77 Rear Wheel
1,090 SEK per Set
CC Products spokes are made in our spoke machine in our own warehouse in Sweden. We use Swedish stainless steel spoke wire with a tensile strength of 1450 N/mm2 and a yield strength of 1250 N/mm2!
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
(Optional)
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 50-0338

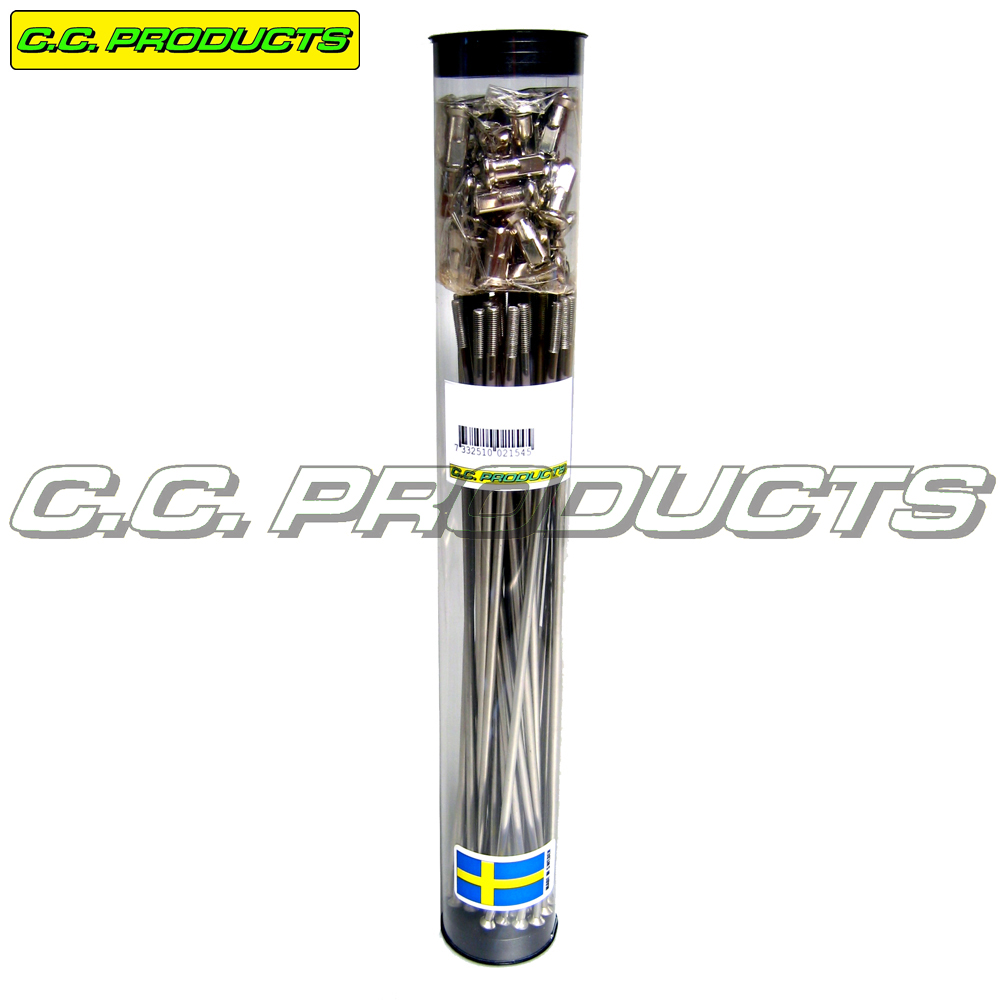

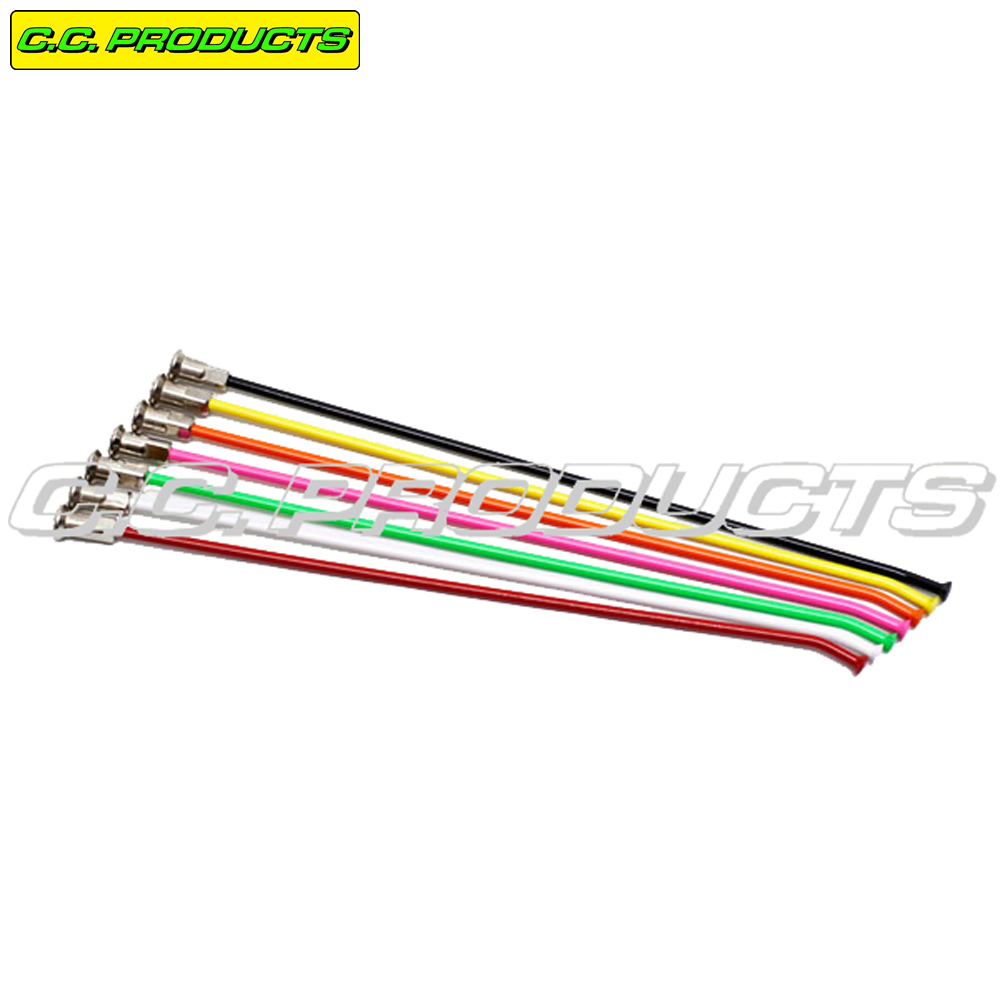

CC Products stainless spoke set
Fits the following models:
HUSQVARNA
ACC 390 77-78
AMX 390 75-77
CR 125 75-76
CR 175 75-76
CR 250 75-76
CR 360 75-76
CR 360 Automatic 75-76
CR 390 75-76
OR 390 75-76
WR 125 75-76
WR 250 75-76
WR 360 75-76
WR 360 Automatic 75-76
WR 390 75-76

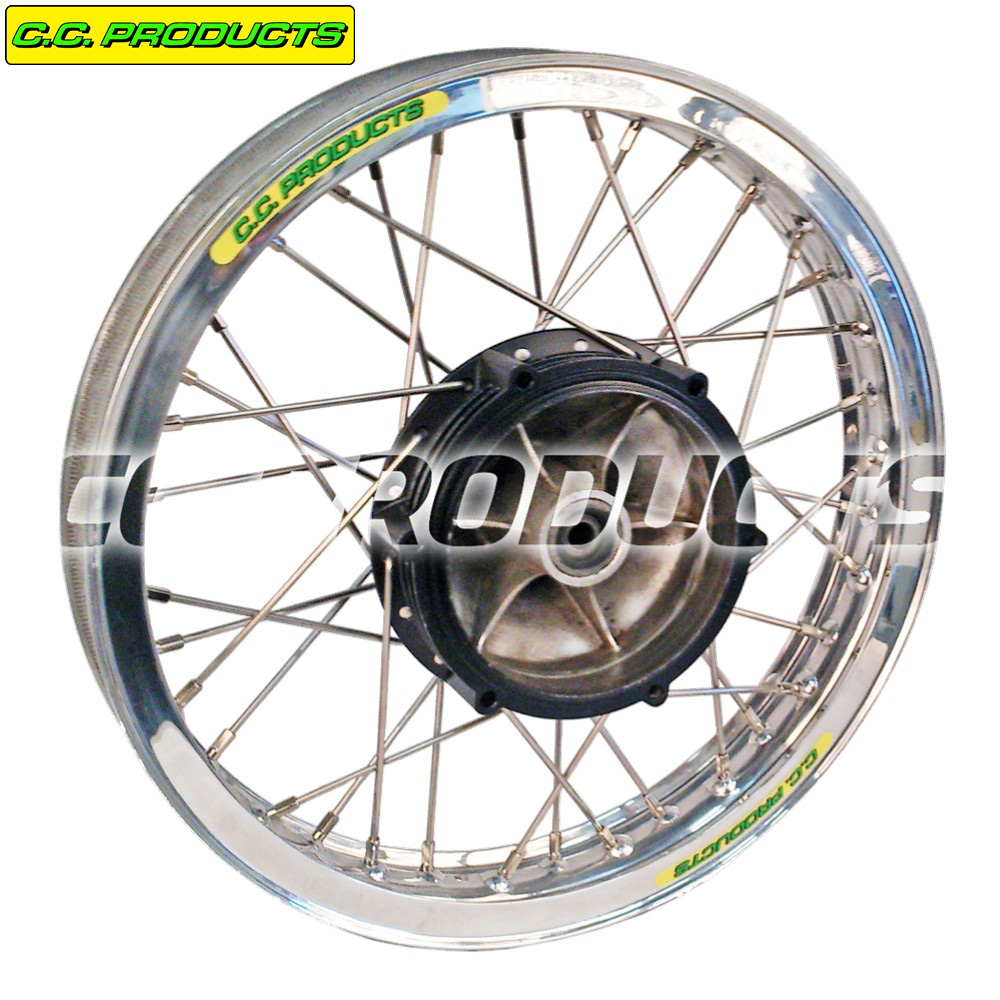

For 18-inch rear wheel with hub 15 19 818-01.

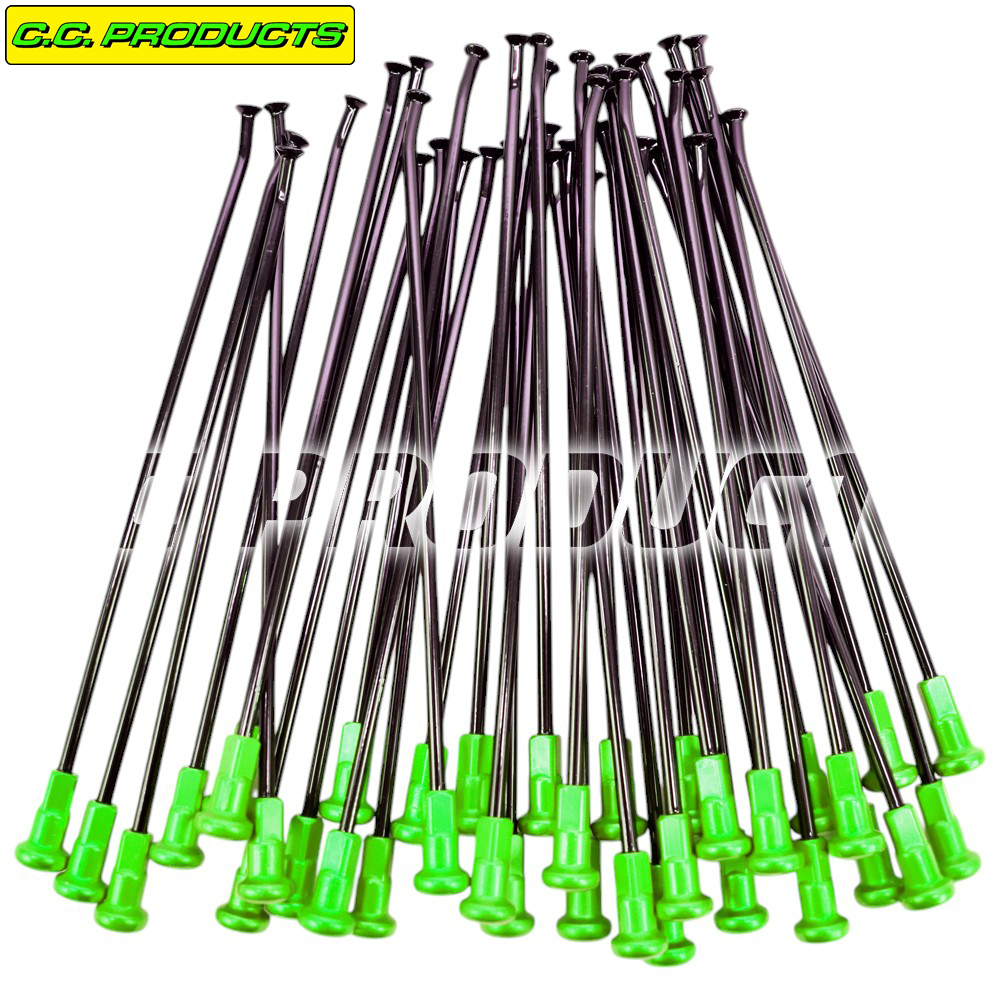

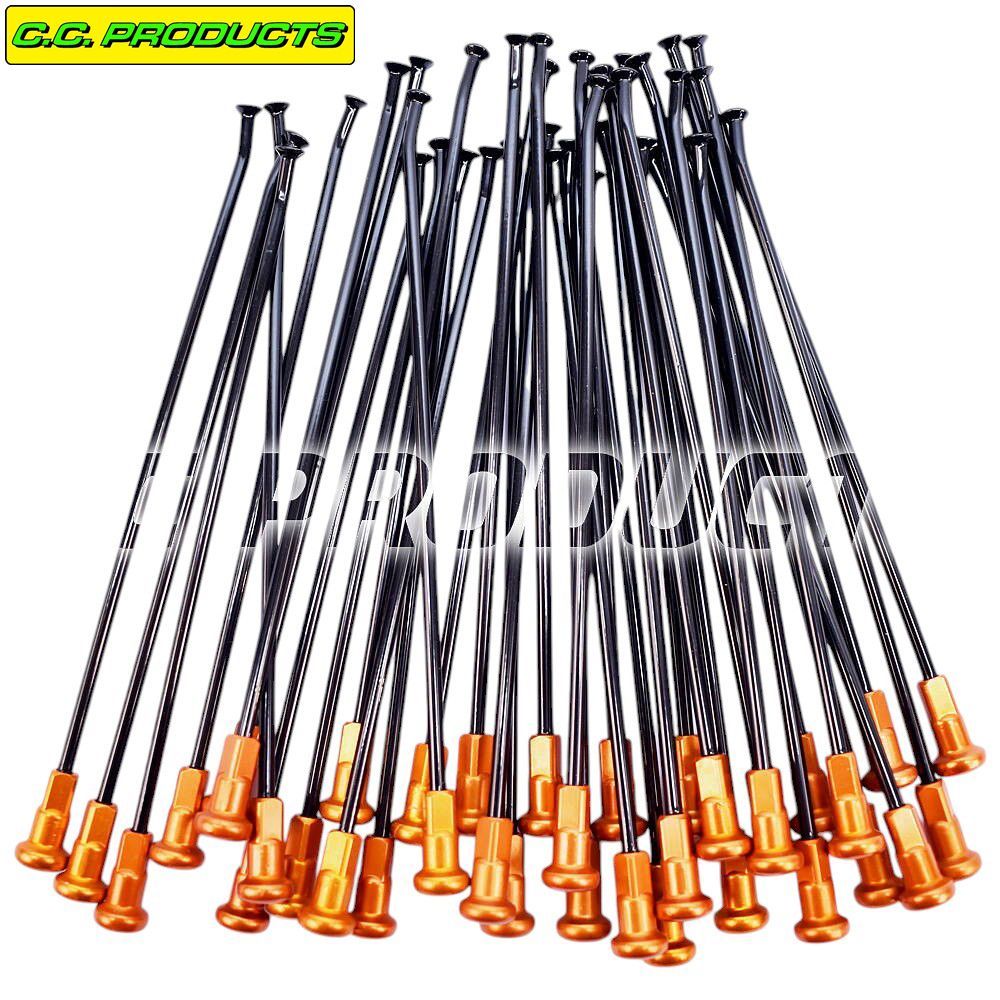

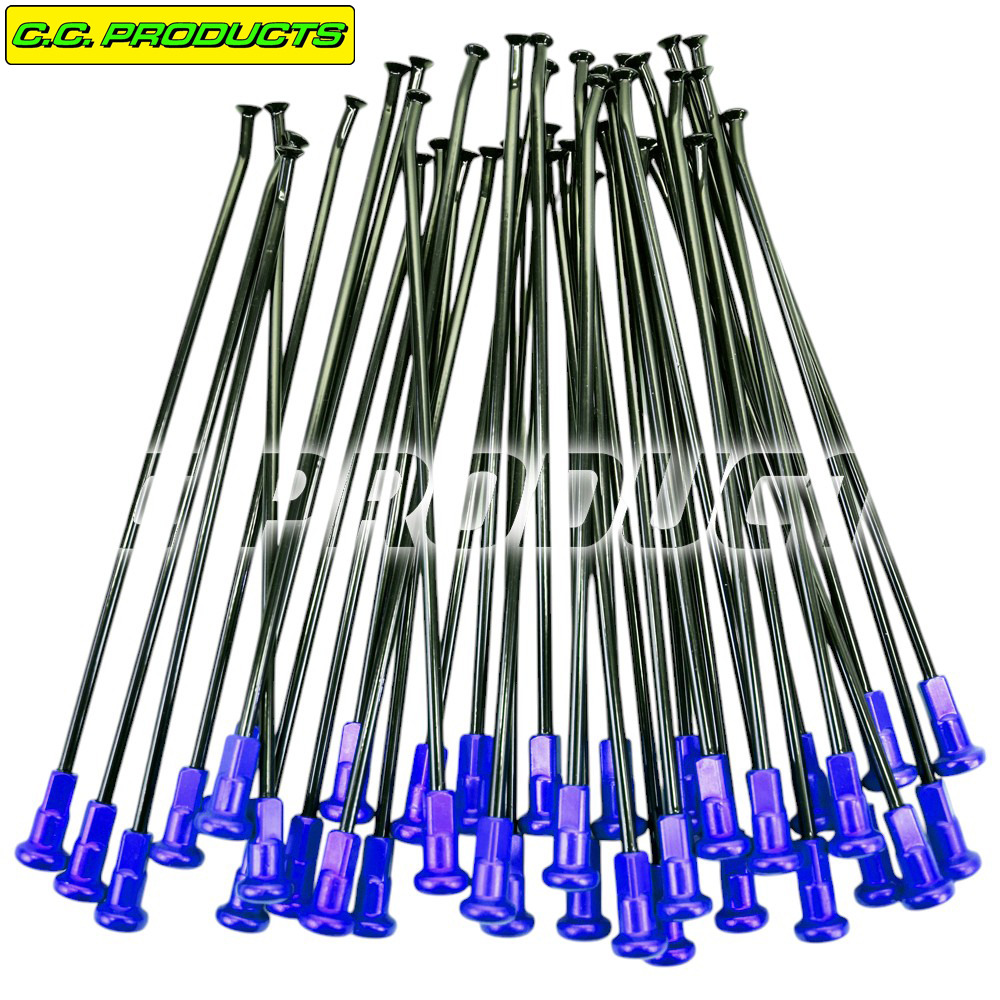

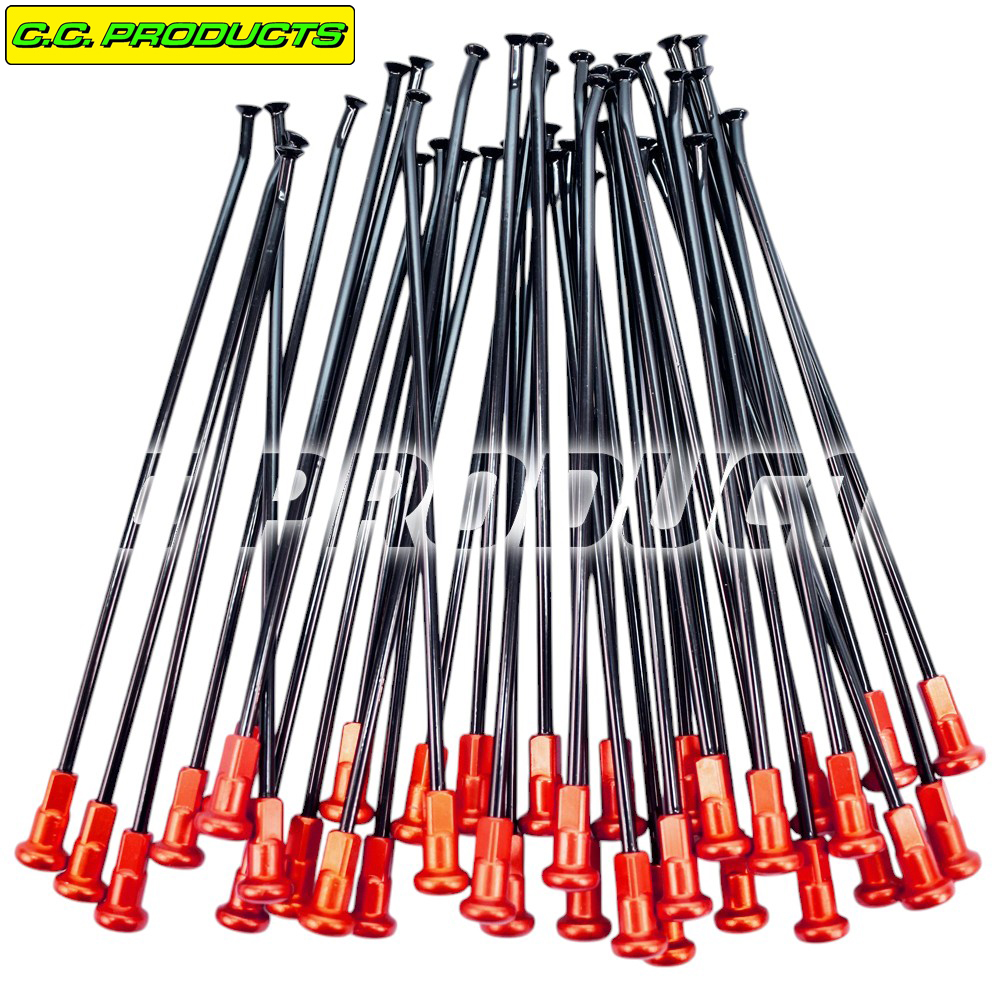

This spoke set has 36 spokes with spoke nipples.

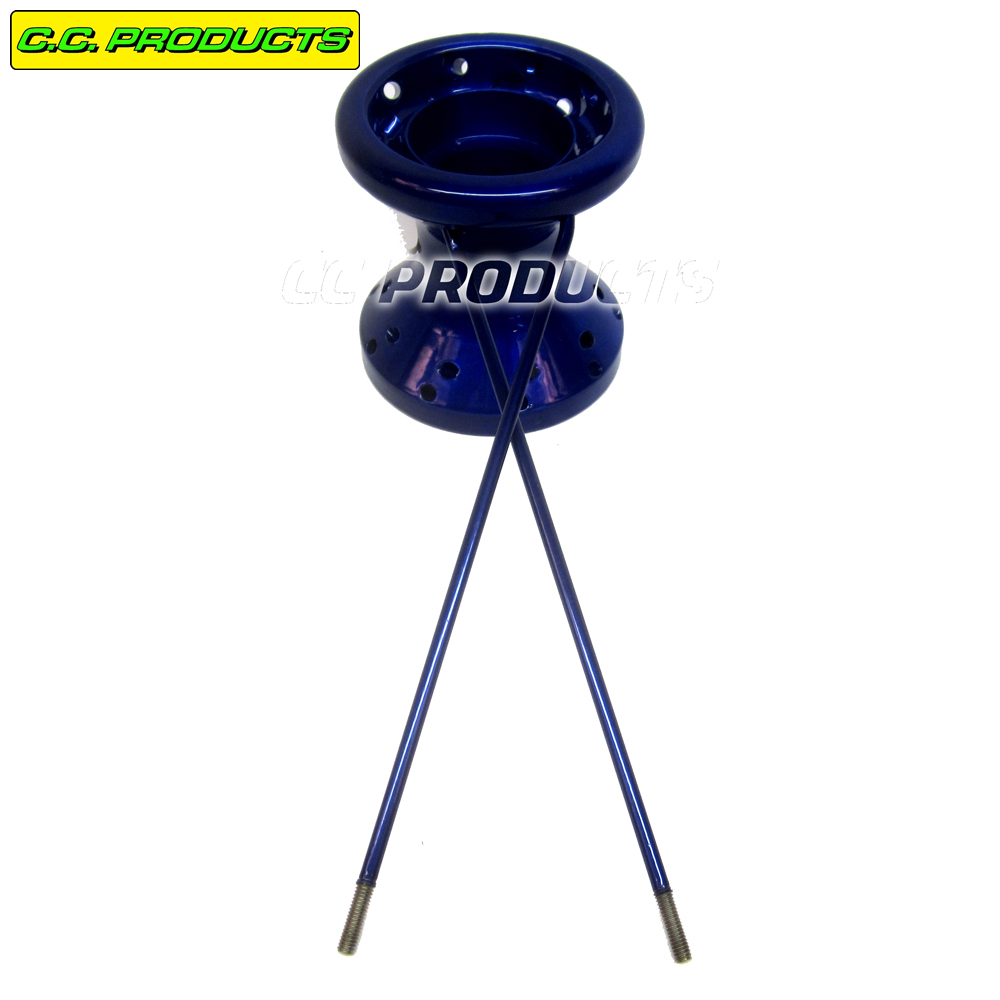

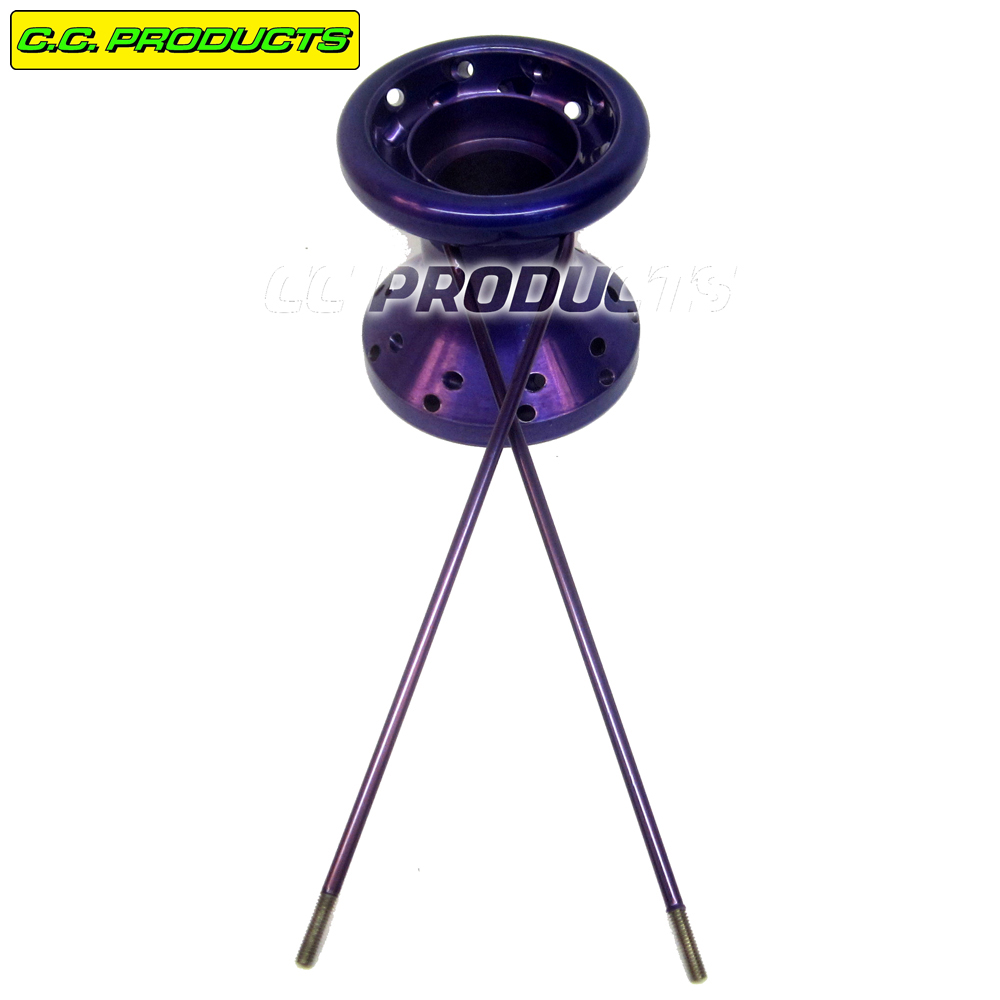

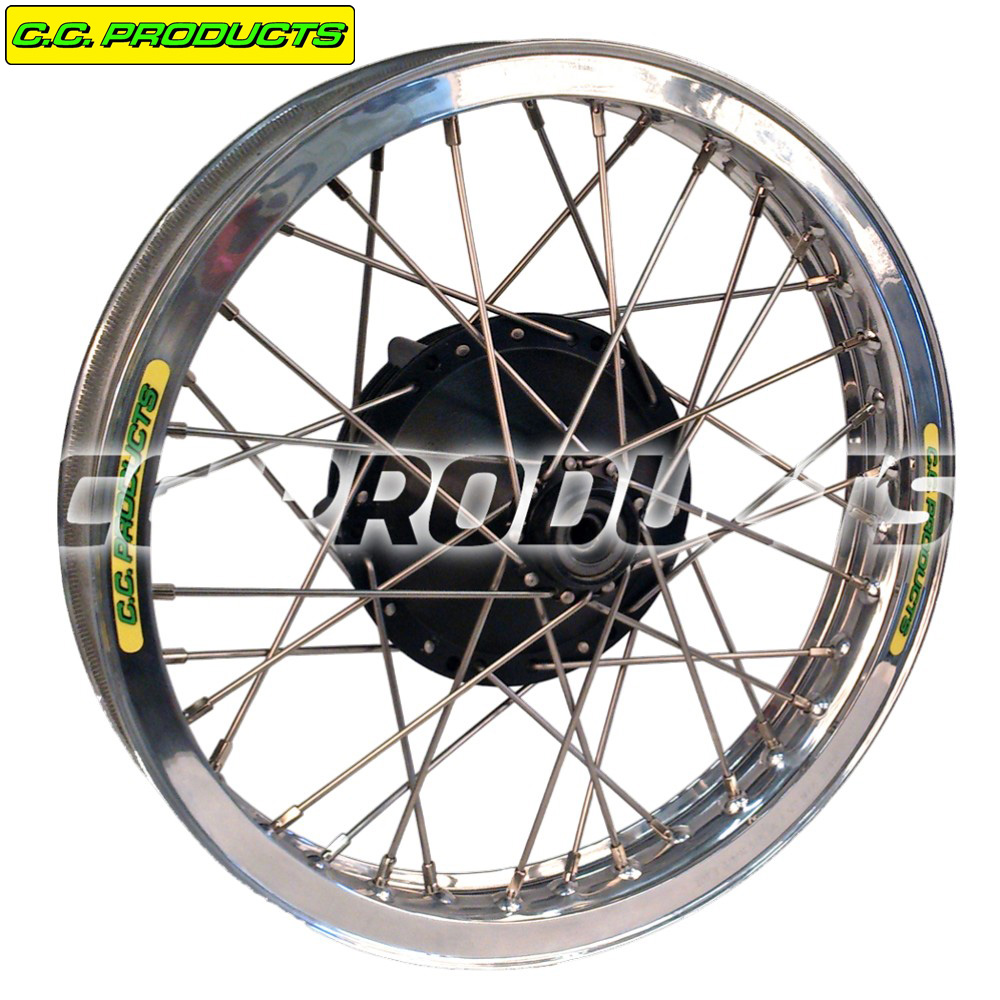

NOTE! This wheel have a very special lacing as you can see on the pictures below. On the sprocket side (right side) there are 2 long spokes and one short spoke used on both inner and outer side of the hub.
Spoke size: 6 spokes of 4x161 mm. Outer and inner spoke on right side.
OEM Ref. 15 16 049-14.
Spoke size: 12 spokes of 4x191 mm. Outer and inner spoke on right side.
OEM Ref. 15 16 049-15.
Spoke size: 18 spokes of 4x203 mm. Left side.
OEM Ref. 15 16 049-17.
OEM Spoke Set number: 15 16 652-01.

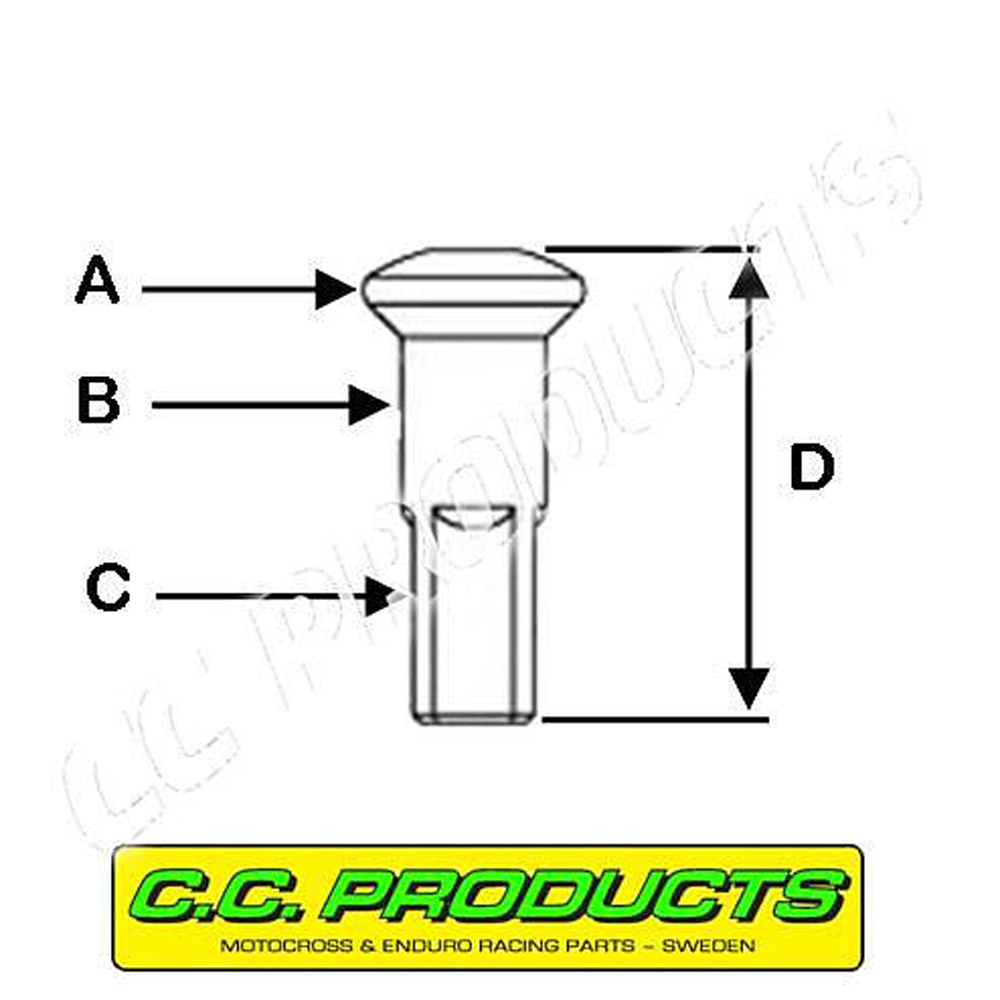

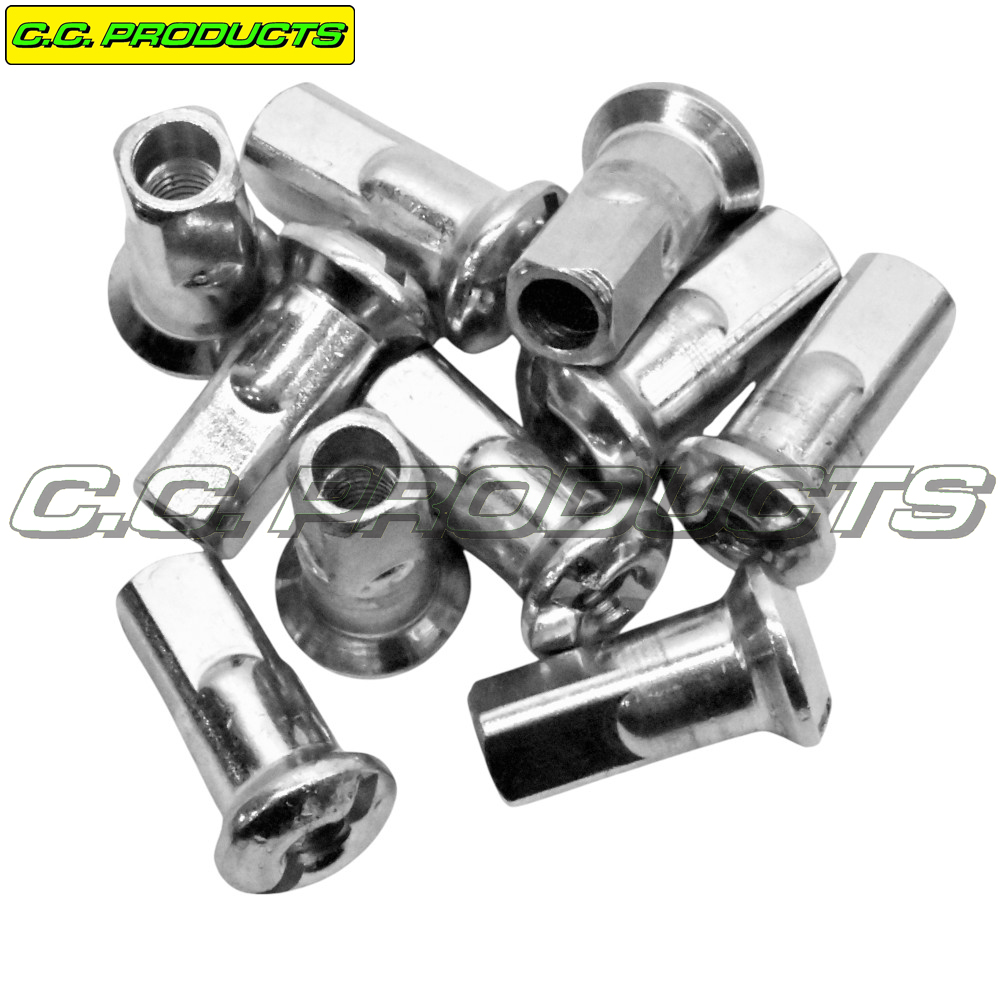

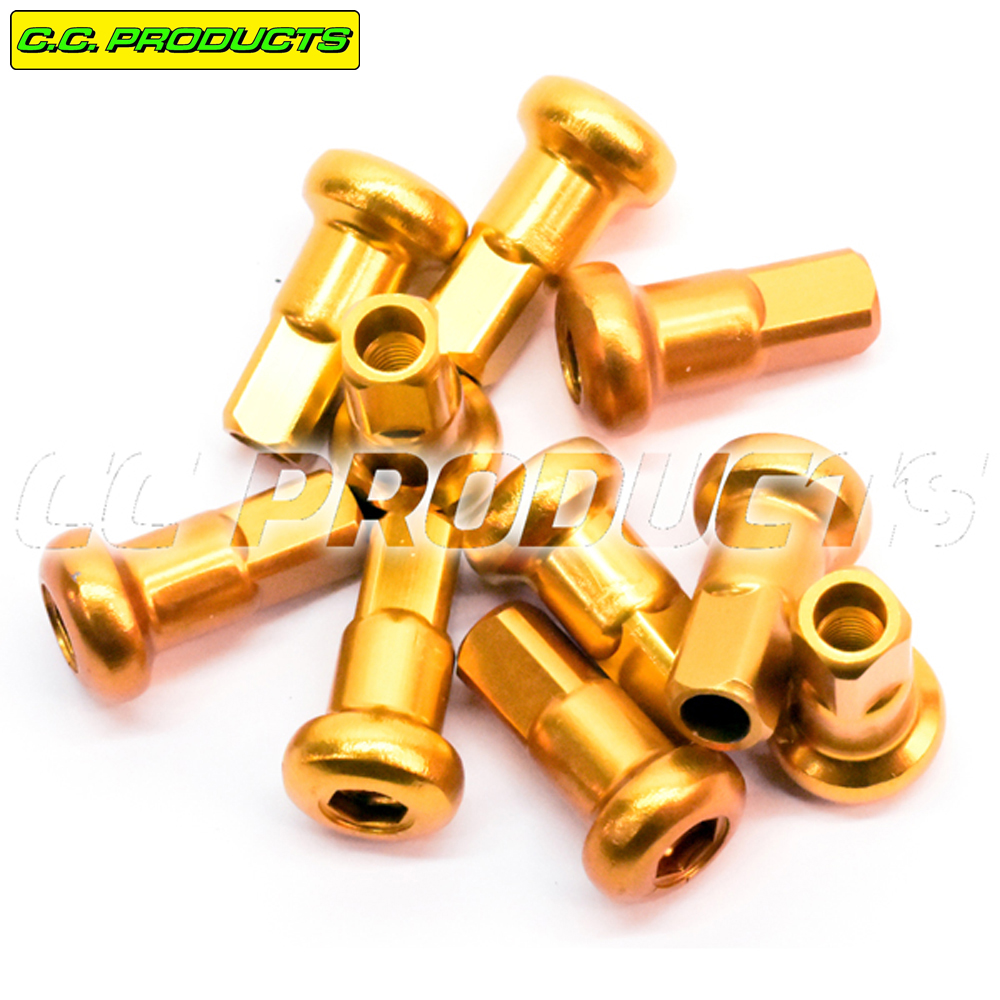

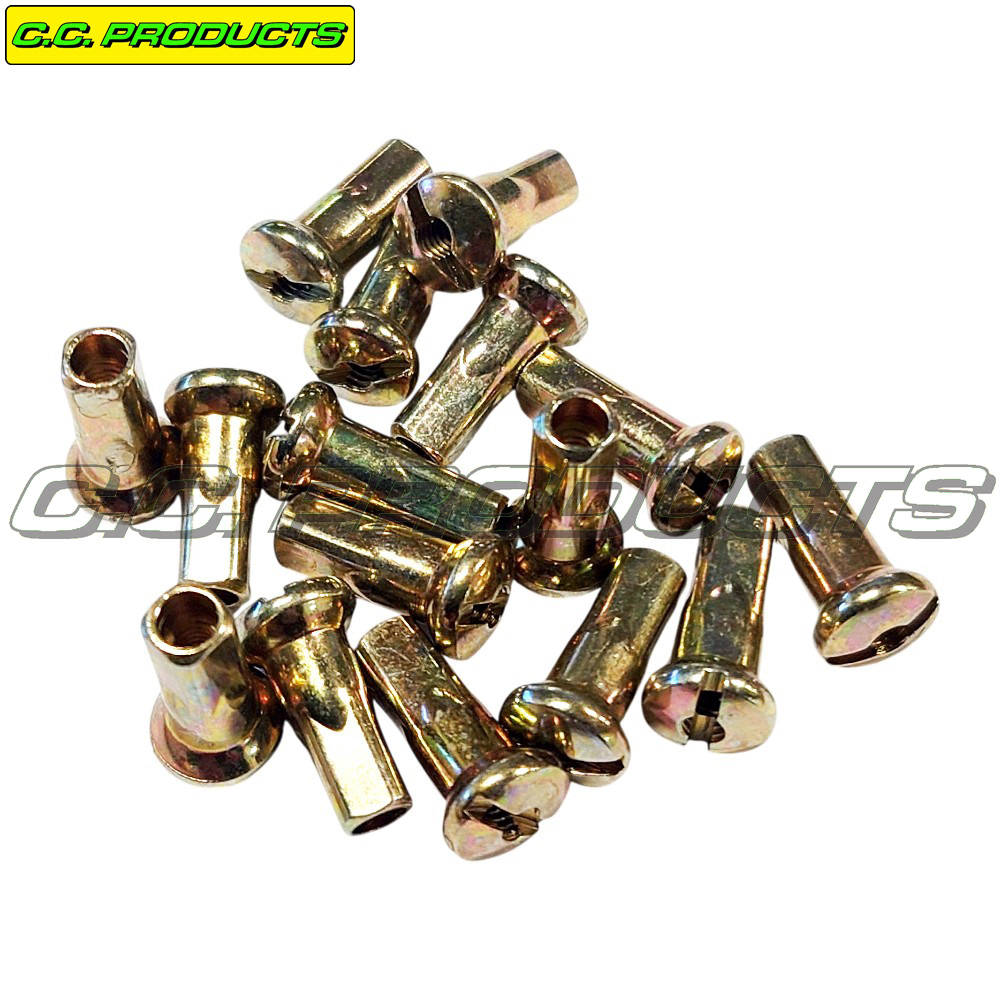

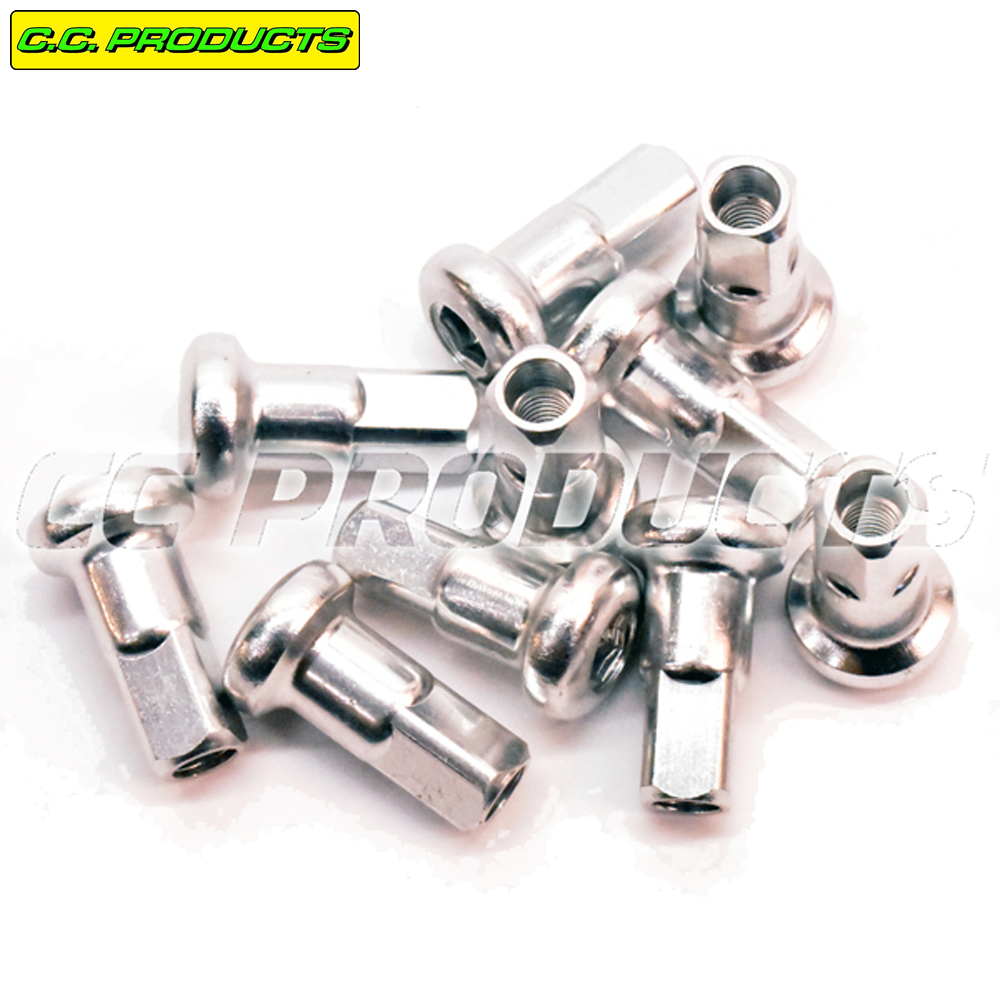

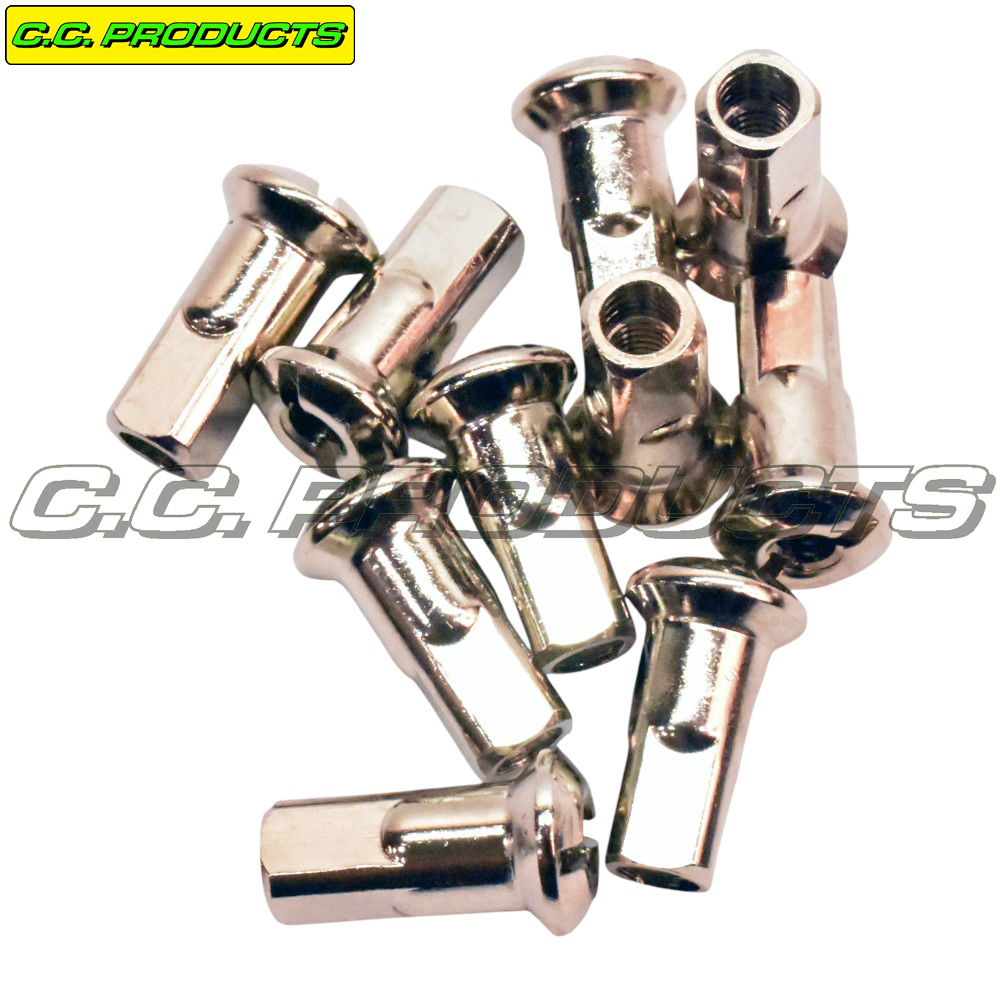

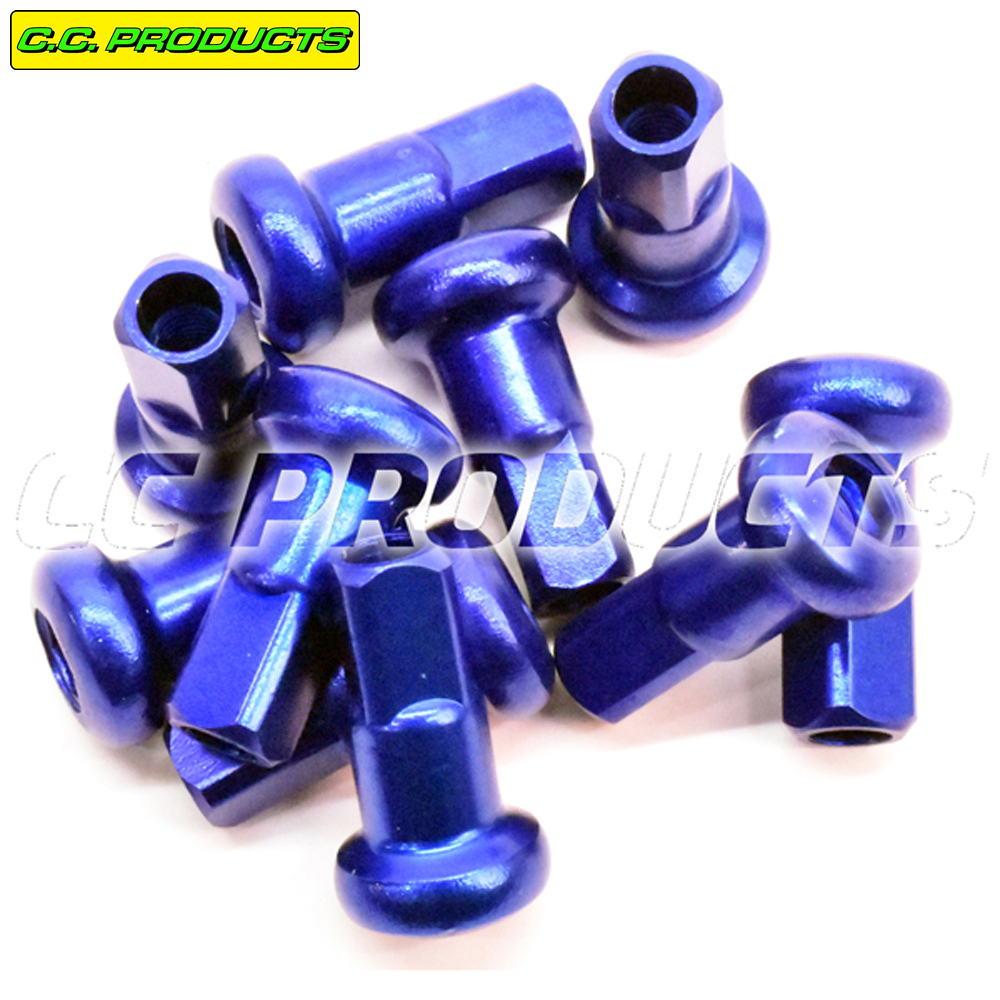

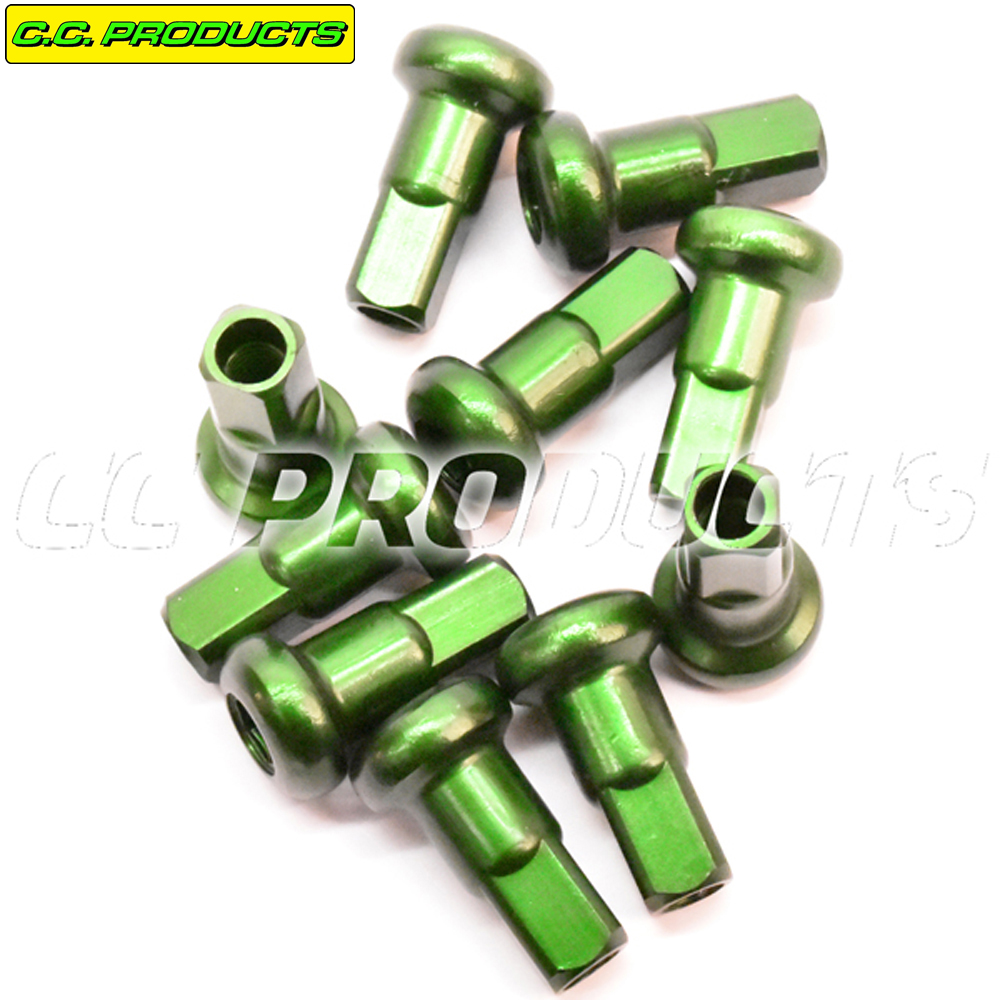

Nipple size: 7,6x20 mm. (8G/300)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 4x161 mm, have article number 50-0338-1
One spoke and nipple, 4x191 mm, have article number 50-0338-2
One spoke and nipple, 4x203 mm, have article number 50-0338-3
