Spoke Set Husqvarna WR 360 Automatic18-inch 1977 Rear Wheel
1,090 SEK per Set
CC Products spokes are made in our spoke machine in our own factory in Sweden. We use Swedish stainless steel spoke wire with a tensile strength of 1450 N/mm2 and a yield strength of 1250 N/mm2!
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
(Optional)
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 50-0364

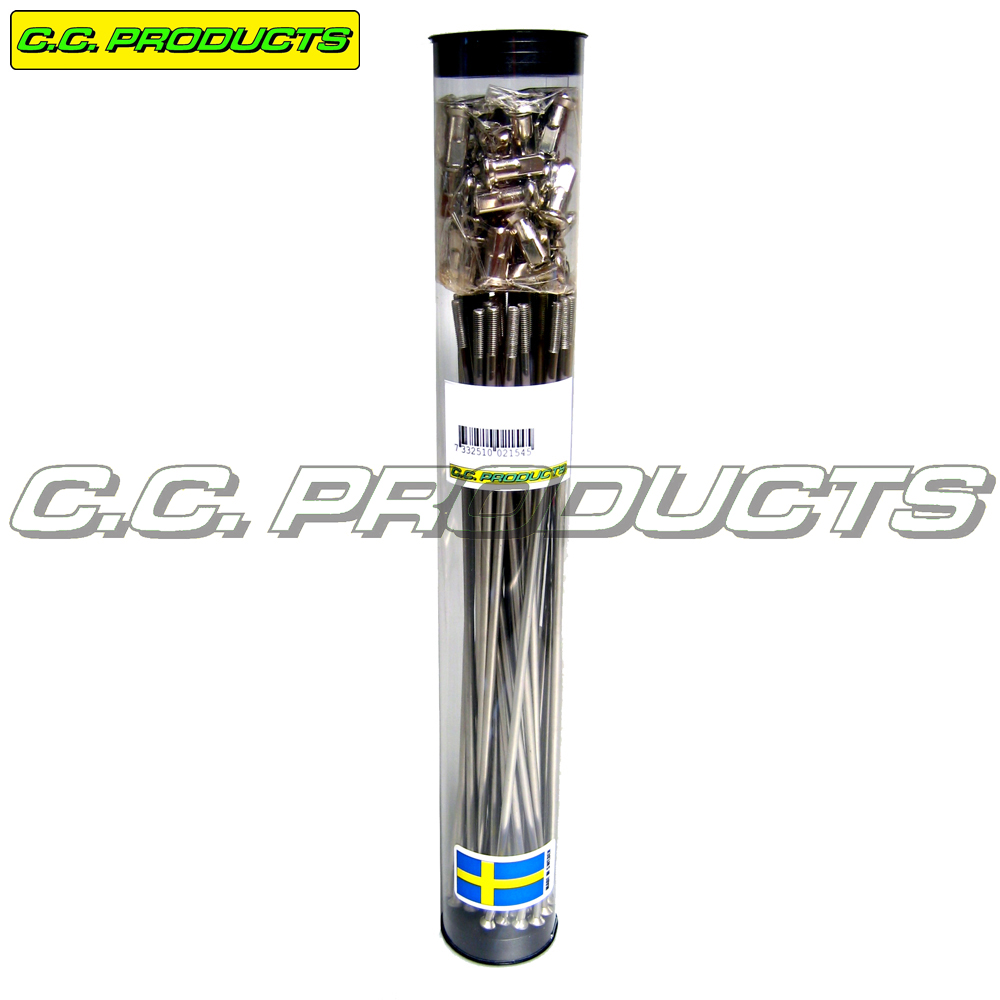

CC Products stainless spoke set
Fits the following models:
HUSQVARNA
CR 125 77-78
CR 250 77-78
CR 360 Automatic 1977
CR 390 77-78
OR 250 1978
OR 390 77-78
WR 250 77-78
WR 360 1977
WR 360 Automatic 1977
WR 390 77-78
For 18-inch rear wheel with hub 15 16 600-01.

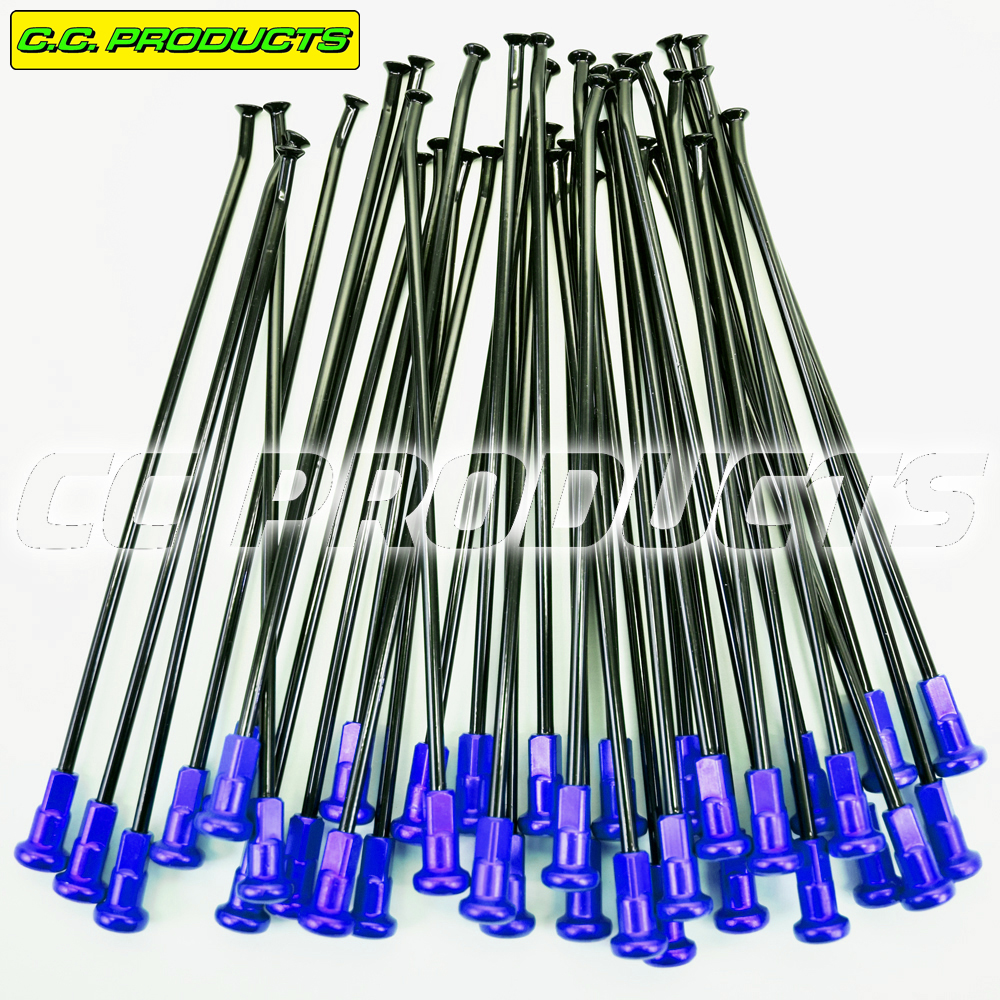

This spoke set has 36 spokes with spoke nipples.

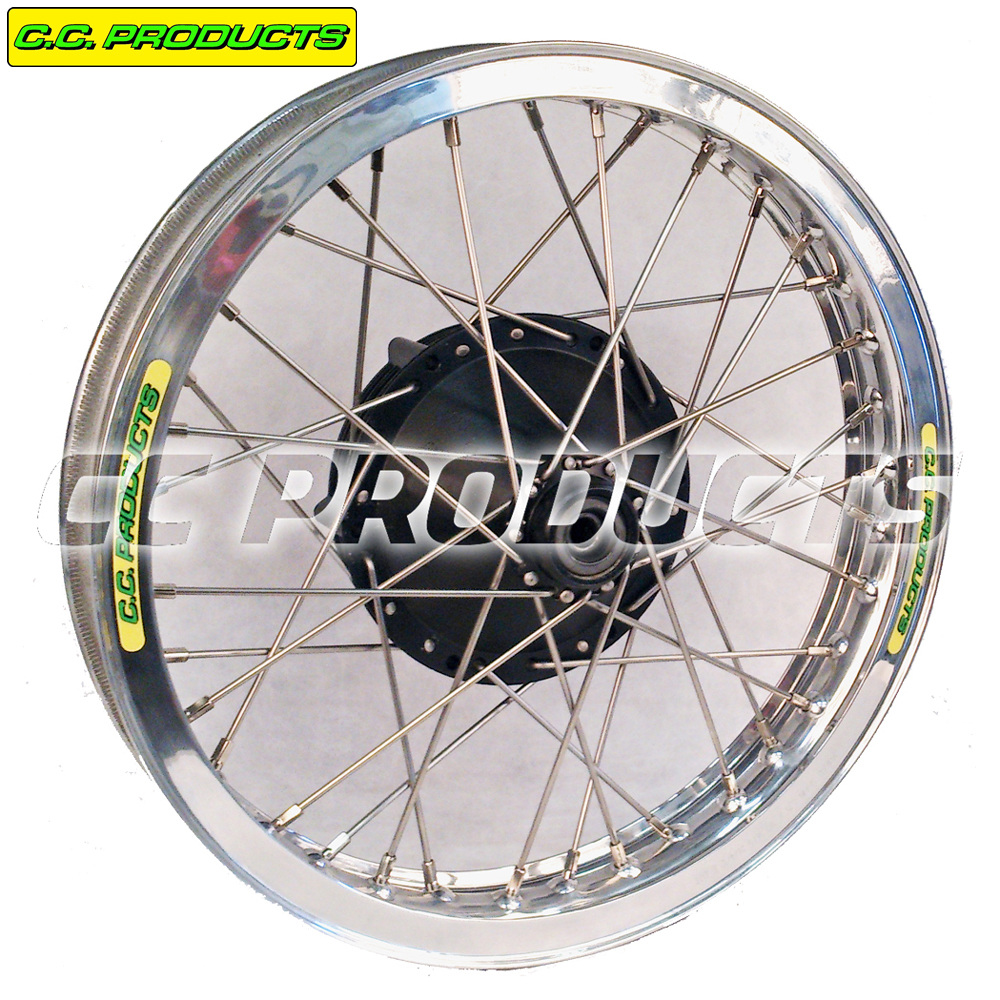

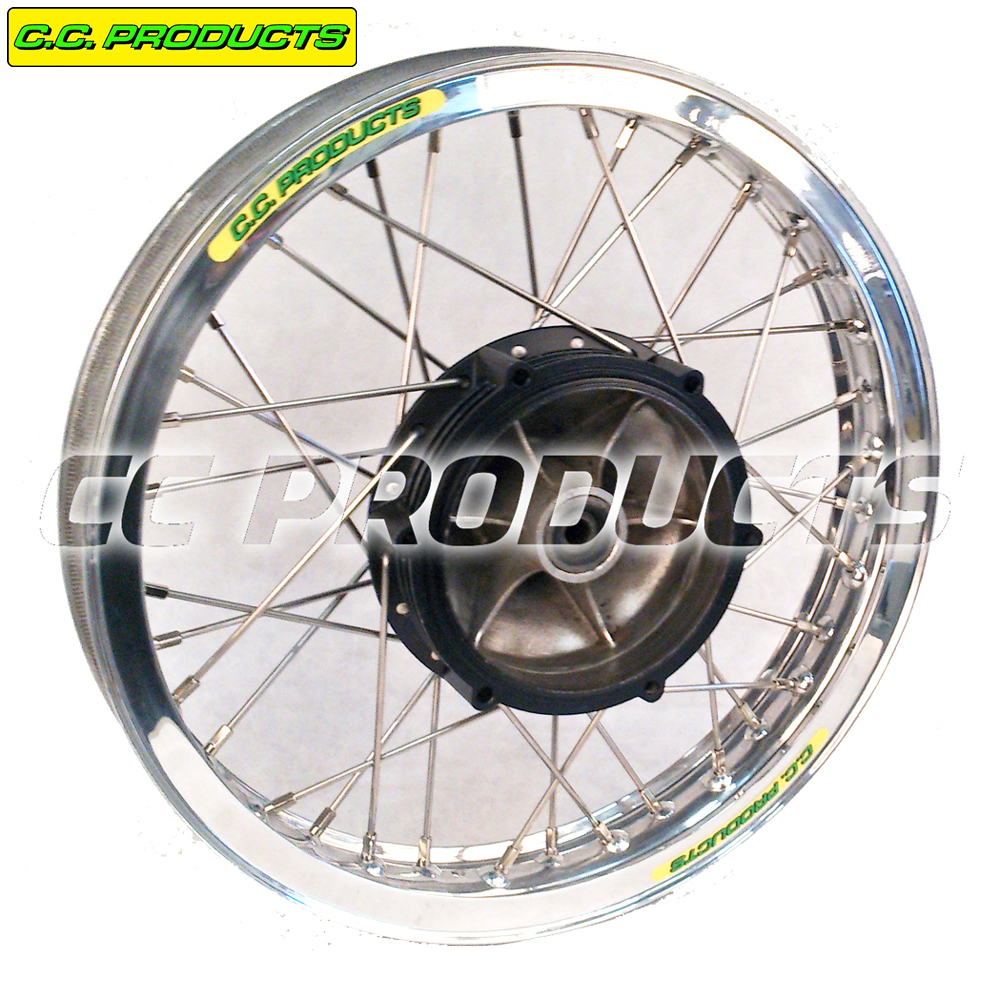

NOTE! This wheel have a very special lacing as you can see on the pictures below. On the sprocket side (right side) there are 2 long spokes and one short spoke used on both inner and outer side of the hub.
Spoke size: 6 spokes of 4x161 mm. Outer and inner spoke on right side.
OEM Ref. 15 16 049-14.
Spoke size: 12 spokes of 4x189 mm. Outer and inner spoke on right side.
OEM Ref. 15 16 049-01.
Spoke size: 18 spokes of 4x203 mm. Left side.
OEM Ref. 15 16 049-17.

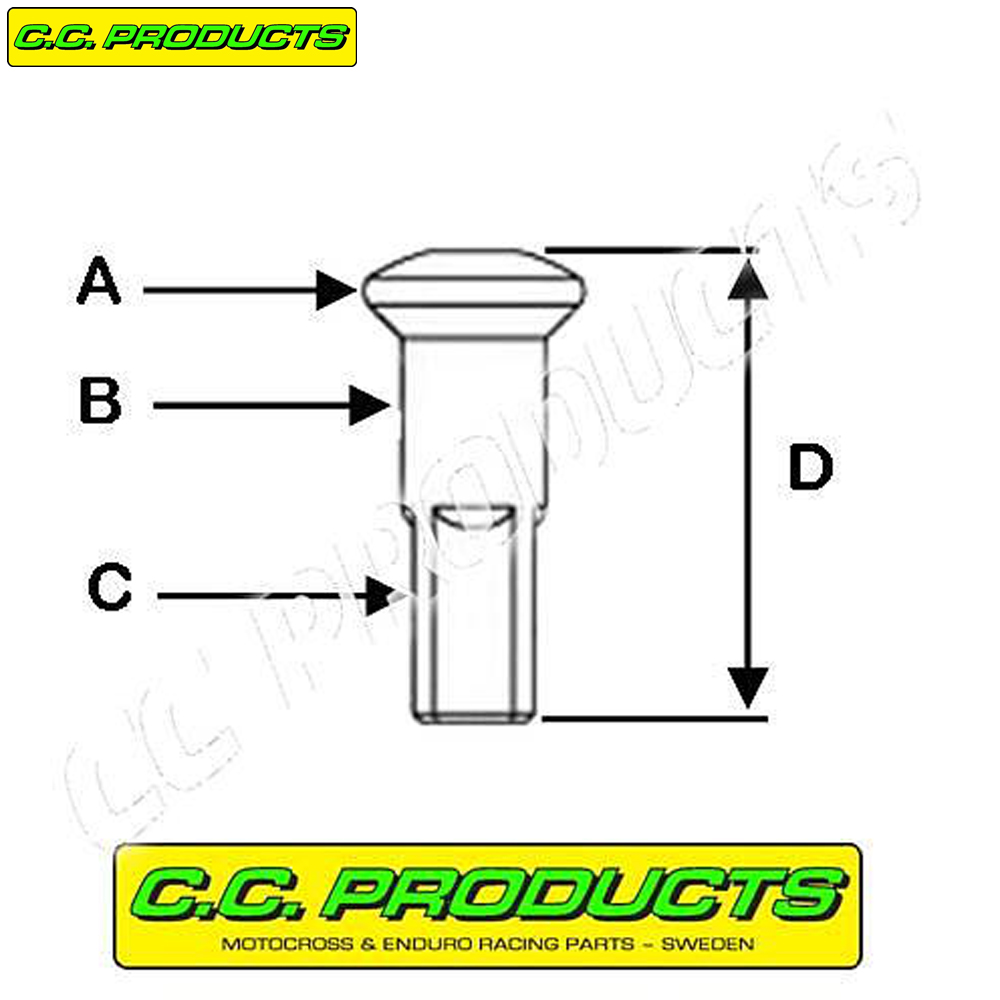

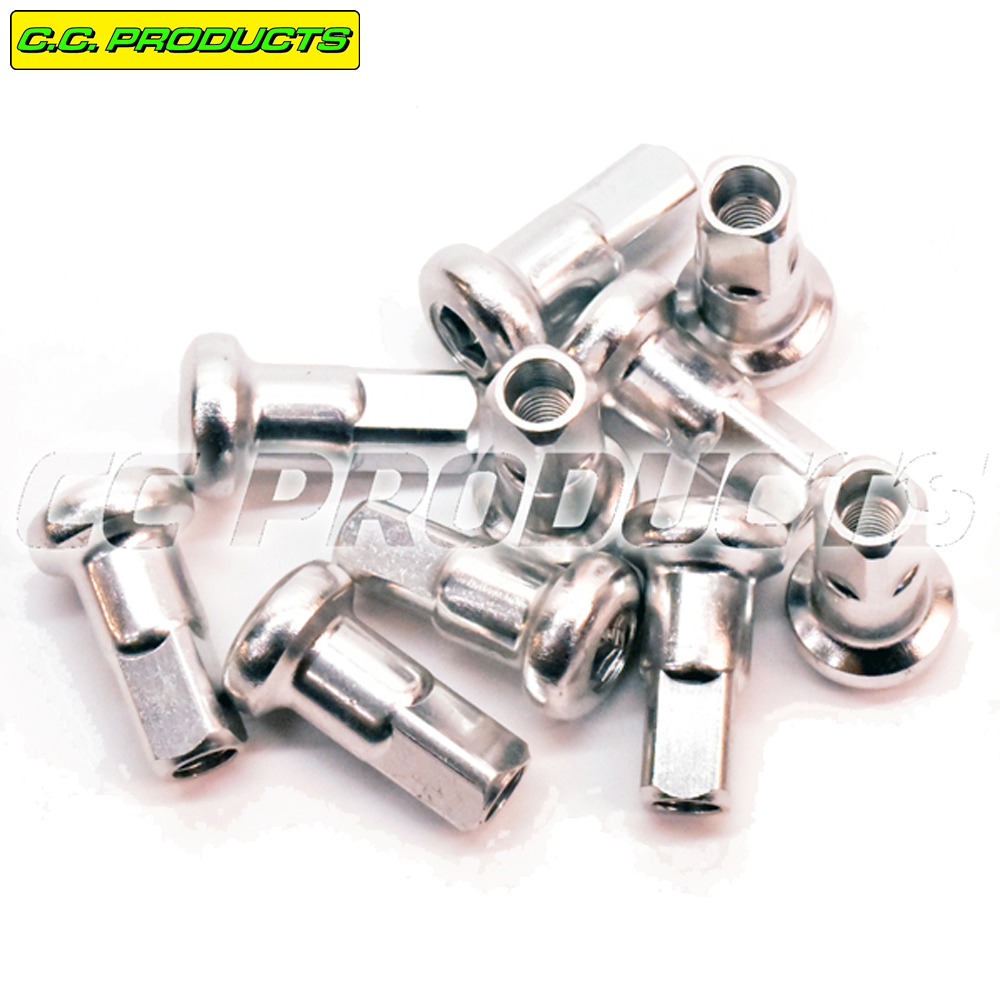

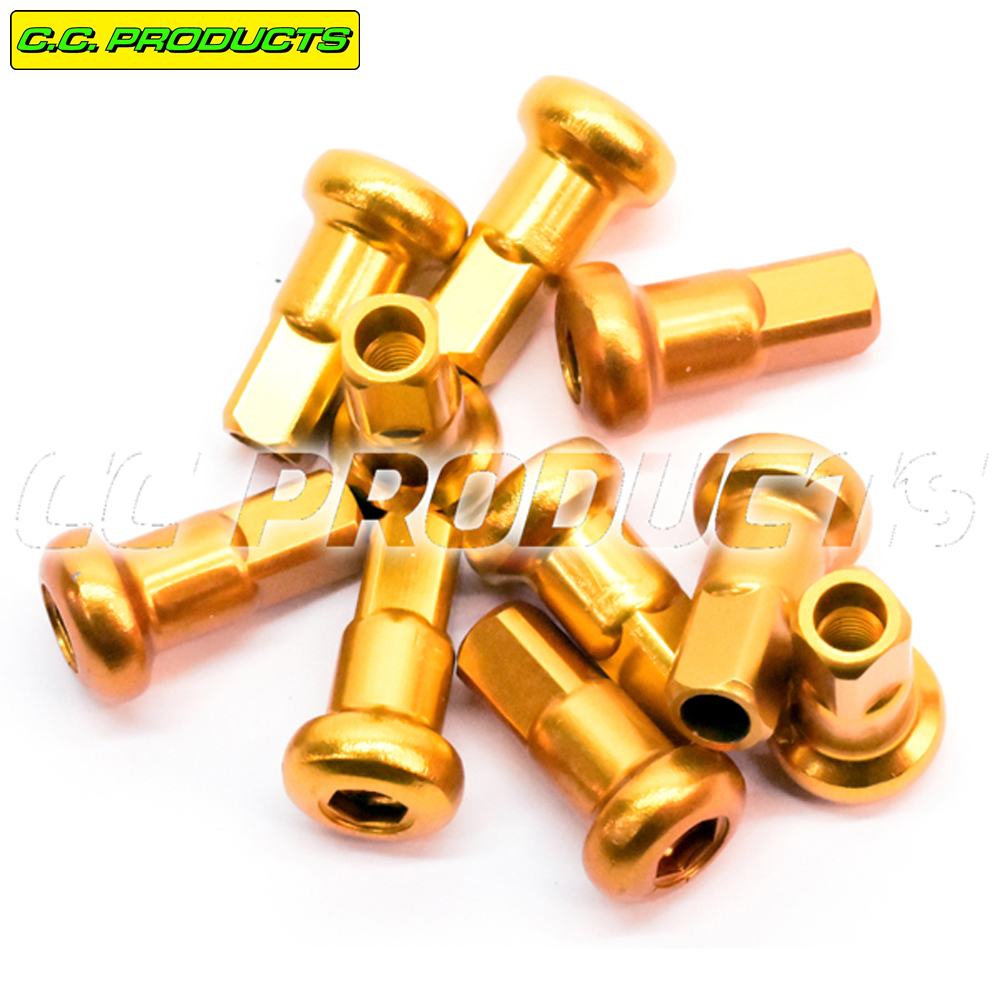

Nipple size: 7,6x20 mm. (8G/300)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 4x161 mm, have article number 50-0364-1
One spoke and nipple, 4x189 mm, have article number 50-0364-2
One spoke and nipple, 4x203 mm, have article number 50-0364-3
