Spoke Set Kawasaki KLR 650 Traveller 17-inch 22- Rear Wheel
1,090 SEK per Set
CC Products spokes are made in our spoke machine in our own warehouse in Sweden. We use Swedish stainless steel spoke wire with a tensile strength of 1450 N/mm2 and a yield strength of 1250 N/mm2!
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
(Optional)
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 50-0245
CC Products stainless spoke set
Fits the following models:
KAWASAKI
KL 500 87-89
KL 500 Tengai 89-90
KL 650 87-07
KL 650 Tengai 89-90
KLE 250 1997
KLE 500 91-07
KLR 500 87-90
KLR 650 87-18
KLR 650 S 23-
KLR 650 Adventure 22-
KLR 650 Traveller 22-
For 17x2,50 rear wheel with hub 41034-1154, 41034-0041-21 and 41034-0609.

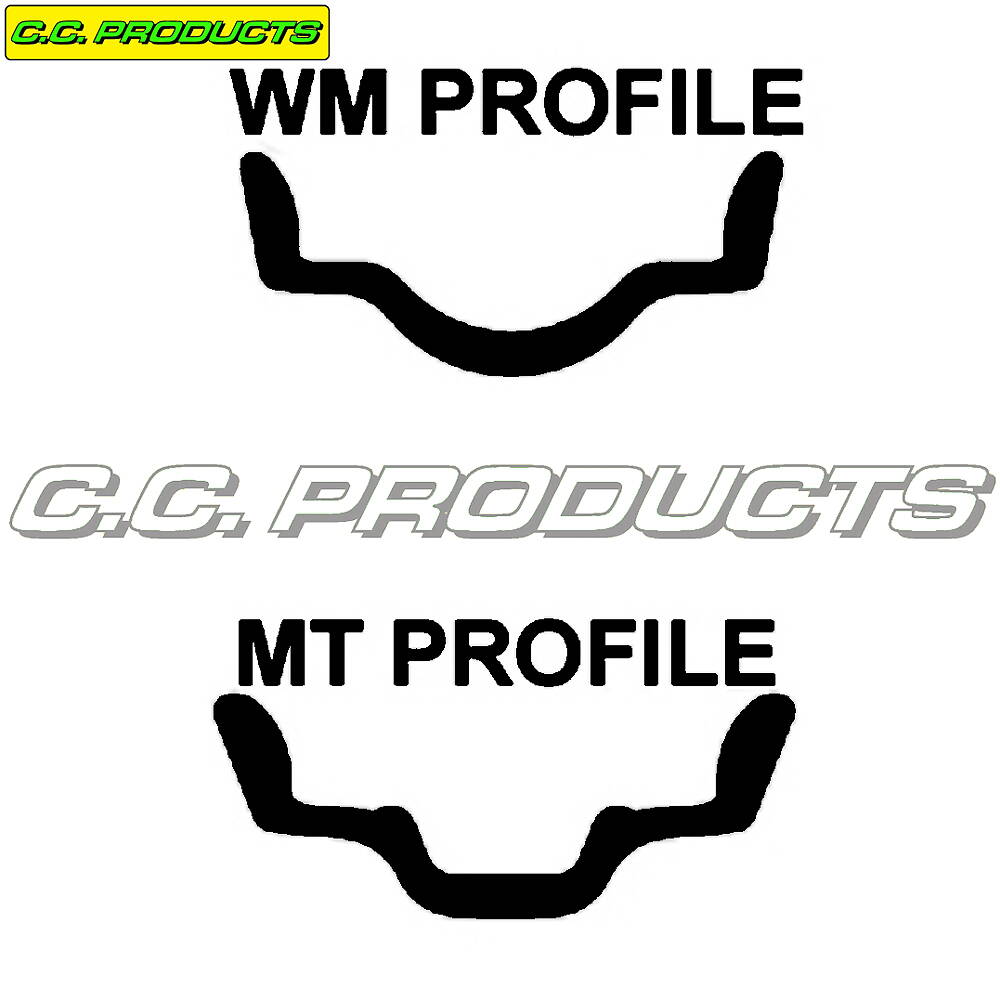

NOTE! For original rim or other rim with MT profile, see picture.
This spoke set has 36 spokes with spoke nipples.
Spoke size: 18 spokes of 155 mm, sprocket side.
OEM Ref. 41029-1167 replaced by 41029-1345, 41029-0033 and 41029-1167.
Spoke size: 18 spokes of 178 mm, disc side.
OEM Ref. 41029-1168 replaced 41029-1346, 41029-0034 and 41029-0068.
This spoke set is available in both 3,6 mm and 4 mm.
17x2,50 Excel MT rim with article number 58-779 fits this spoke set.
Nipple size: 7,0x20 mm. (275)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 3,6x155 mm, have article number 50-0245-1
One spoke and nipple, 3,6x178 mm, have article number 50-0245-2
One spoke and nipple, 4x155 mm, have article number 50-0245H-1
One spoke and nipple, 4x178 mm, have article number 50-0245H-2
