Spoke Set Kawasaki KX 125 21-inch 78-81 Front Wheel
1,090 SEK per Set
CC Products spokes are made in our spoke machine in our own warehouse in Sweden. We use Swedish stainless steel spoke wire with a tensile strength of 1450 N/mm2 and a yield strength of 1250 N/mm2!
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
(Optional)
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 50-0575
CC Products stainless spoke set
Fits the following models:
KAWASAKI
KDX 175 80-82
KLX 250 79-80
KX 125 78-81

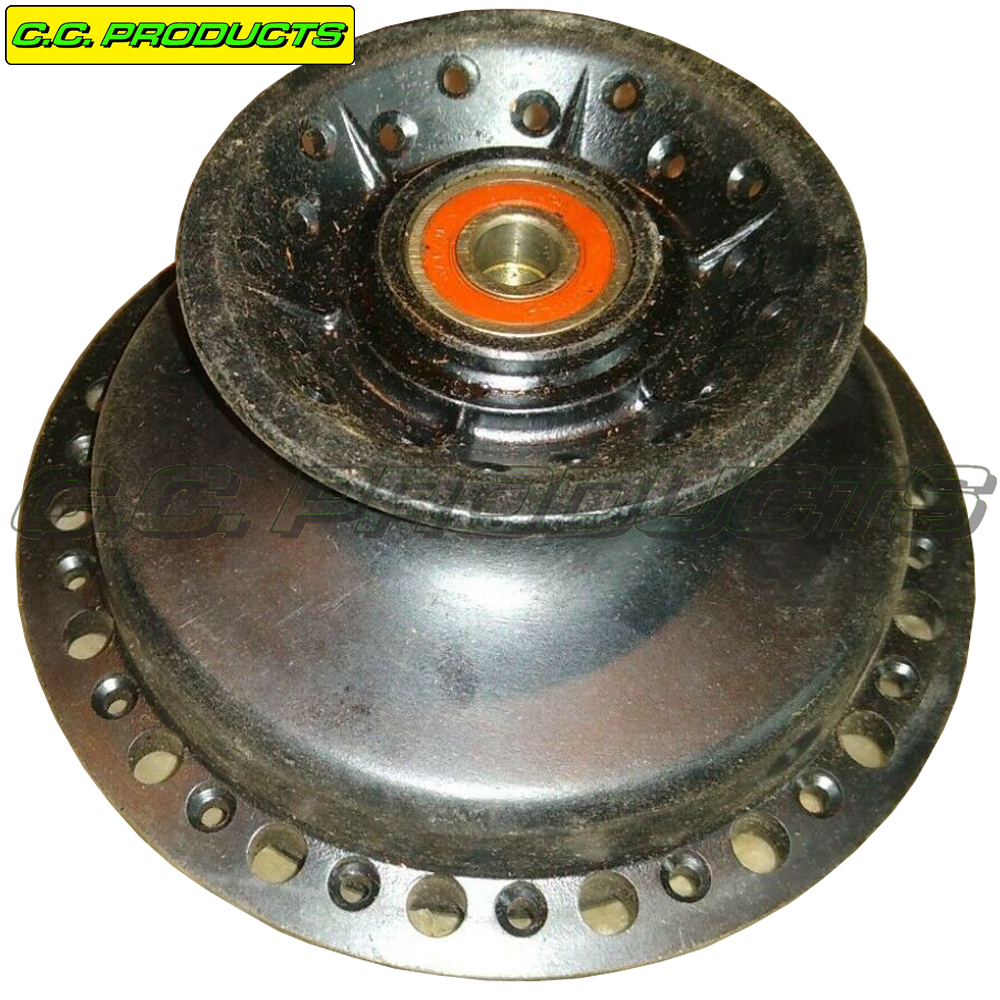

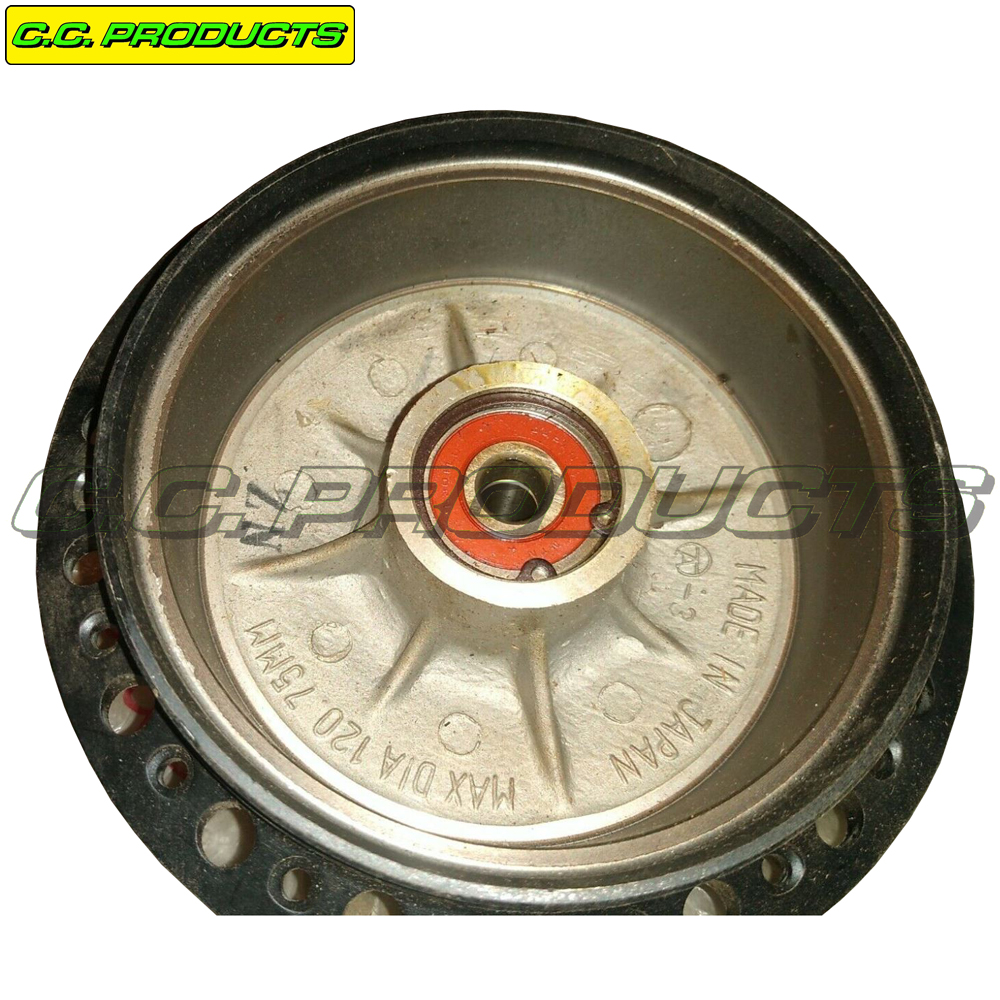

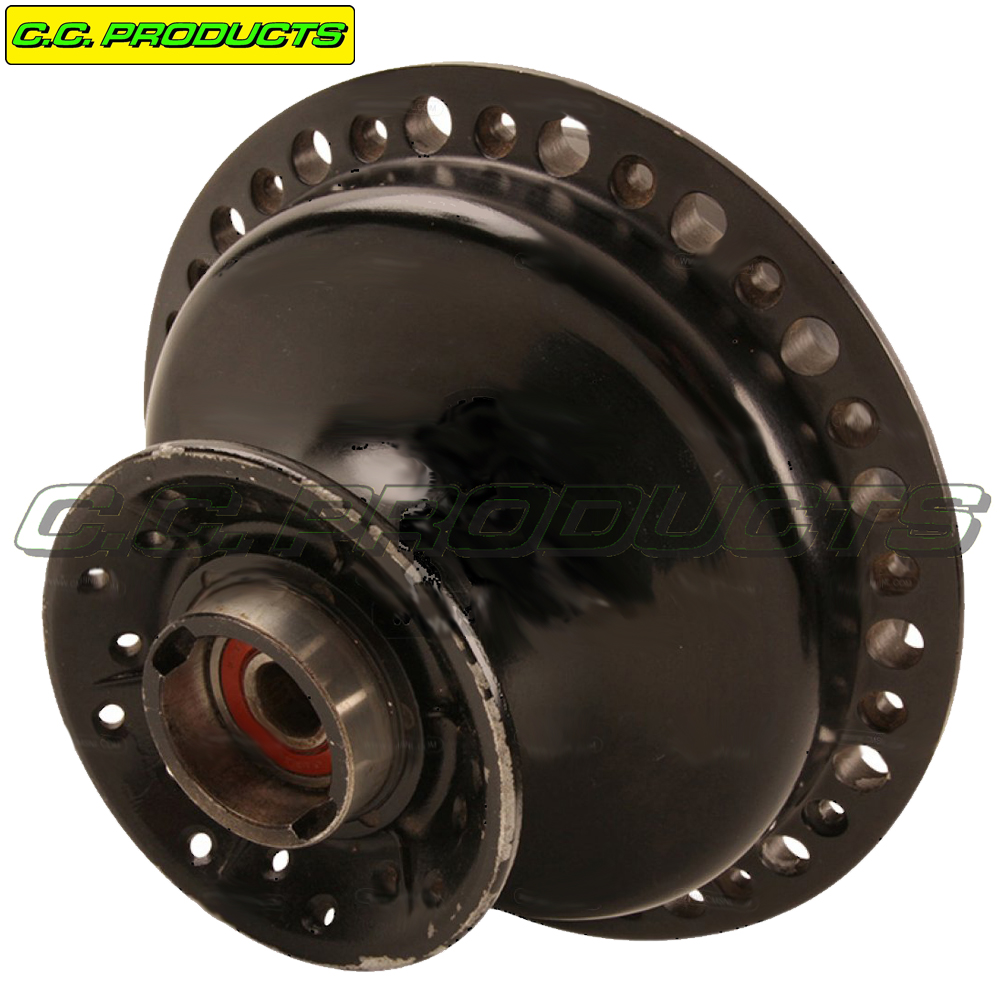

For 21-inch front wheel with hub 41034-1016 and 41034-031-21 replaced by 41034-1009-21, see pictures.
This spoke set has 36 spokes with spoke nipples.
Spoke size: 9 of 3,6x201 mm. Outer brake side.
OEM Ref. 41028-1004 replaced by 41030-1016.
Spoke size: 9 of 3,6x203 mm. Inner brake side.
OEM Ref. 41027-1005 replaced by 41029-1019.
Spoke size: 18 of 3,6x229 mm. Small side.
OEM Ref. 41027-1006 replaced by 41029-1020.
Nipple size: 7,0x20 mm. (9G/275)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 3,6x201 mm, have article number 50-0575-1
One spoke and nipple, 3,6x203 mm, have article number 50-0575-2
One spoke and nipple, 3,6x229 mm, have article number 50-0575-3
