Spoke Set KTM 690 Rally 17-inch 07-10 Rear Wheel
1,090 SEK per Set
CC Products spokes are made in our spoke machine in our own factory in Sweden. We use Swedish stainless steel spoke wire with a tensile strength of 1450 N/mm2 and a yield strength of 1250 N/mm2!
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
(Optional)
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 50-0396

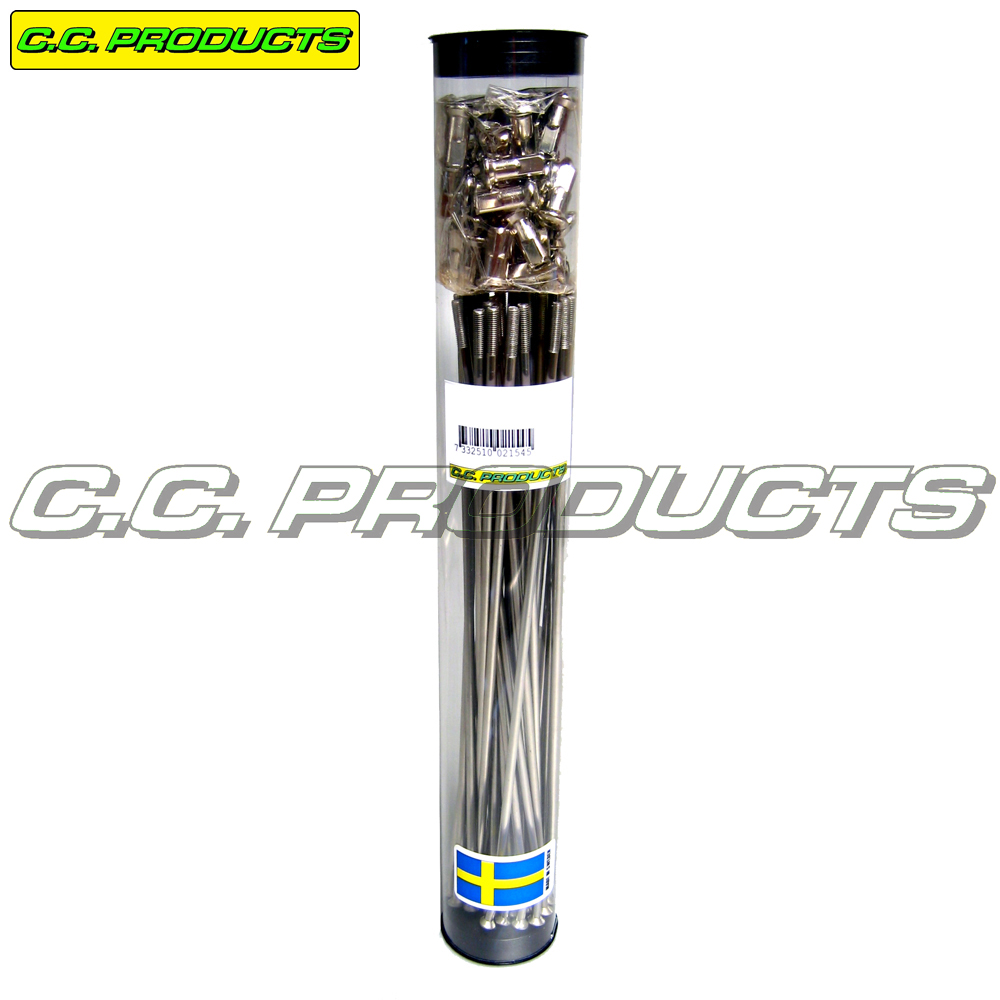

CC Products stainless spoke set
Fits the following models:
KTM
450 Rally Factory Replica 11-14
690 Enduro 08-10
690 Enduro R 09->
690 Rally 07-10
690 Supermoto 08-10
690 SMC 08->
HUSABERG
FS 570 10-11
HUSQVARNA
701 Enduro 16-
701 Supermoto 16-

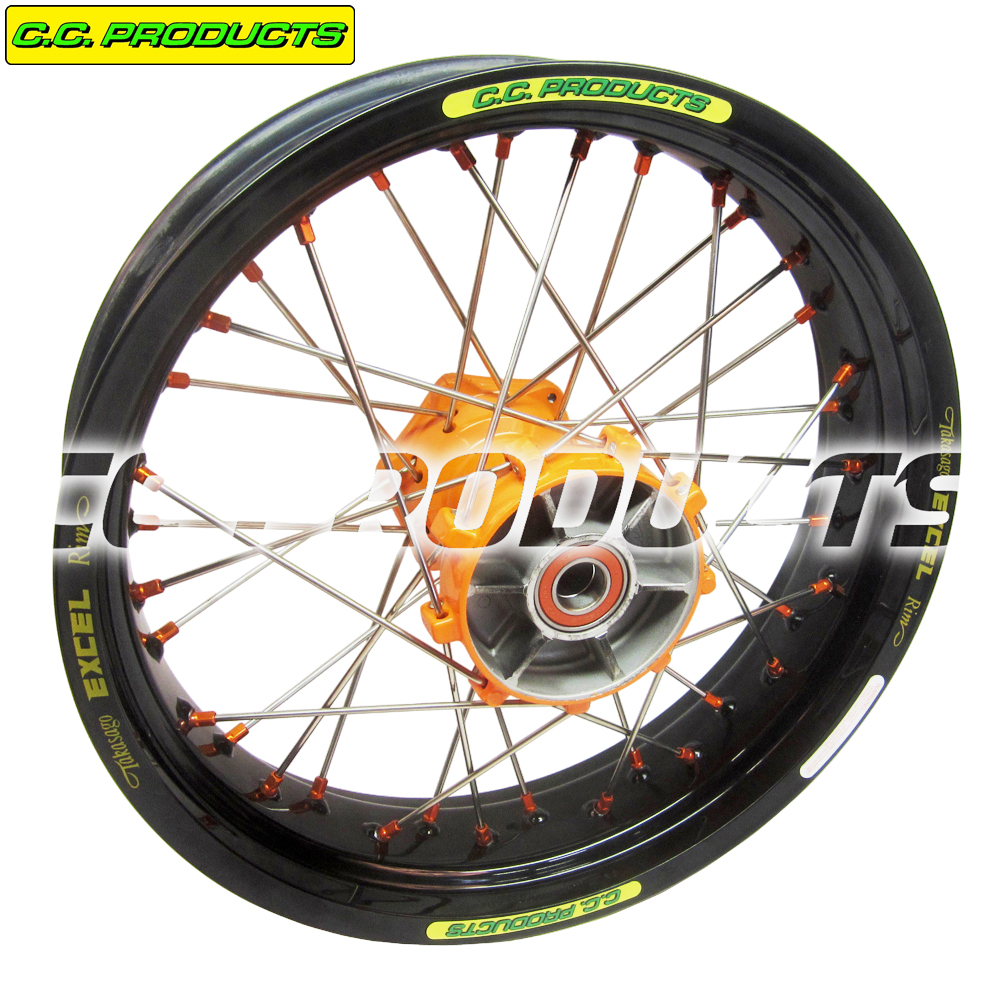

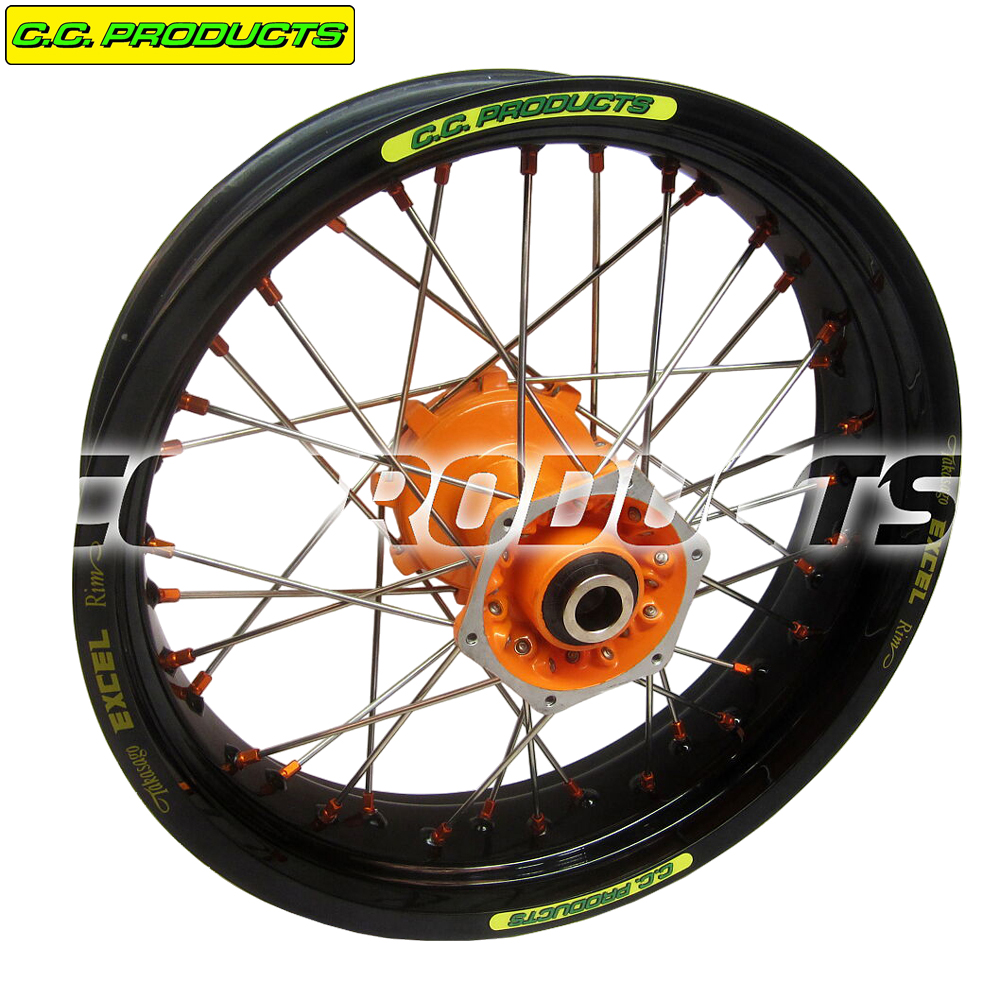

For 17x4.25, 17x4.50 and 17x5.00 rear wheel with standard rim.

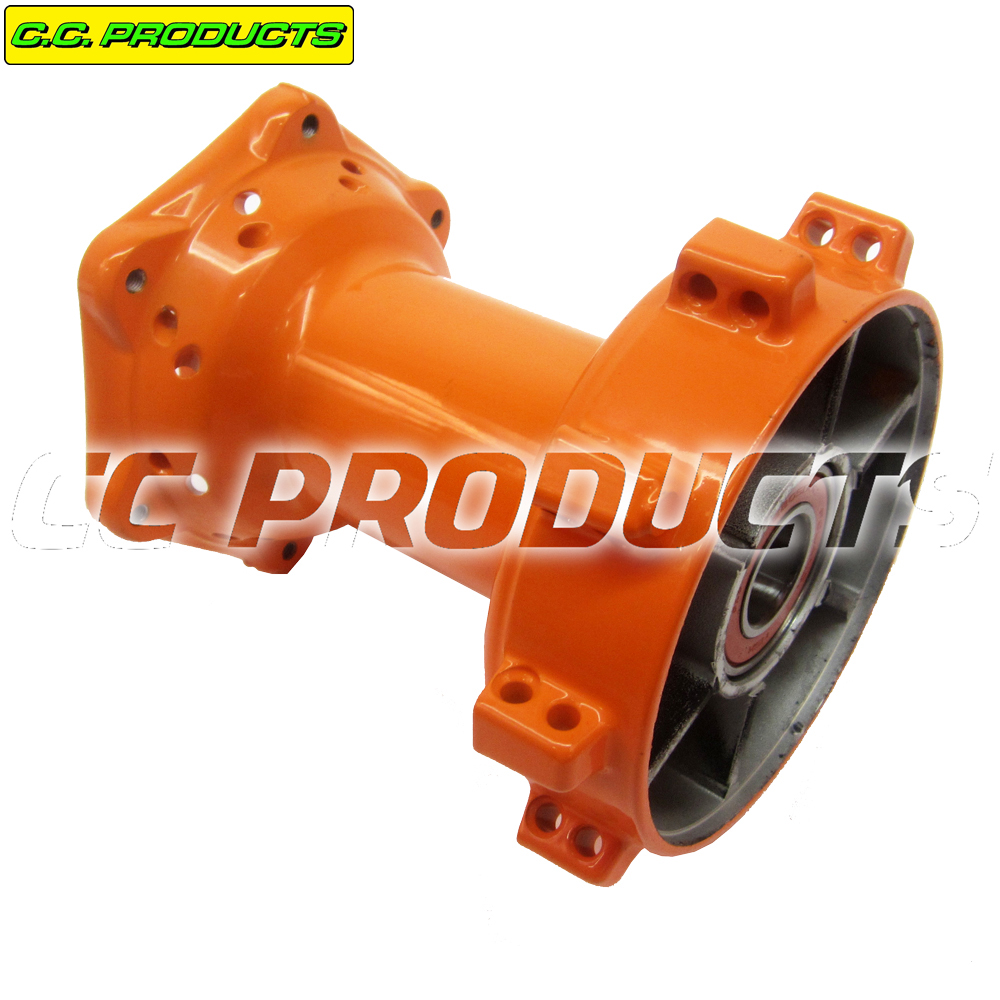

For silver hub 7531001004491 or black hub 7531001004433.
If you have an original tubeless rim you should use spoke set 50-0320.

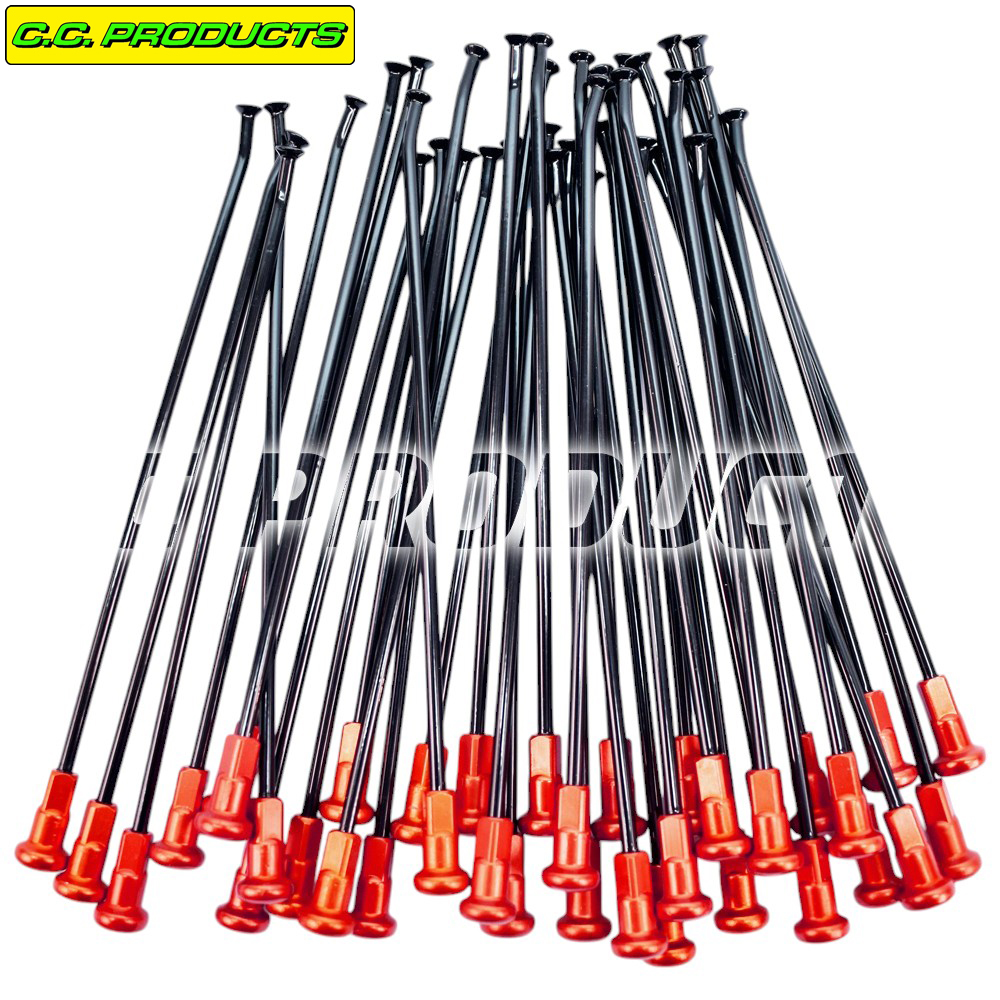

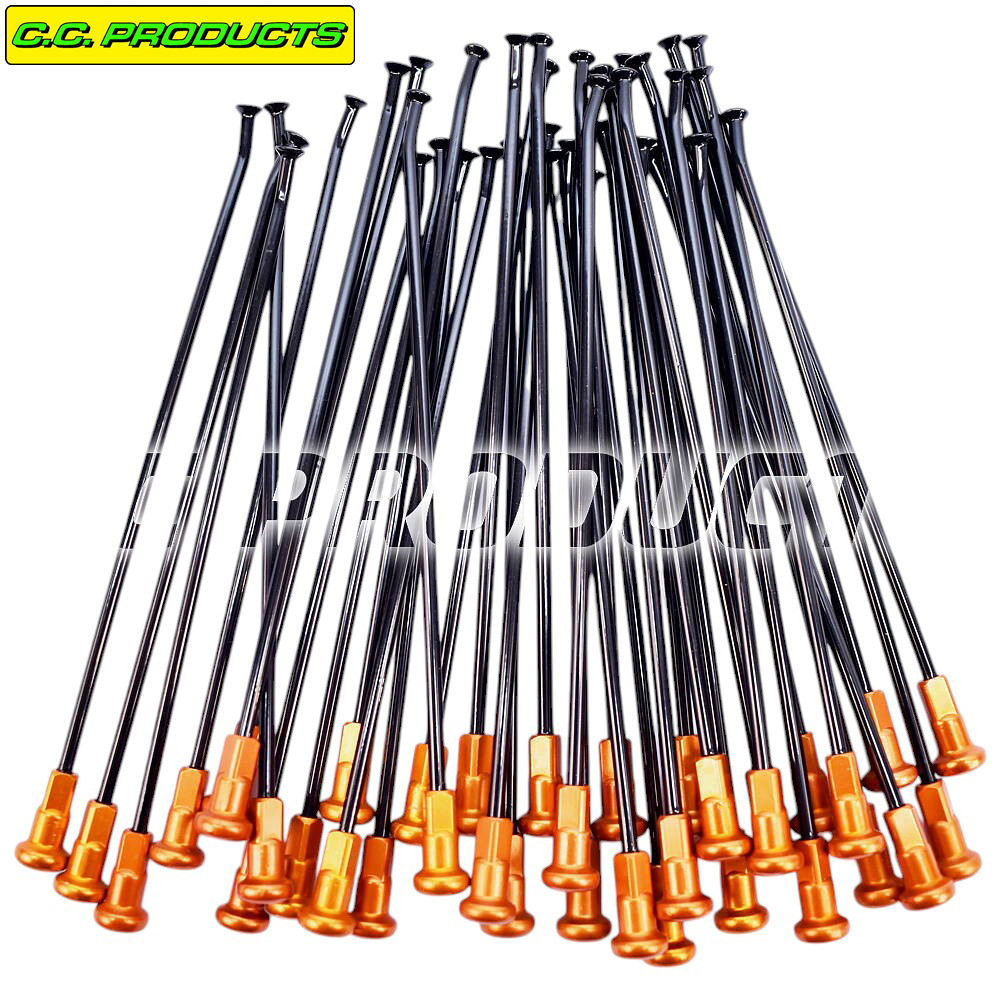

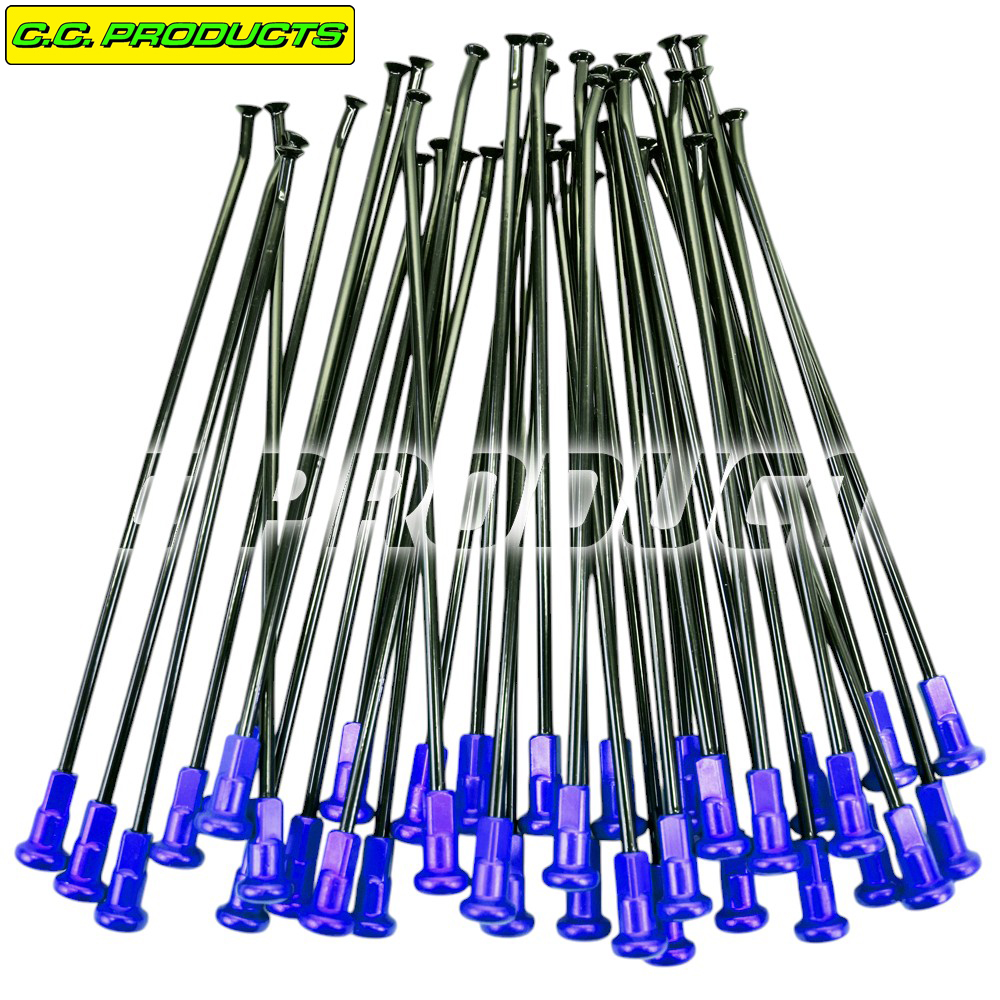

This spoke set has 36 spokes with spoke nipples.
Spoke size: 18 spokes 4x188 mm. Disc side.
OEM Ref. 75010173188.
Spoke size: 18 spokes 4x199 mm. Sprocket side.
OEM Ref. 75010073199.
17x4,50 Excel rim with article number 58-726 fits this spoke set.
17x5,00 Excel rim with article number 58-861 fits this spoke set.

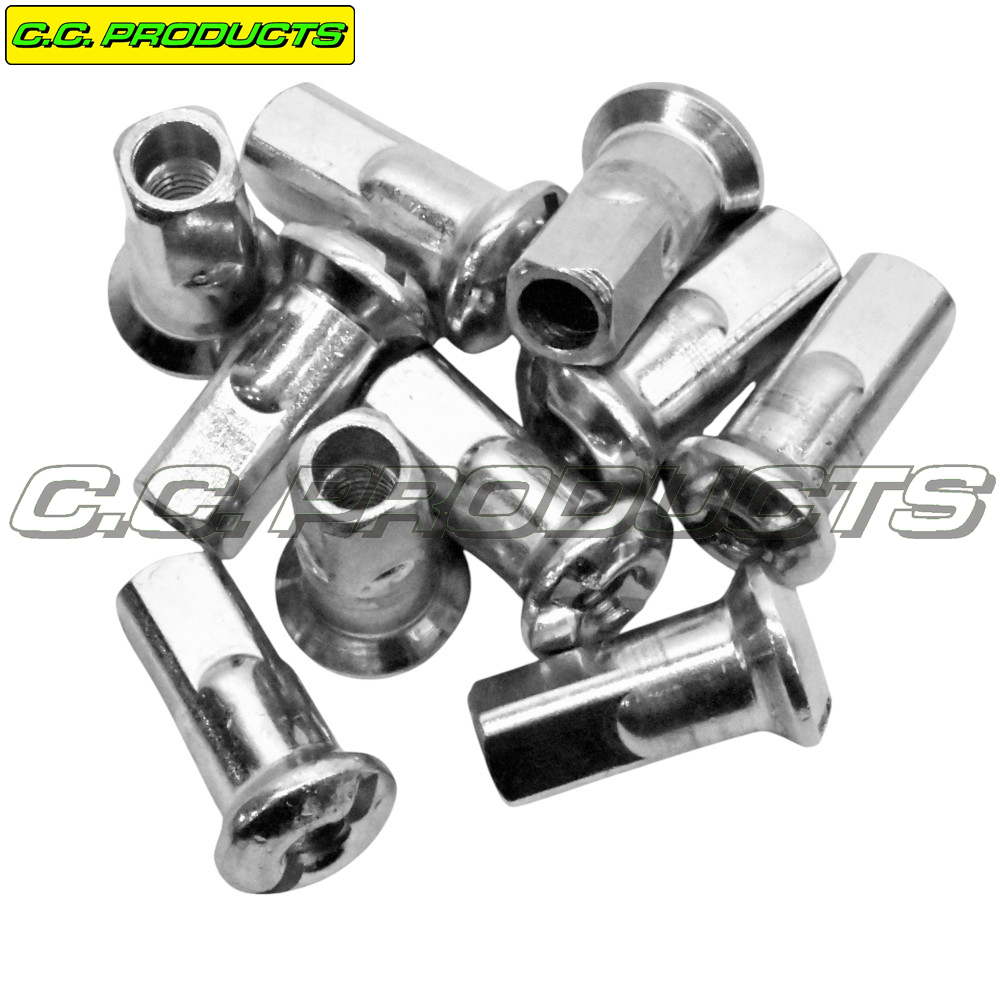

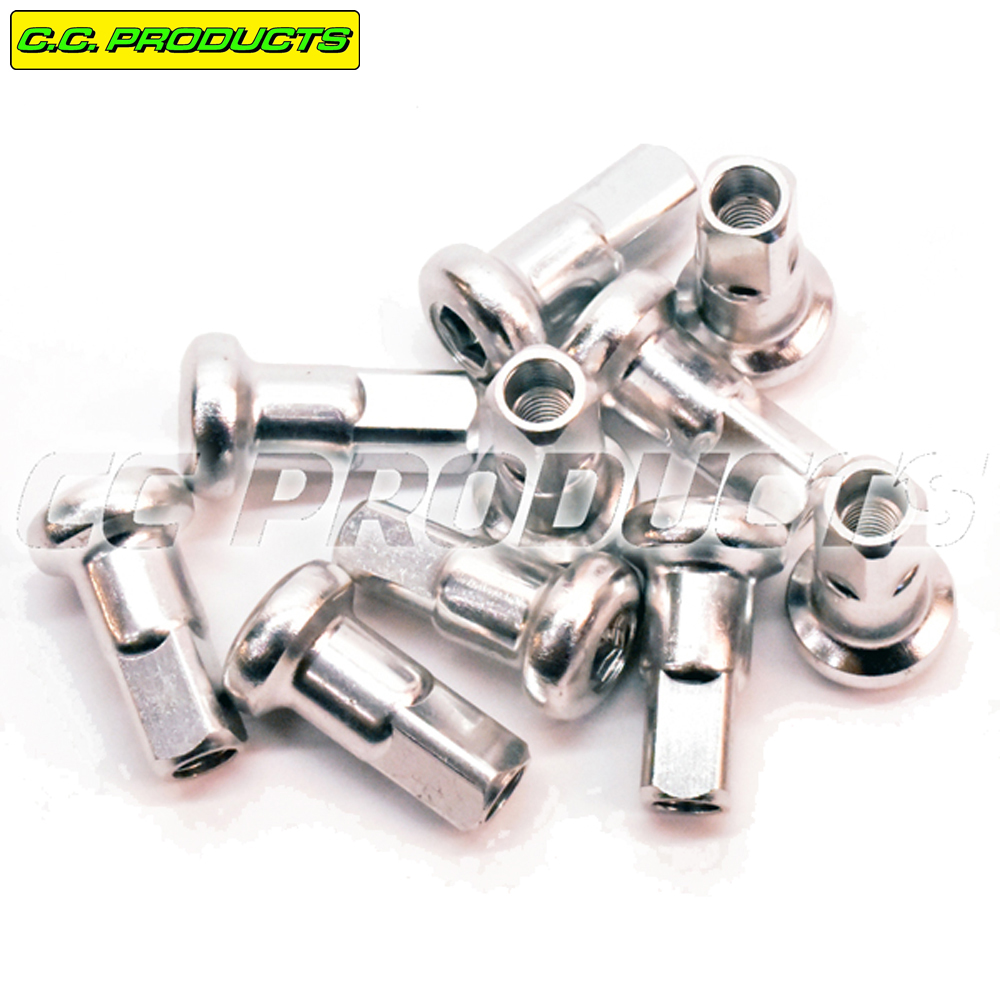

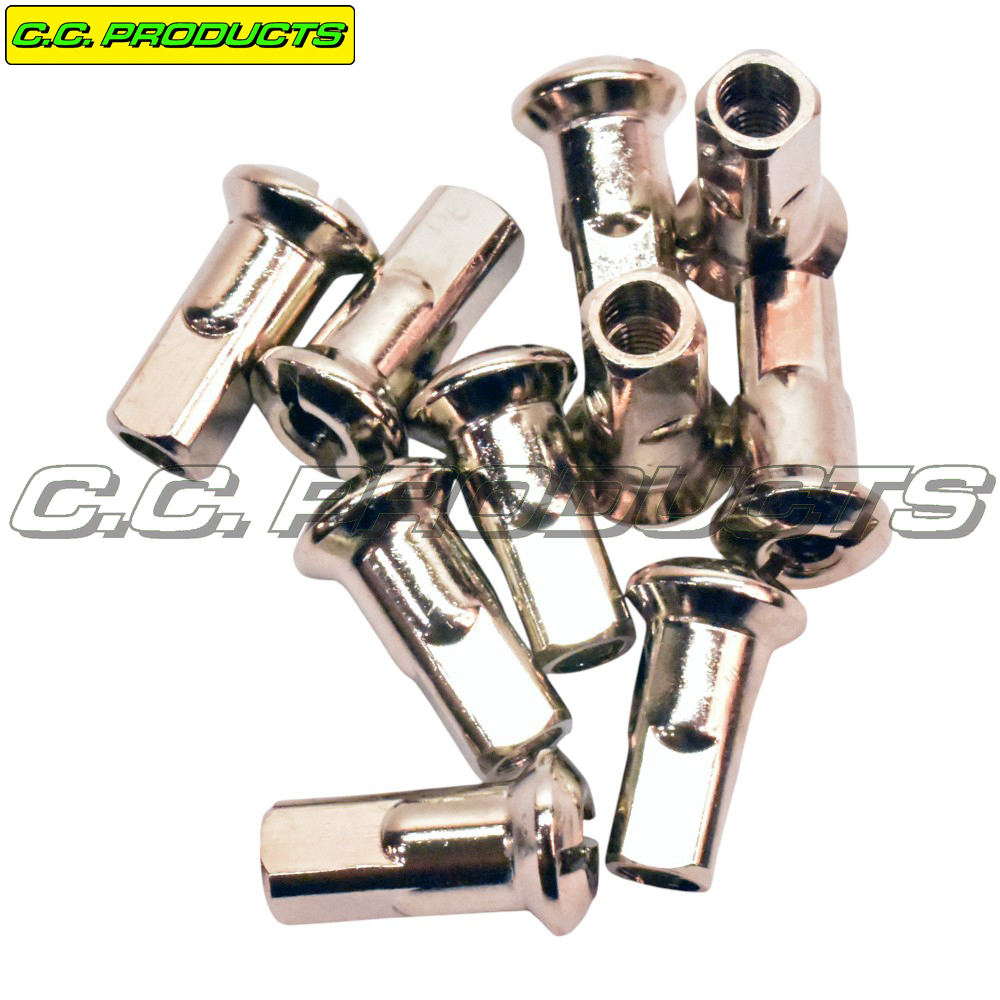

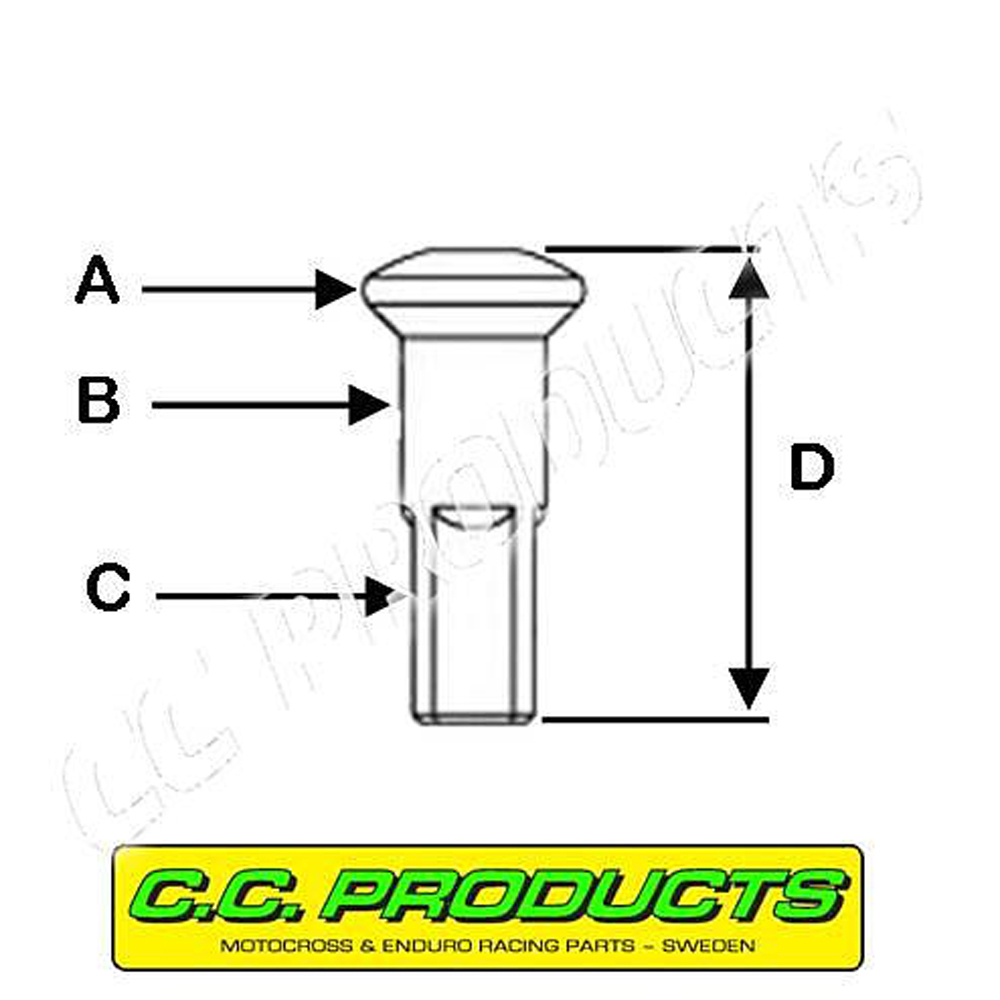

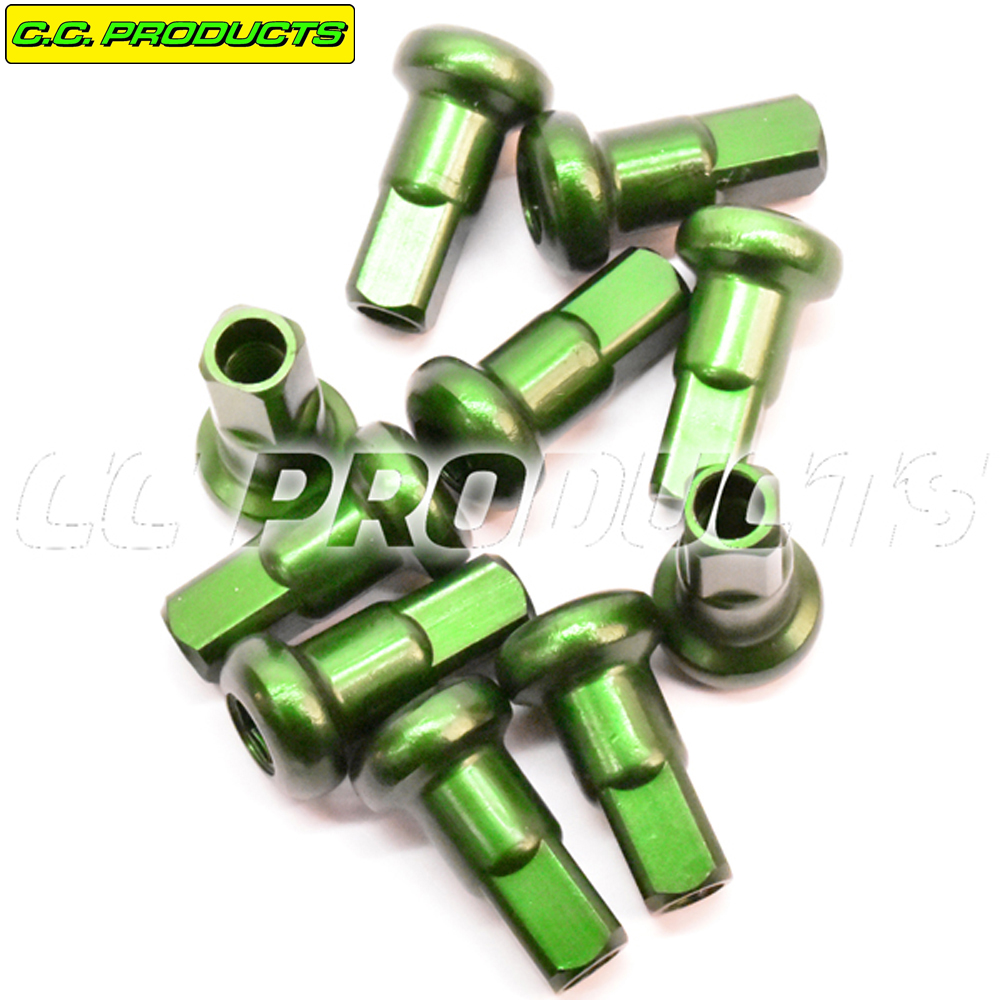

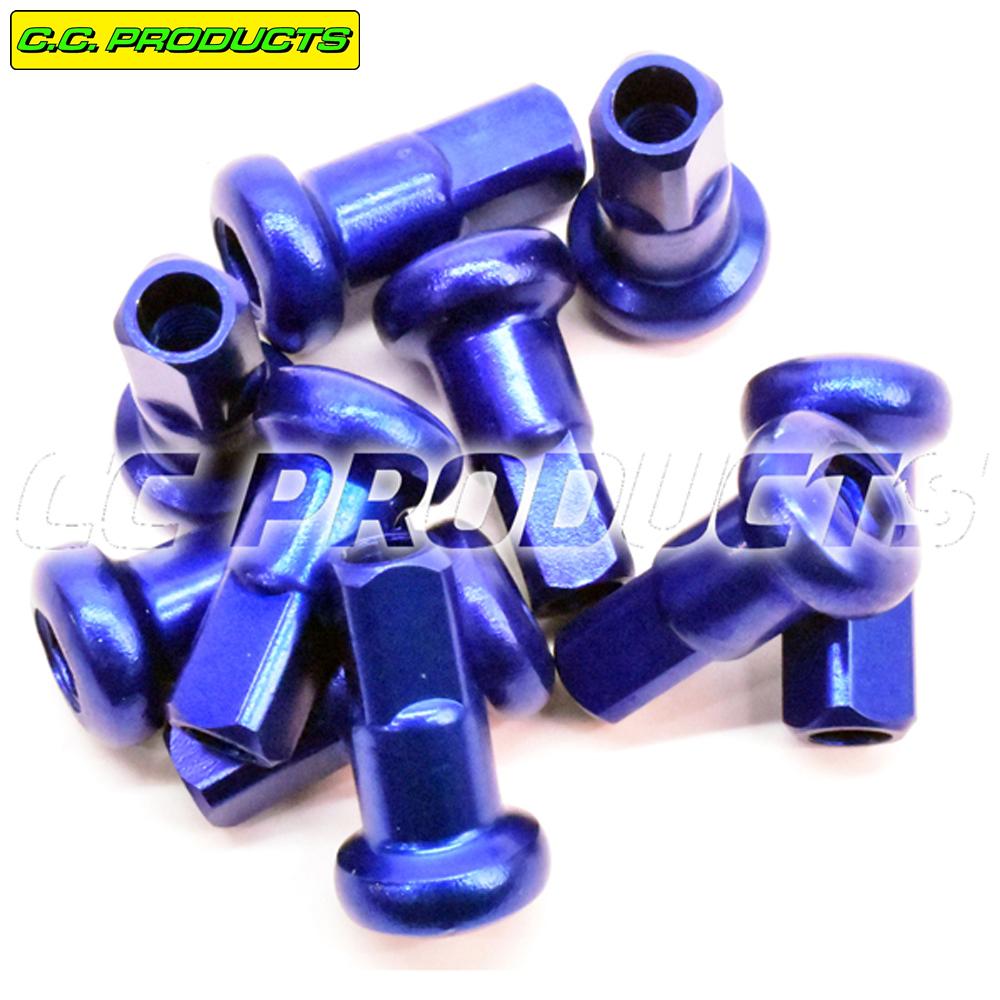

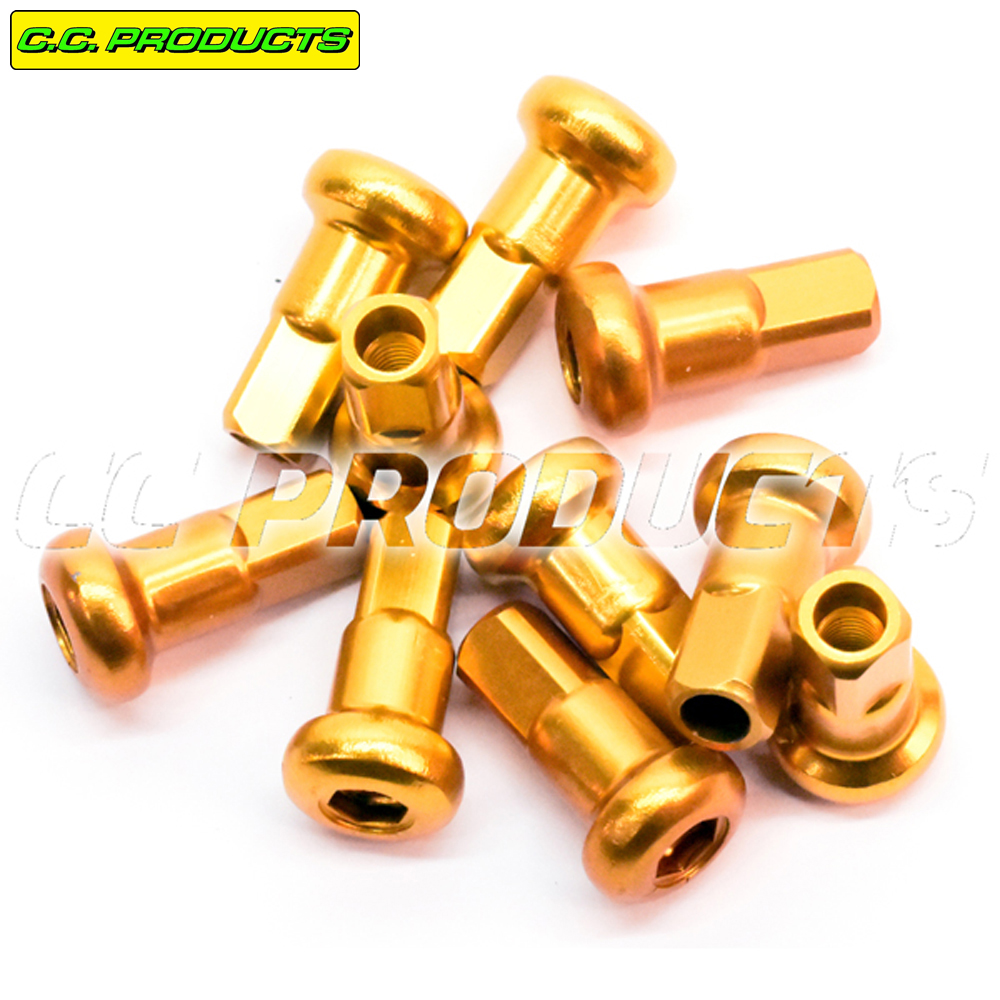

Nipple size: 7,6x20 mm. (8G/300)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 4x188 mm, have article number 50-0396-1
One spoke and nipple, 4x199 mm, have article number 50-0396-2
