Spoke Set KTM MXC 500 19-inch 86-91 Rear Wheel
1,090 SEK per Set
CC Products spokes are made in our spoke machine in our own factory in Sweden. We use Swedish stainless steel spoke wire with a tensile strength of 1450 N/mm2 and a yield strength of 1250 N/mm2!
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
(Optional)
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 50-0454
CC Products stainless spoke set
Fits the following models:
KTM
EGS 250 86-89
EGS 350 86-89
EXC 125 88-89
EXC 240 86-89
EXC 250 86-89
EXC 300 86-89
EXC 350 86-89
GS 125 86-89
GS 240 86-89
GS 250 86-89
GS 300 86-89
GS 350 86-89
GS 500 86-89
GS 600 86-89
MX 125 88-89
MX 250 86-89
MX 300 86-89
MX 350 86-89
MX 495 86-89
MX 500 88-89
MXC 125 86-89
MXC 250 86-89
MXC 300 86-89
MXC 350 86-91
MXC 500 86-91
MXC 540 90-91
MXC 600 86-91
For 19-inch rear wheel with hub 565.10.010.444.

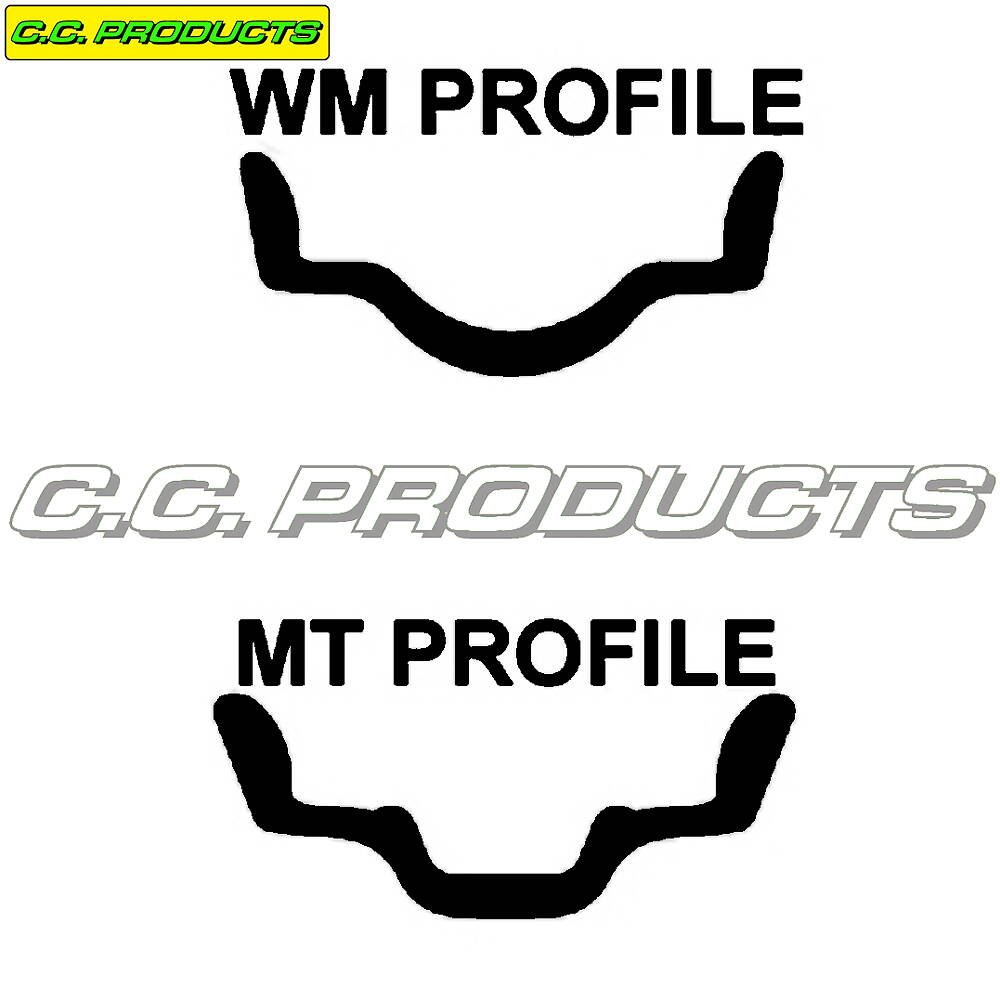

Only for WM rim profile, see picture.
This spoke set has 36 spokes with spoke nipples.
Spoke size: 18 spokes of 4x195 mm, sprocket side.
Spoke size: 9 spokes of 4x198 mm, outer disc side.
Spoke size: 9 spokes of 4x199 mm, inner disc side.
OEM Ref. N/A, original was 18-inch.
Nipple size: 7,6x20 mm. (8G/300)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 4x195 mm, have article number 50-0454-1
One spoke and nipple, 4x198 mm, have article number 50-0454-2
One spoke and nipple, 4x199 mm, have article number 50-0454-3
Fits the following models:
KTM
EGS 250 86-89
EGS 350 86-89
EXC 125 88-89
EXC 240 86-89
EXC 250 86-89
EXC 300 86-89
EXC 350 86-89
GS 125 86-89
GS 240 86-89
GS 250 86-89
GS 300 86-89
GS 350 86-89
GS 500 86-89
GS 600 86-89
MX 125 88-89
MX 250 86-89
MX 300 86-89
MX 350 86-89
MX 495 86-89
MX 500 88-89
MXC 125 86-89
MXC 250 86-89
MXC 300 86-89
MXC 350 86-91
MXC 500 86-91
MXC 540 90-91
MXC 600 86-91
For 19-inch rear wheel with hub 565.10.010.444.
Only for WM rim profile, see picture.
This spoke set has 36 spokes with spoke nipples.
Spoke size: 18 spokes of 4x195 mm, sprocket side.
Spoke size: 9 spokes of 4x198 mm, outer disc side.
Spoke size: 9 spokes of 4x199 mm, inner disc side.
OEM Ref. N/A, original was 18-inch.
Nipple size: 7,6x20 mm. (8G/300)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 4x195 mm, have article number 50-0454-1
One spoke and nipple, 4x198 mm, have article number 50-0454-2
One spoke and nipple, 4x199 mm, have article number 50-0454-3
