Spoke Set Suzuki DR 600 R 17x2,50 86-89 Rear Wheel
1,090 SEK per Set
CC Products spokes are made in our spoke machine in our own warehouse in Sweden. We use Swedish stainless steel spoke wire with a tensile strength of 1450 N/mm2 and a yield strength of 1250 N/mm2!
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
(Optional)
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 50-0140
CC Products stainless spoke set
Fits the following models:
SUZUKI
DR 600 R 86-89
DR 600 R Dakar 86-89
DR 600 RU 87-89
DR 650 R 90-94
DR 650 RE 94-95
DR 650 REU 94-95
DR 650 RS 90-91
DR 650 RSE 91-96
DR 650 RSEU 91-96
DR 650 RSU 90-91
DR 650 RU 90-94
DR 650 S 90-91
DR 650 SE 92-95
DR 650 SEU 90-95
DR 650 SM 90-95
DR 750 S 88-89
DR 750 SU 88-89
DR 800 S 90-97
DR 800 SU 90-97

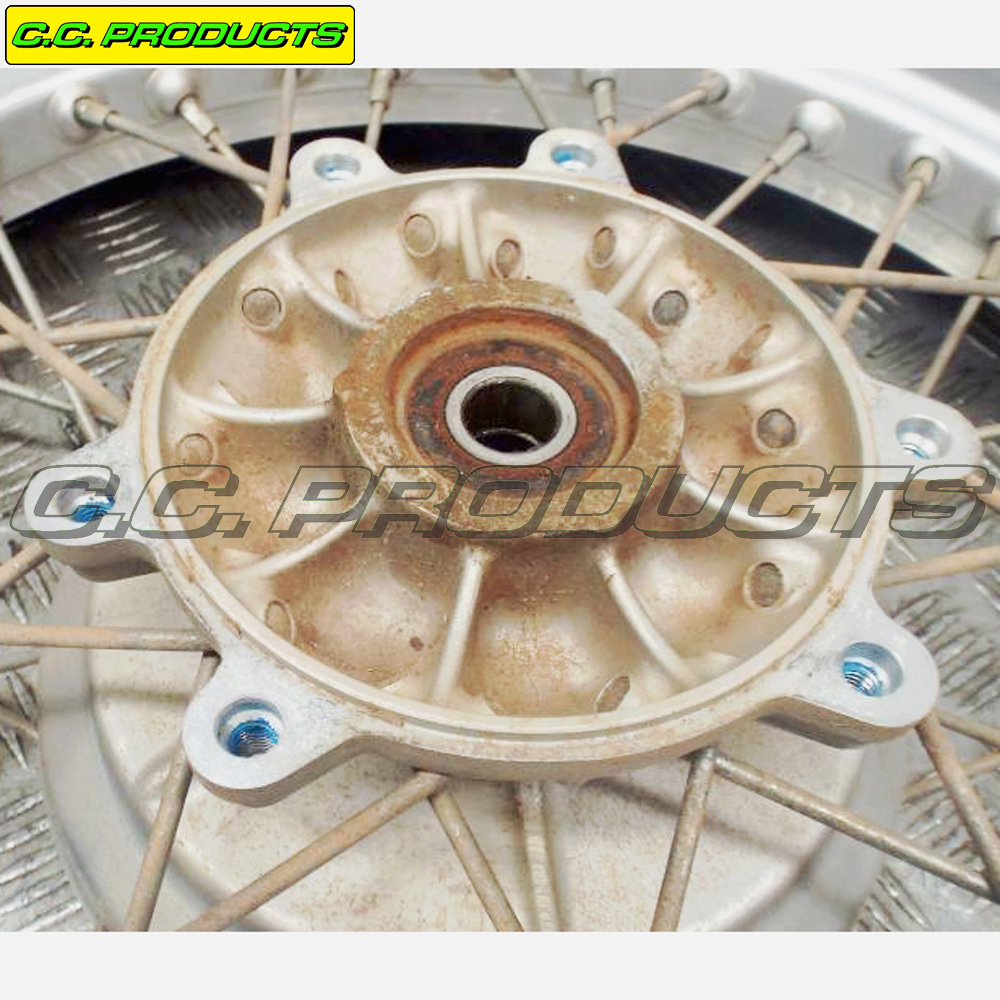

For 17x2,50 rear wheel with these hubs with 6-bolt brake disc:
64110-44B10 replaced by 64111-31D00 (Black).
64110-44B20 replaced by 64111-31D10 (Silver).
NOTE! There are different rear hubs for different DR 650 models!
If you have a rear hub with 4 brake disc bolts you should have spoke set 50-0235.
This spoke set has 36 spokes with spoke nipples.
Spoke size: 18 spokes of 4x121 mm, left side.
Spoke size: 18 spokes of 4x164 mm, right side.
OEM 65320-44B10 (Spoke Set)
17x2,50 Excel rim with article number 58-477 fits this spoke set.
Nipple size: 7,0x20 mm. (8G/275)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 4x121 mm, have article number 50-0140-1
One spoke and nipple, 4x164 mm, have article number 50-0140-2
Fits the following models:
SUZUKI
DR 600 R 86-89
DR 600 R Dakar 86-89
DR 600 RU 87-89
DR 650 R 90-94
DR 650 RE 94-95
DR 650 REU 94-95
DR 650 RS 90-91
DR 650 RSE 91-96
DR 650 RSEU 91-96
DR 650 RSU 90-91
DR 650 RU 90-94
DR 650 S 90-91
DR 650 SE 92-95
DR 650 SEU 90-95
DR 650 SM 90-95
DR 750 S 88-89
DR 750 SU 88-89
DR 800 S 90-97
DR 800 SU 90-97
For 17x2,50 rear wheel with these hubs with 6-bolt brake disc:
64110-44B10 replaced by 64111-31D00 (Black).
64110-44B20 replaced by 64111-31D10 (Silver).
NOTE! There are different rear hubs for different DR 650 models!
If you have a rear hub with 4 brake disc bolts you should have spoke set 50-0235.
This spoke set has 36 spokes with spoke nipples.
Spoke size: 18 spokes of 4x121 mm, left side.
Spoke size: 18 spokes of 4x164 mm, right side.
OEM 65320-44B10 (Spoke Set)
17x2,50 Excel rim with article number 58-477 fits this spoke set.
Nipple size: 7,0x20 mm. (8G/275)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 4x121 mm, have article number 50-0140-1
One spoke and nipple, 4x164 mm, have article number 50-0140-2
