Spoke Set Suzuki LS 650 Boulevard 15-inch 05-19 Rear Wheel
1,590 SEK per Set
CC Products spokes are made in our spoke machine in our own warehouse in Sweden. We use Swedish stainless steel spoke wire with a tensile strength of 1450 N/mm2 and a yield strength of 1250 N/mm2!
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
(Optional)
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 50-0854

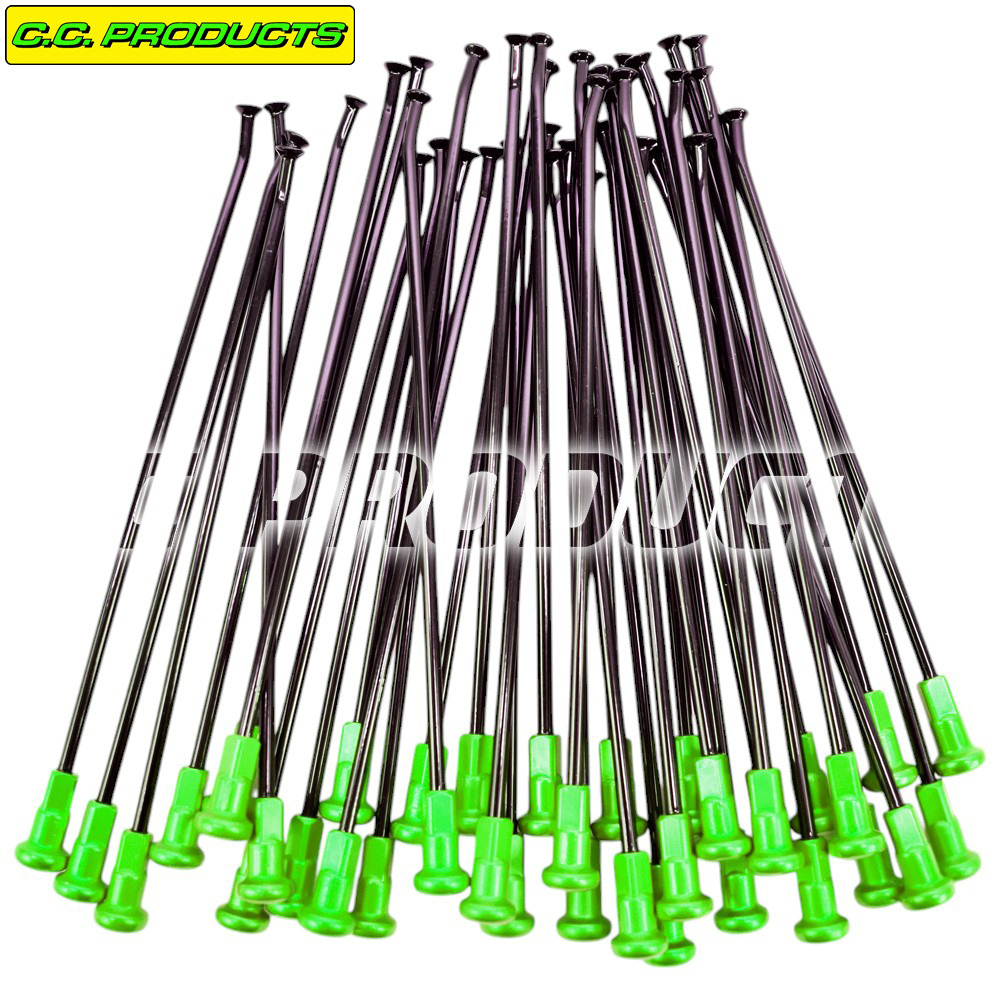

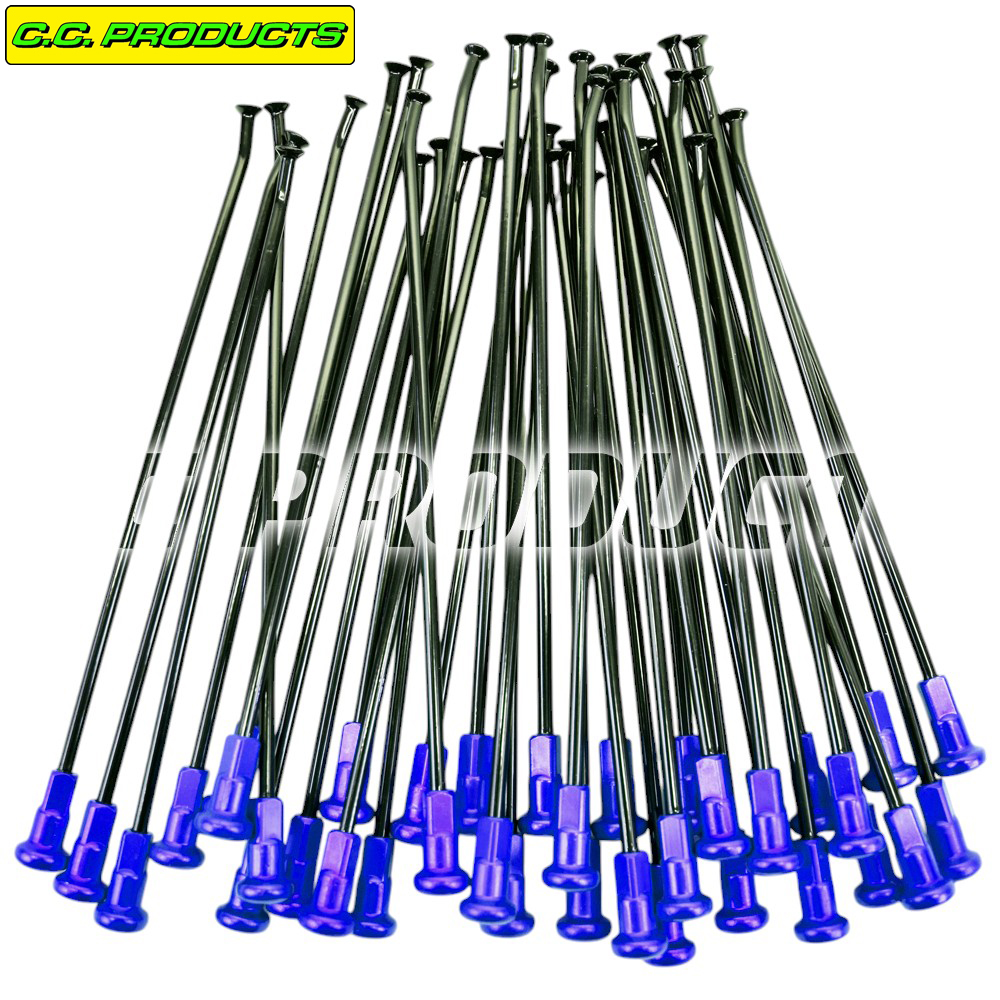

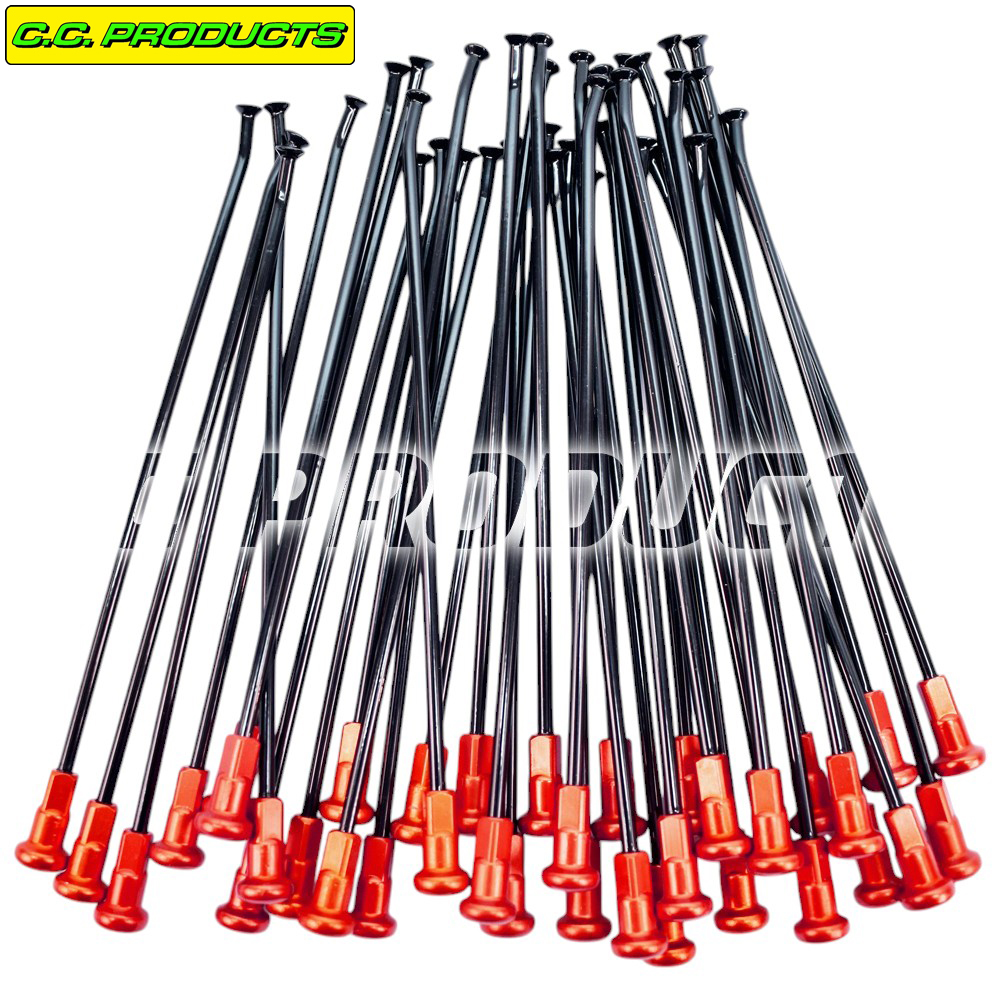

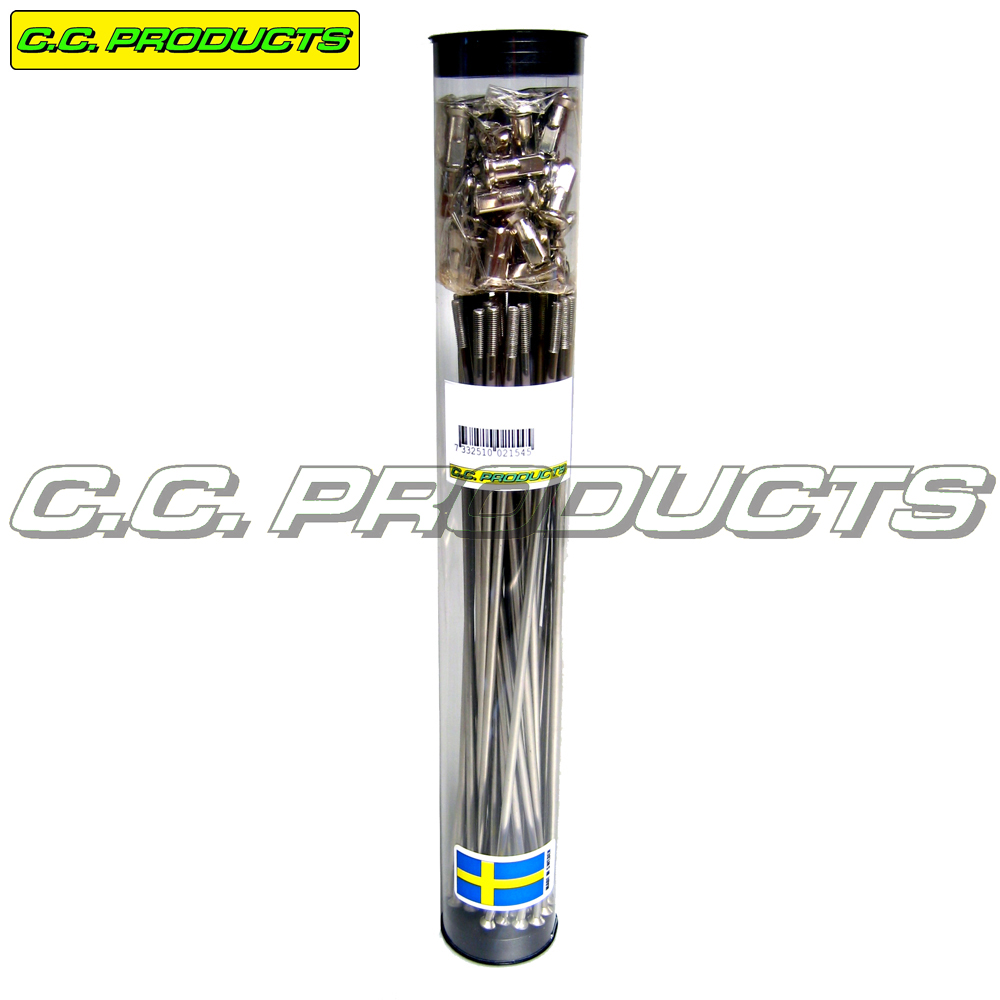

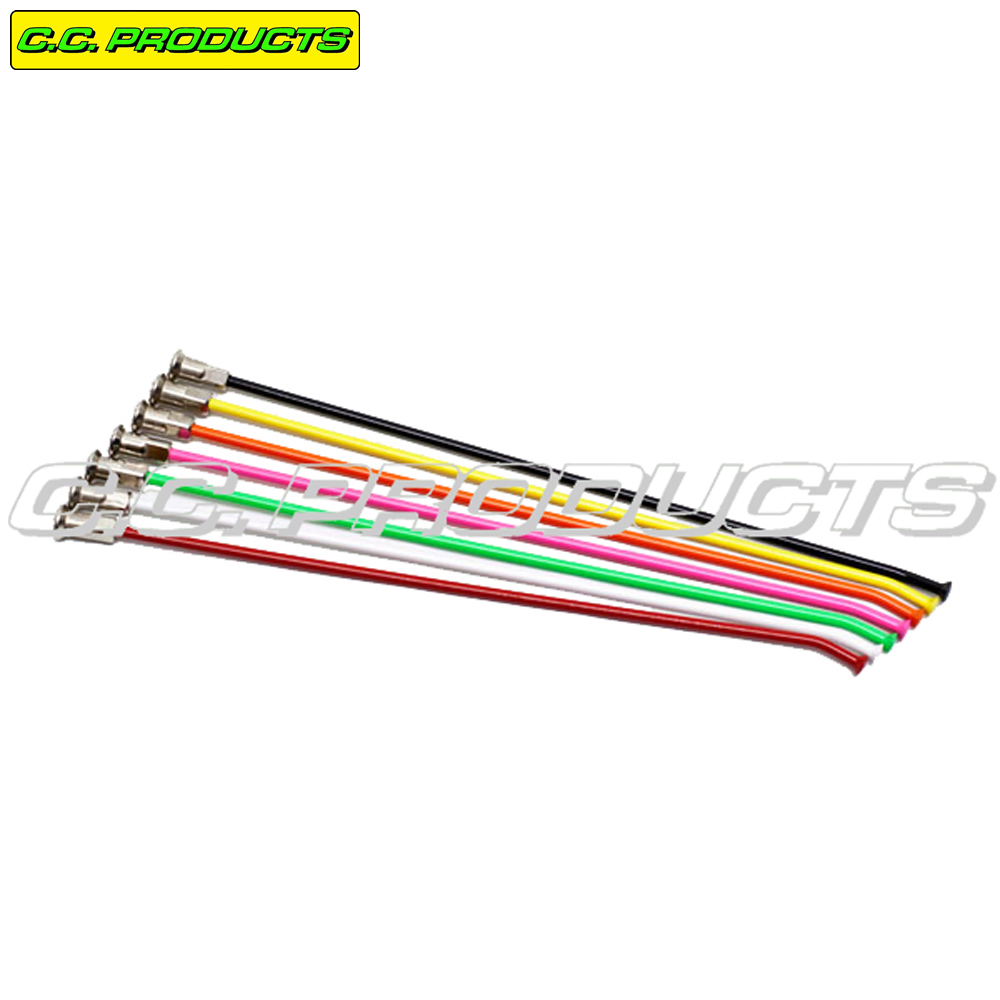

CC Products stainless spoke set
Fits the following models:
SUZUKI
LS 650 Boulevard 05-19
LS 650 Savage 86-04
For 15-inch rear wheel with hub 64110-24B00.

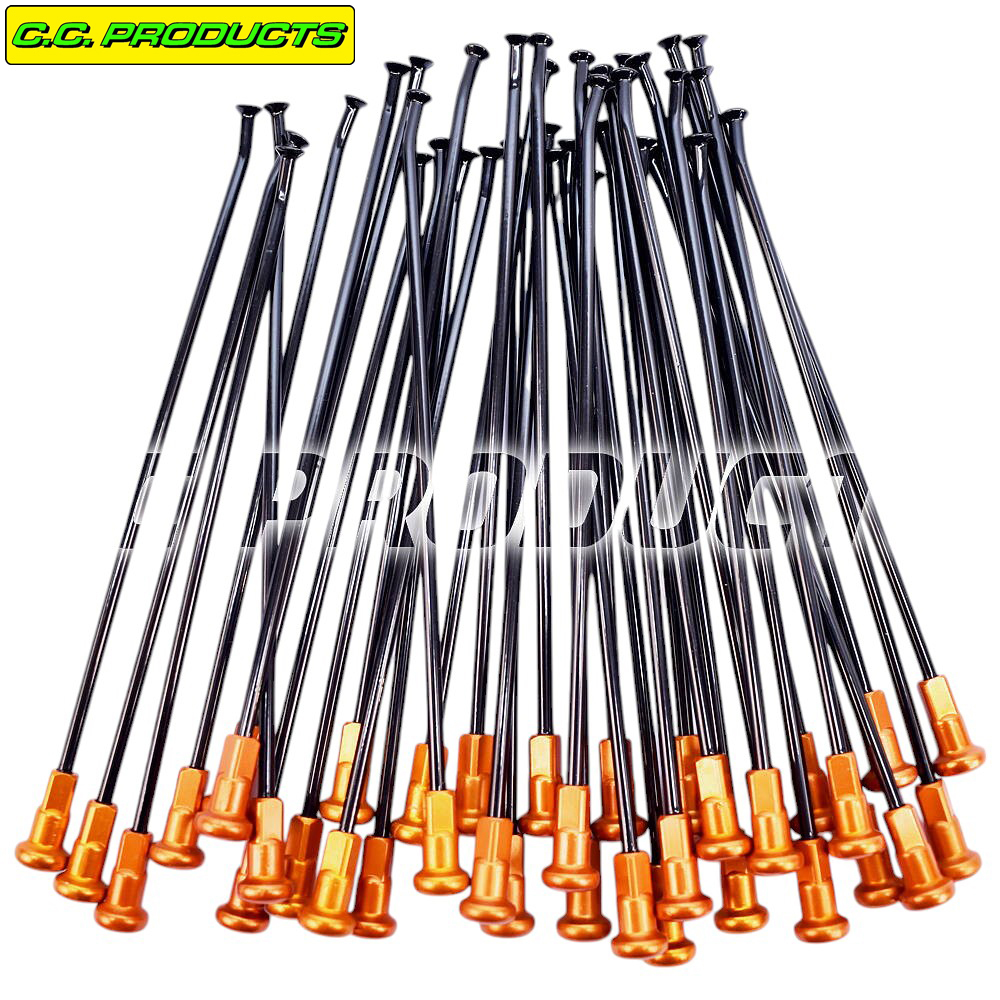

This spoke set have 36 spokes with spoke nipples.
Spoke size: 18 spokes 4x83 mm. Inner spoke.
Spoke size: 18 spokes 4x83 mm. Outer spoke.
OEM Ref. 65320-24B00 (Spoke Set).

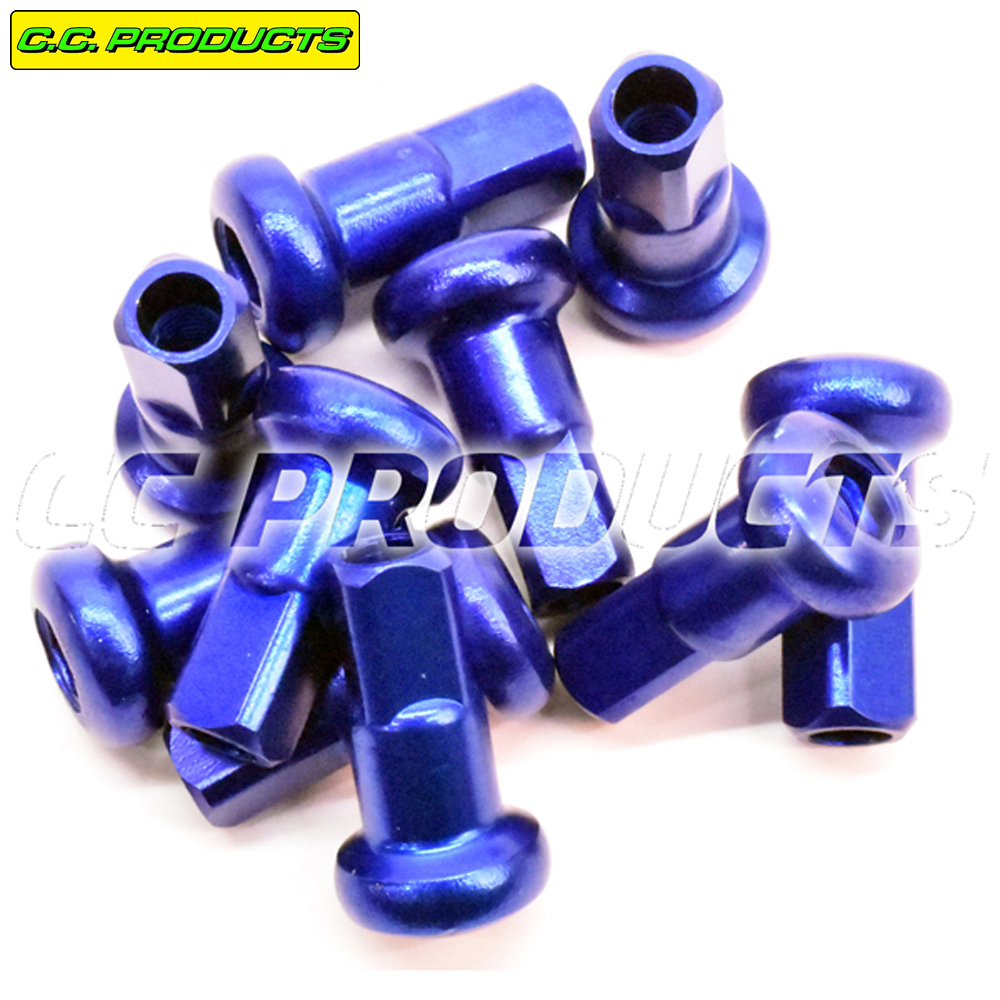

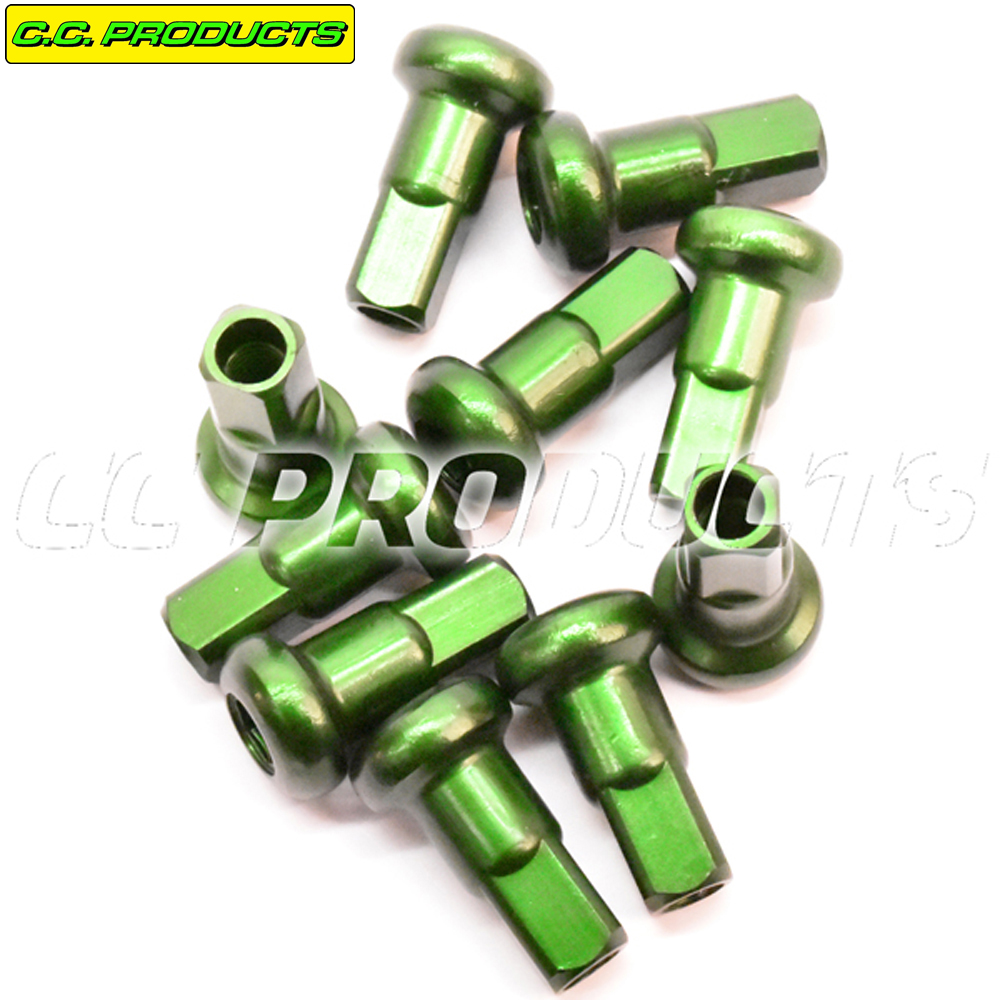

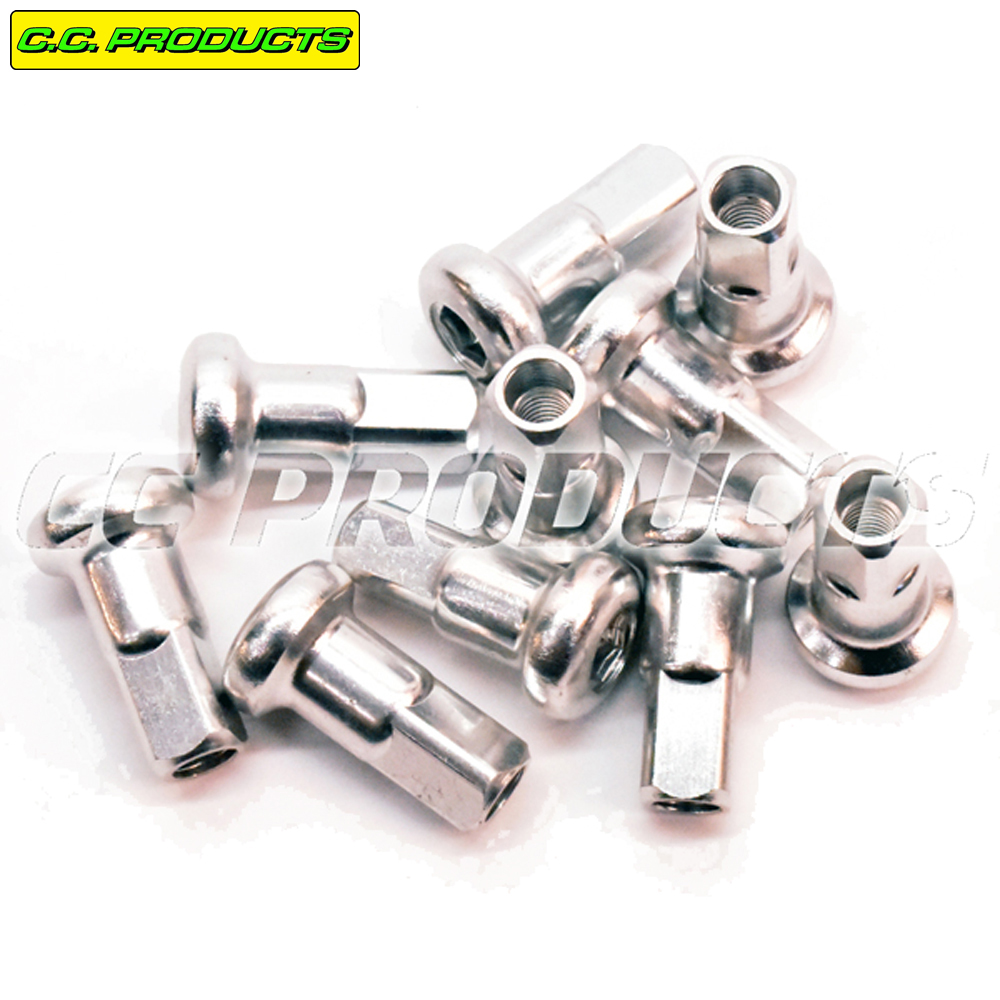

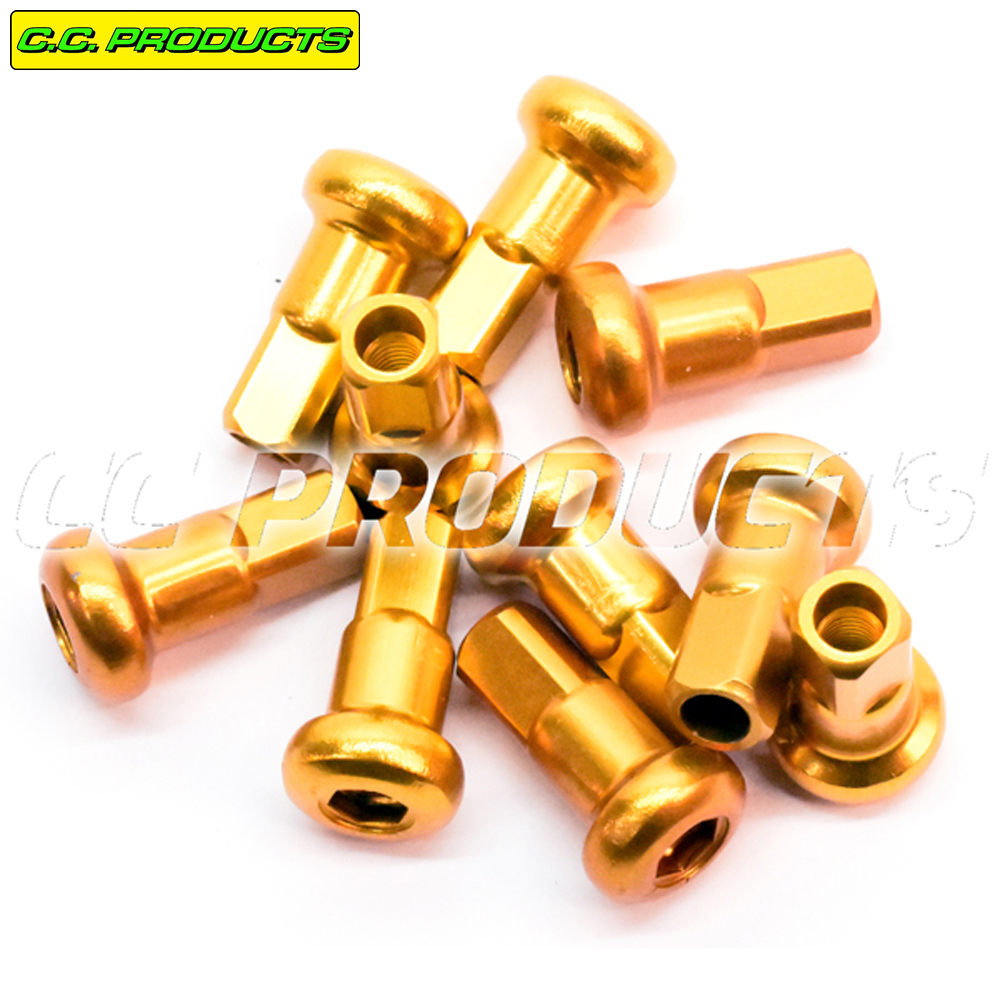

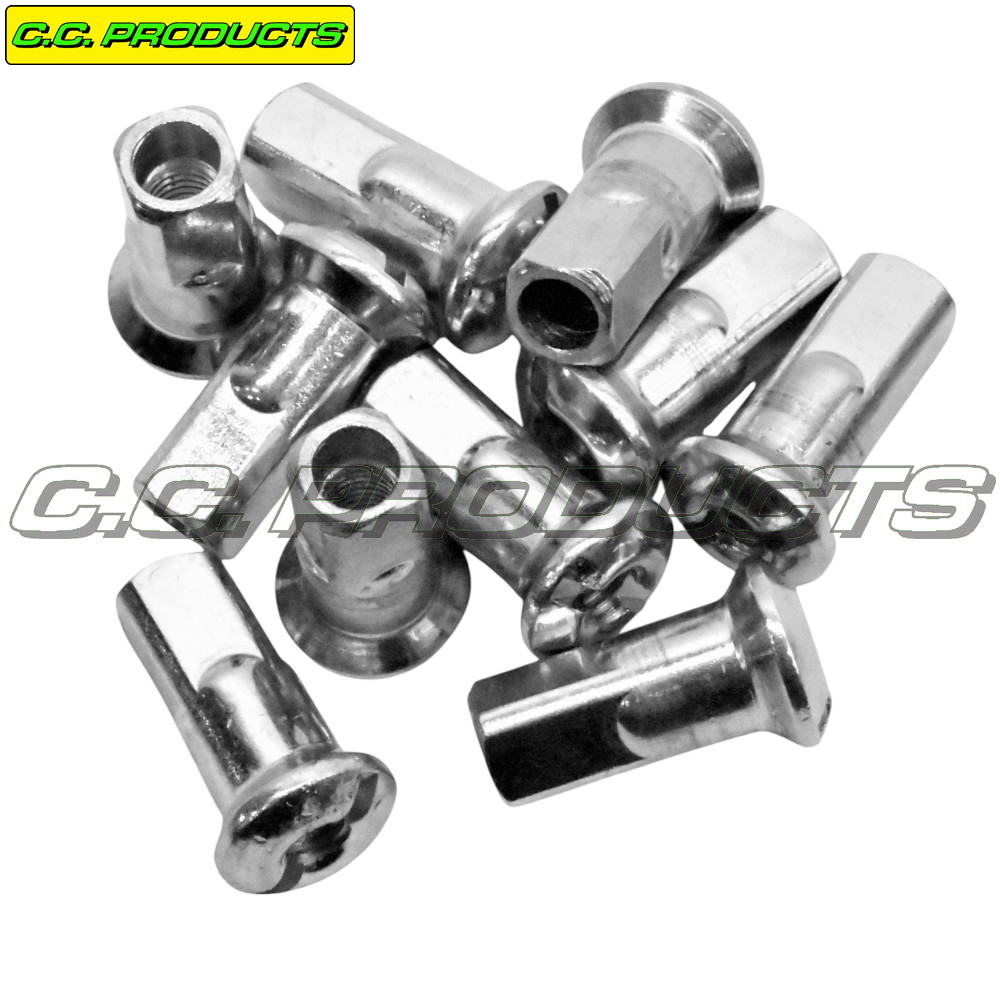

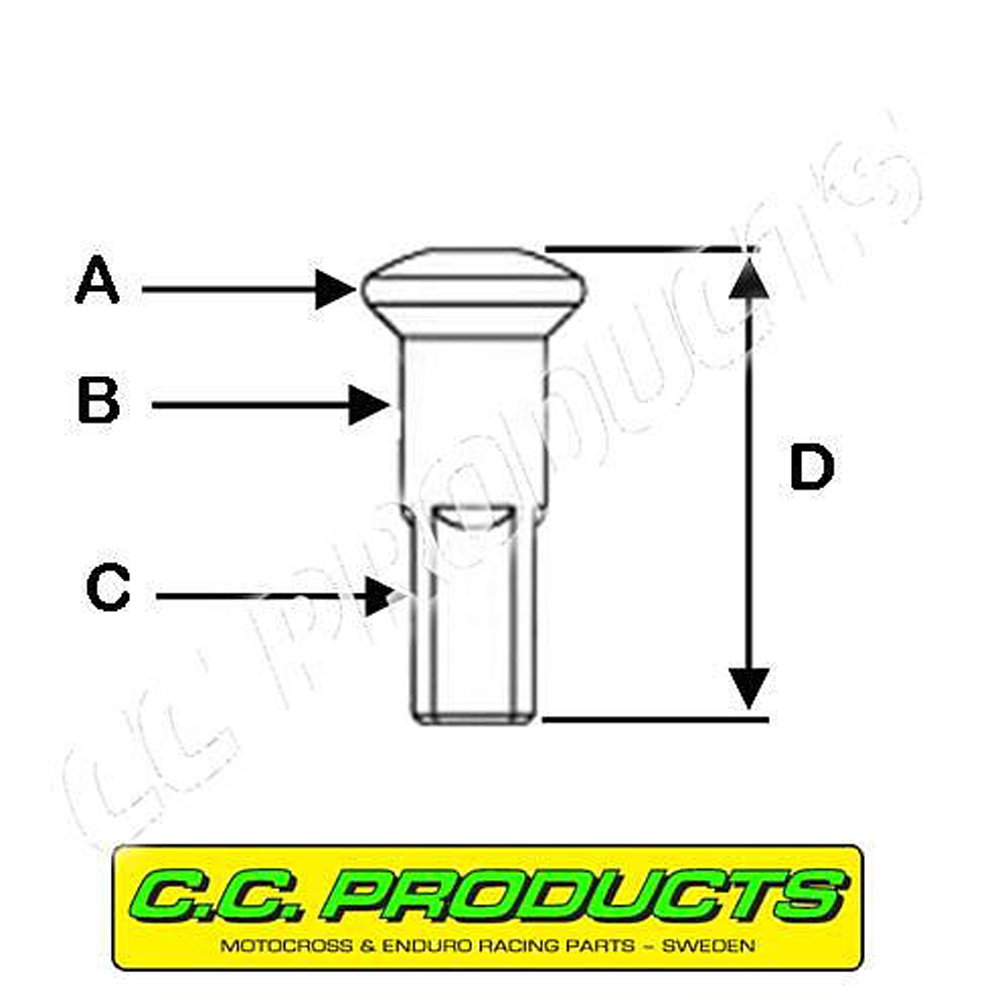

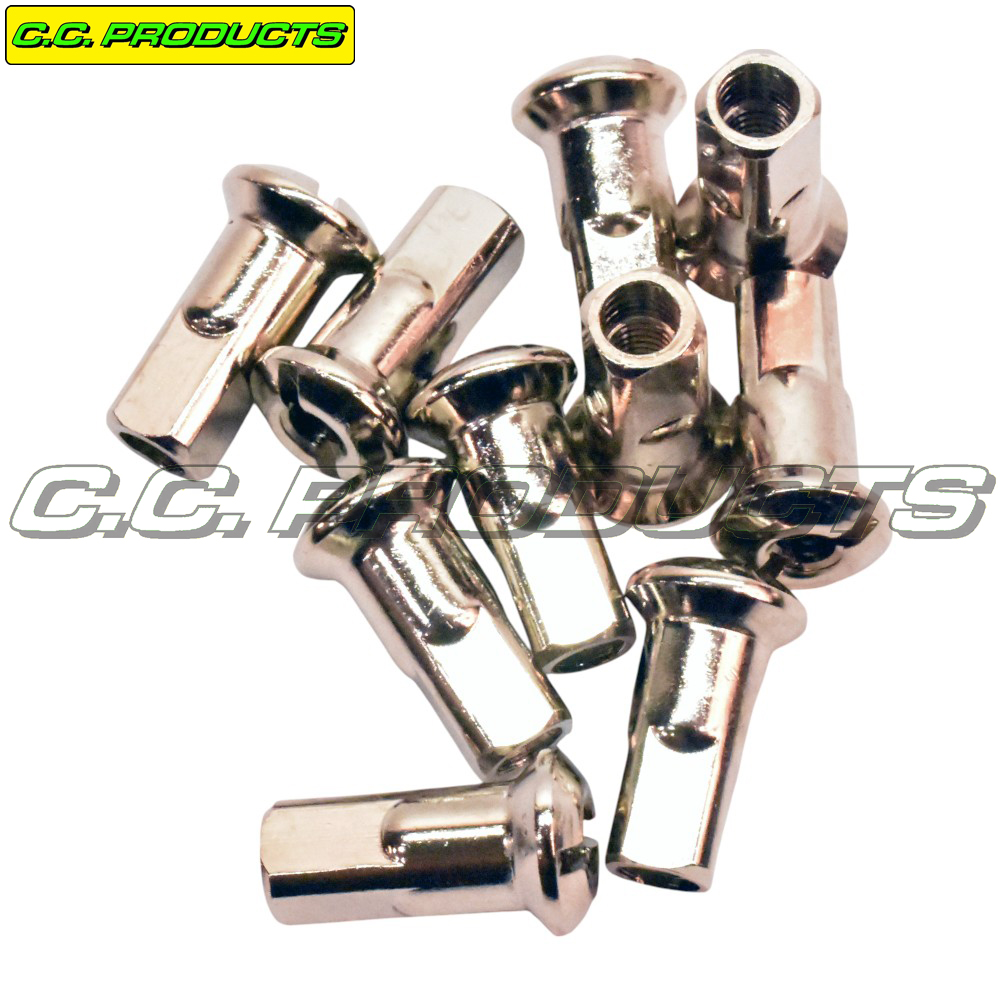

Nipple size: 7,0x20 mm. (8G/275)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 4x83 mm inner spoke, have article number 50-0854-1
One spoke and nipple, 4x83 mm outer spoke, have article number 50-0854-2
