Spoke Set Suzuki RM 250 21-inch 75-78 Front wheel
1,090 SEK per Set
CC Products spokes are made in our spoke machine in our own warehouse in Sweden. We use Swedish stainless steel spoke wire with a tensile strength of 1450 N/mm2 and a yield strength of 1250 N/mm2!
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
(Optional)
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 50-0105
CC Products Stainless spoke set
Fits the following models:
SUZUKI
DR 370 78-79
PE 175 78-79
TM 250 72-75
TM 400 71-75
RM 125 75-78
RM 250 75-78
RM 370 76-77
RM 400 1978
For 21-inch front wheel.
This spoke set has 36 spokes with spoke nipples.
NOTE! There are 2 different front hubs to the above models.

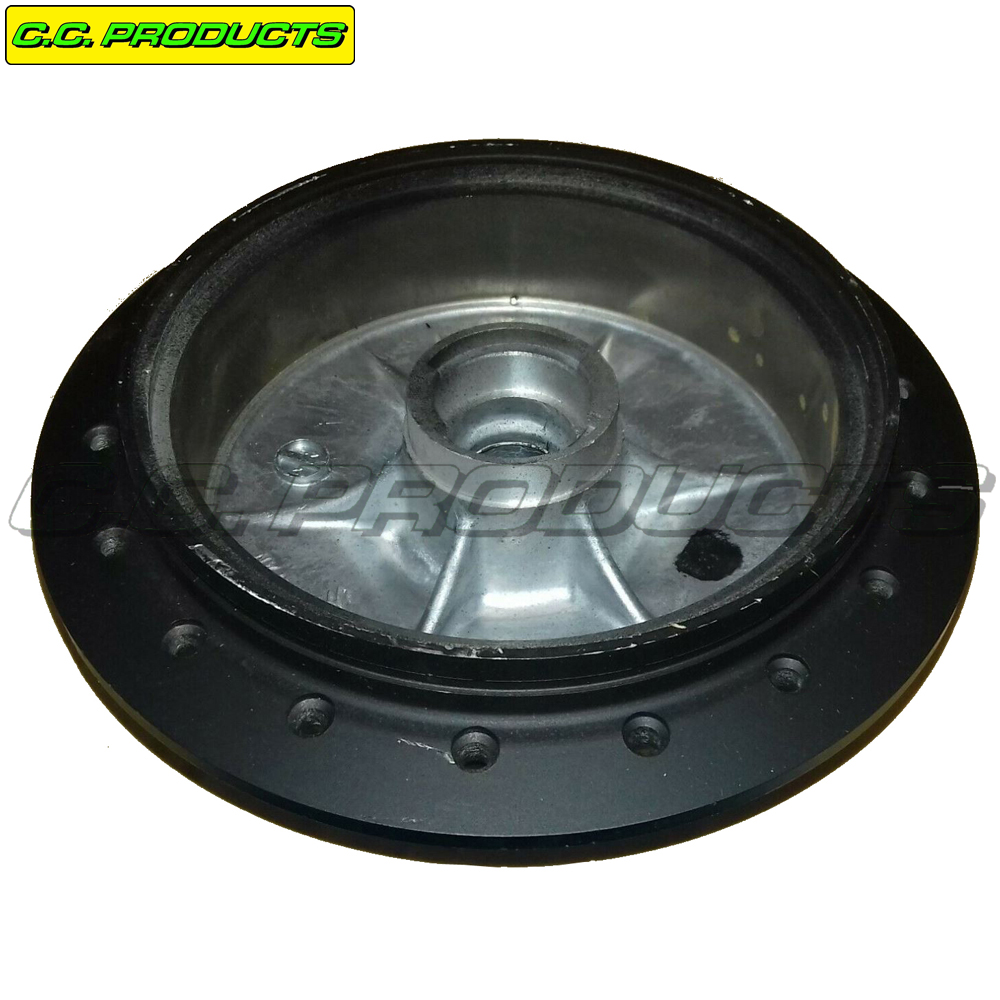

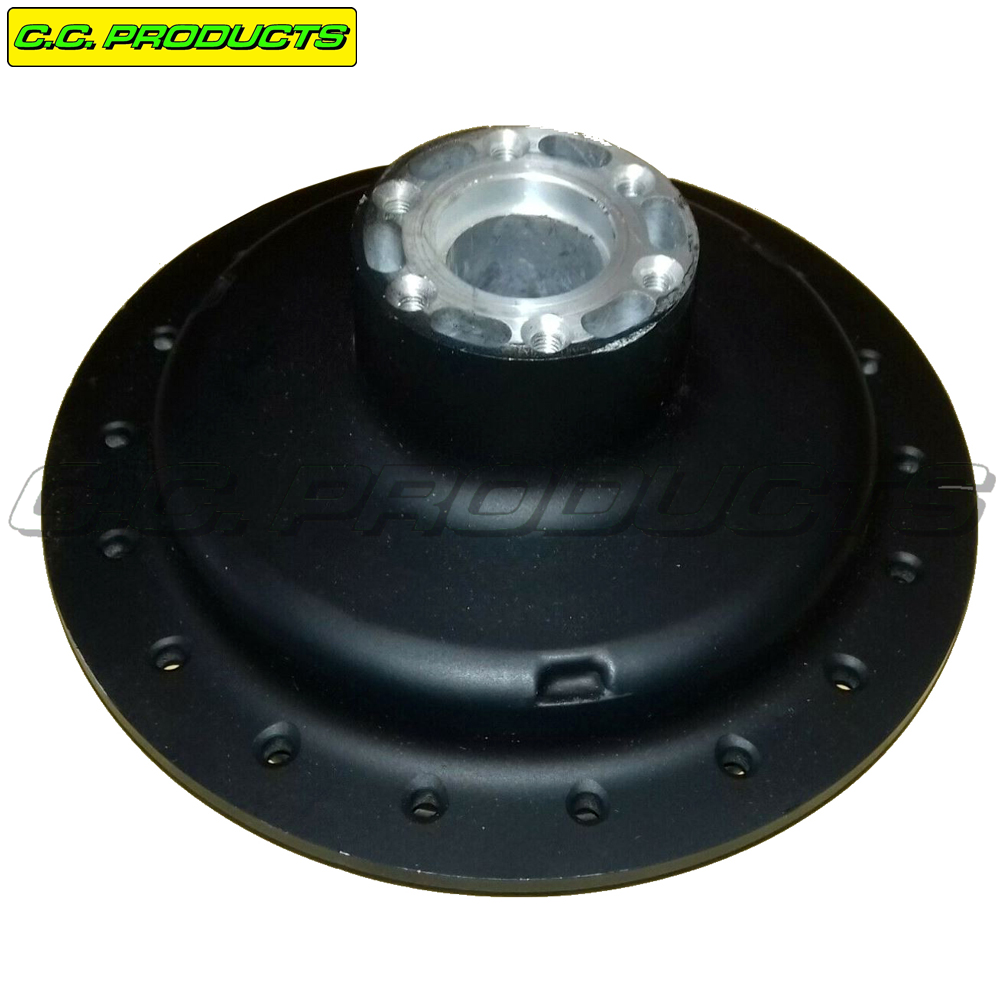

This spoke set fits front hub 54110-41301. (See picture)
If you have the other hub, use spoke set 50-0586.
Spoke size: 9 spokes of 3,6x224 mm. Left outer spoke.
Spoke size: 9 spokes of 3,6x225 mm. Left inner spoke.
Spoke size: 9 spokes of 3,6x237 mm. Right inner spoke.
Spoke size: 9 spokes of 3,6x238 mm. Right outer spoke.
OEM Ref. (Spoke Set) 65300-41840 replaced by 55300-41841 and 55300-41860.
Nipple size: 6,5x20 mm. (9G/250)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 3,6x224 mm, have article number 50-0105-1
One spoke and nipple, 3,6x225 mm, have article number 50-0105-2
One spoke and nipple, 3,6x237 mm, have article number 50-0105-3
One spoke and nipple, 3,6x238 mm, have article number 50-0105-4
Fits the following models:
SUZUKI
DR 370 78-79
PE 175 78-79
TM 250 72-75
TM 400 71-75
RM 125 75-78
RM 250 75-78
RM 370 76-77
RM 400 1978
For 21-inch front wheel.
This spoke set has 36 spokes with spoke nipples.
NOTE! There are 2 different front hubs to the above models.
This spoke set fits front hub 54110-41301. (See picture)
If you have the other hub, use spoke set 50-0586.
Spoke size: 9 spokes of 3,6x224 mm. Left outer spoke.
Spoke size: 9 spokes of 3,6x225 mm. Left inner spoke.
Spoke size: 9 spokes of 3,6x237 mm. Right inner spoke.
Spoke size: 9 spokes of 3,6x238 mm. Right outer spoke.
OEM Ref. (Spoke Set) 65300-41840 replaced by 55300-41841 and 55300-41860.
Nipple size: 6,5x20 mm. (9G/250)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 3,6x224 mm, have article number 50-0105-1
One spoke and nipple, 3,6x225 mm, have article number 50-0105-2
One spoke and nipple, 3,6x237 mm, have article number 50-0105-3
One spoke and nipple, 3,6x238 mm, have article number 50-0105-4
