Spoke Set Suzuki TM 250 21-inch 73-75 Front wheel
1,090 SEK per Set
CC Products spokes are made in our spoke machine in our own factory in Sweden. We use Swedish stainless steel spoke wire with a tensile strength of 1450 N/mm2 and a yield strength of 1250 N/mm2!
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
(Optional)
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 50-0586
CC Products Stainless spoke set
Fits the following models:
SUZUKI
RM 125 75-78
RM 250 76-78
RM 370 76-77
TM 250 73-75
TM 400 73-75

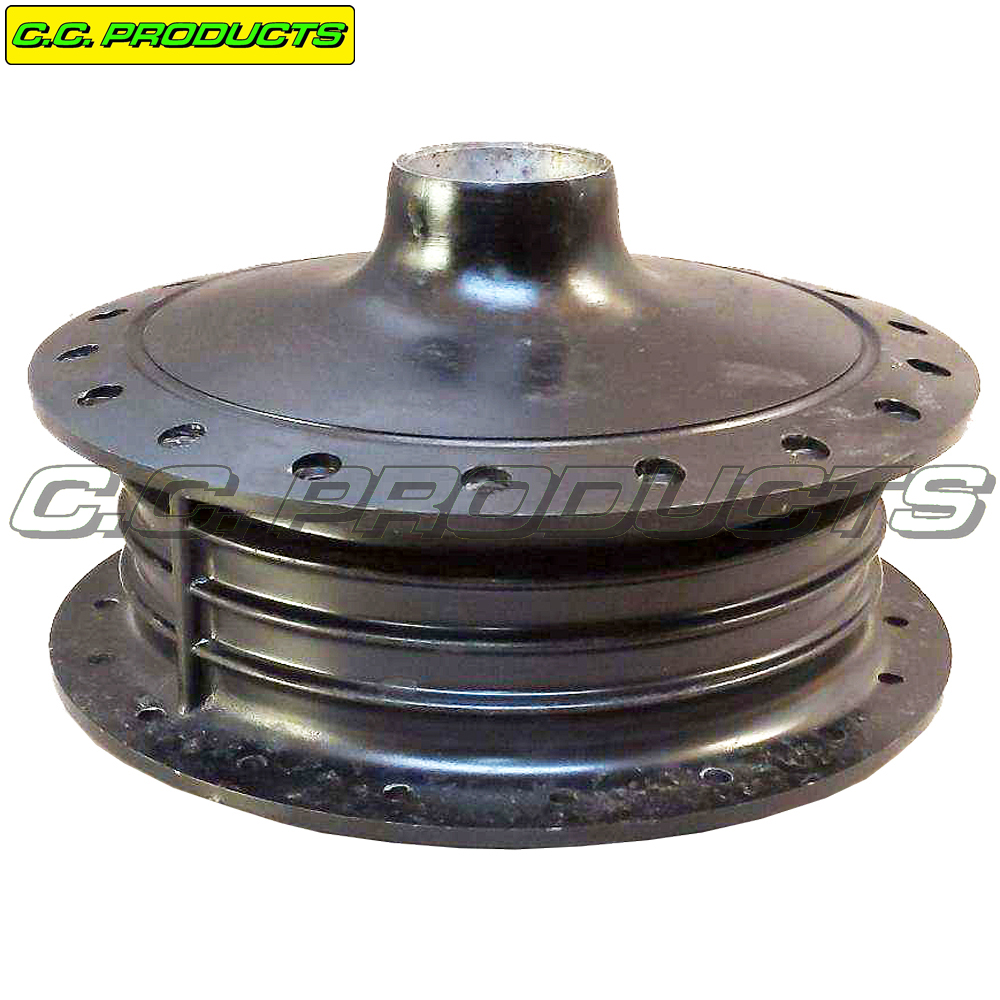

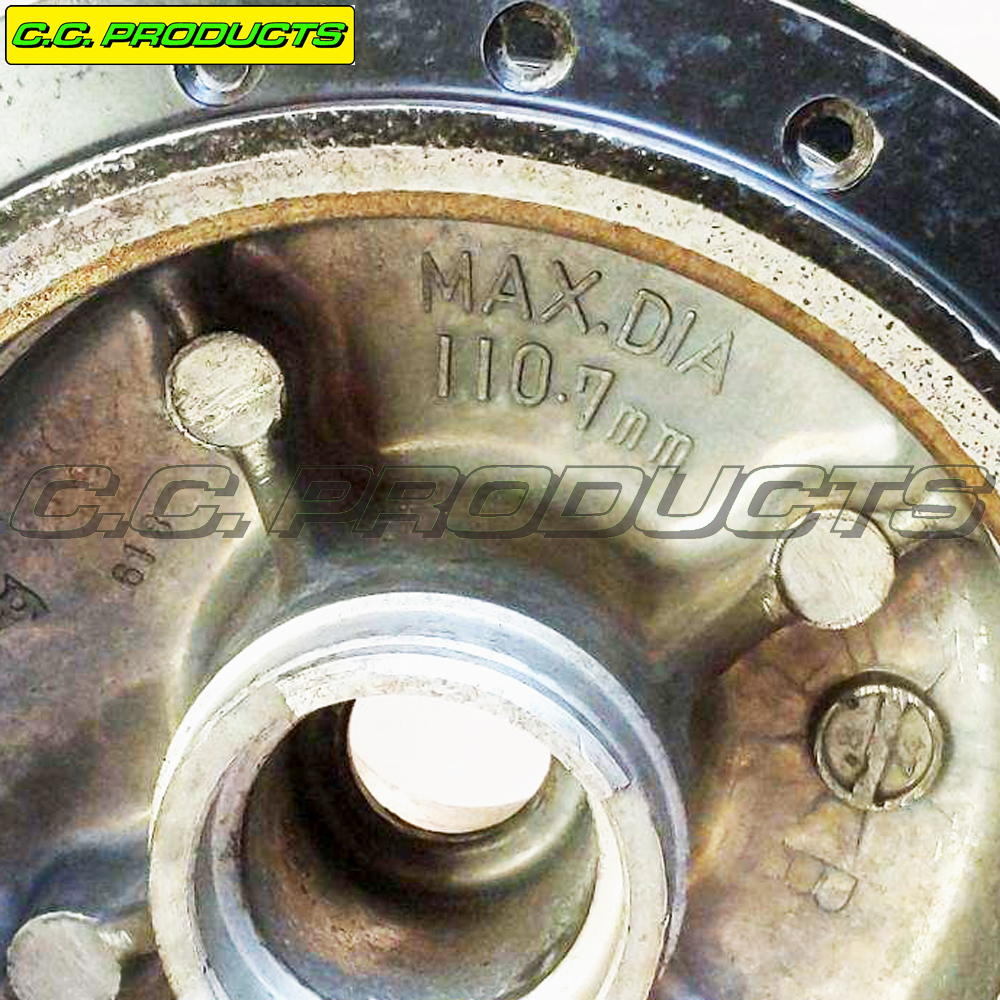

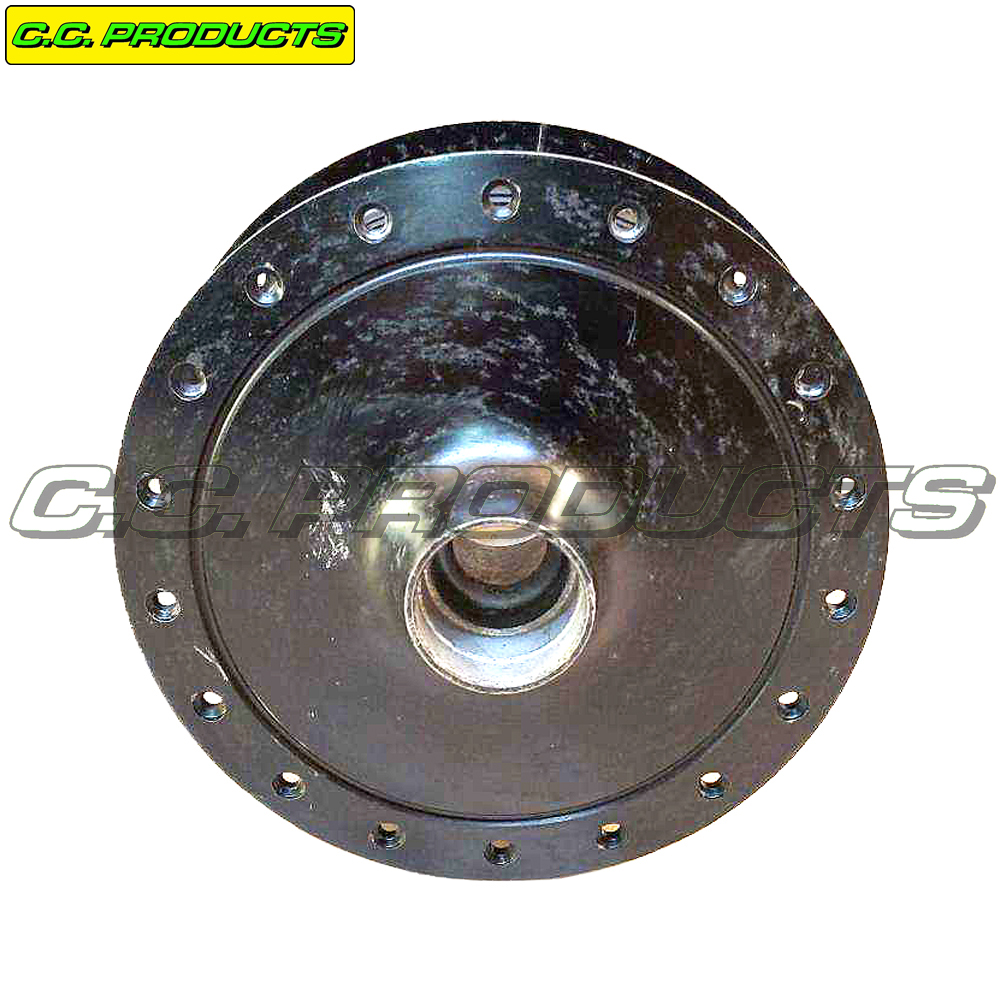

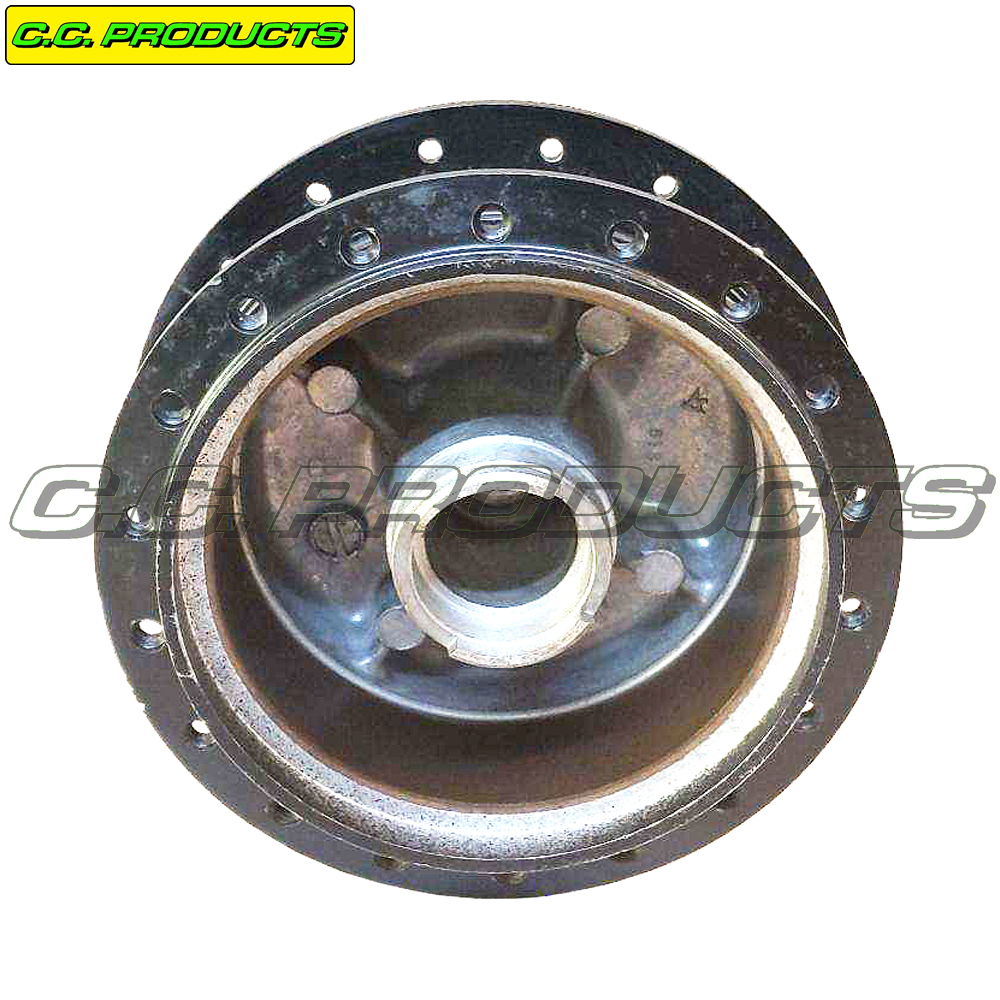

For 21-inch front wheel with hub 54110-16501 replaced by 54110-16502, see picture.
NOTE! There are 2 different front hubs to the above models.
If you have the other hub, use spoke set 50-0105.
This spoke set has 36 spokes with spoke nipples.
Spoke size: 18 spokes of 3,6x199 mm. Outer spoke both sides.
Spoke size: 18 spokes of 3,6x200 mm. Inner spoke both sides.
OEM Ref. (Spoke Set) 55300-41810 replaced by 55301-16823.
Nipple size: 6,5x20 mm. (9G/250)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 3,6x199 mm, have article number 50-0586-1
One spoke and nipple, 3,6x200 mm, have article number 50-0586-2
Fits the following models:
SUZUKI
RM 125 75-78
RM 250 76-78
RM 370 76-77
TM 250 73-75
TM 400 73-75
For 21-inch front wheel with hub 54110-16501 replaced by 54110-16502, see picture.
NOTE! There are 2 different front hubs to the above models.
If you have the other hub, use spoke set 50-0105.
This spoke set has 36 spokes with spoke nipples.
Spoke size: 18 spokes of 3,6x199 mm. Outer spoke both sides.
Spoke size: 18 spokes of 3,6x200 mm. Inner spoke both sides.
OEM Ref. (Spoke Set) 55300-41810 replaced by 55301-16823.
Nipple size: 6,5x20 mm. (9G/250)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 3,6x199 mm, have article number 50-0586-1
One spoke and nipple, 3,6x200 mm, have article number 50-0586-2
