Spoke Set Suzuki VS 750 GLP 15-inch 86-91 Rear Wheel
2,140 SEK per Set
CC Products spokes are made in our spoke machine in our own warehouse in Sweden. We use Swedish stainless steel spoke wire with a tensile strength of 1450 N/mm2 and a yield strength of 1250 N/mm2!
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
(Optional)
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 50-0787

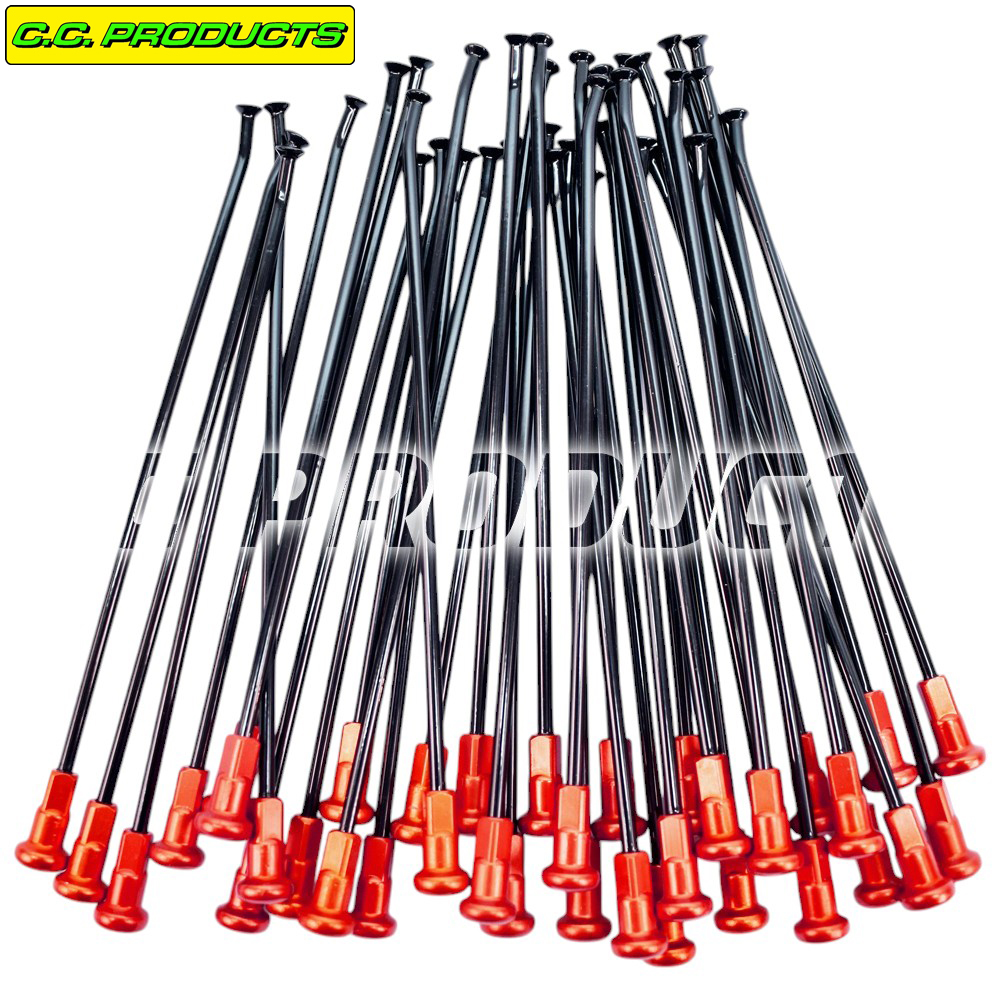

CC Products stainless spoke set
Fits the following models:
SUZUKI
VS 600 GL 95-97
VS 600 GLF 96-97
VS 600 GLU 95-97
VS 700 GLEF Intruder 86-87
VS 700 GLEP Intruder 86-87
VS 700 GLF Intruder 86-87
VS 700 GLP Intruder 86-87
VS 750 GL 1985
VS 750 GLEF 1987
VS 750 GLEP 1987
VS 750 GLF 86-91
VS 750 GLP 86-91
VS 800 Boulevard 06-09
VS 800 GL 92-00
VS 800 GL Boulevard 2005
VS 800 GL Intruder 92-04
For 15x3,00 rear wheel with hub 64100-07850 replaced by 64100-07851 and 64100-07860 replaced by 64100-07861.
This spoke set has 56 spokes with spoke nipples.
Spoke size: 14 spokes of 4x69 mm. Short bend.
Spoke size: 14 spokes of 4x69 mm. Long bend.
Spoke size: 14 spokes of 4x78 mm. Short bend.
Spoke size: 14 spokes of 4x78 mm. Long bend.
OEM Ref. 65320-38A00 replaced by 65320-38A01 replaced by 65320-38A02 (Spoke set).
Nipple size: 7,0x20 mm. (8G/275)
If the spoke nipple holes are larger you may need to change spoke nipples to another size.
One spoke and nipple, 4x69 mm short bend, have article number 50-0787-1
One spoke and nipple, 4x69 mm long bend, have article number 50-0787-2
One spoke and nipple, 4x78 mm short bend, have article number 50-0787-3
One spoke and nipple, 4x78 mm long bend, have article number 50-0787-4
