Spoke Set Suzuki XF 650 Freewind 19x2,15 97-02 Front Wheel
1,090 SEK per Set
CC Products spokes are made in our spoke machine in our own warehouse in Sweden. We use Swedish stainless steel spoke wire with a tensile strength of 1450 N/mm2 and a yield strength of 1250 N/mm2!
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
(Optional)
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 50-0607
CC Products stainless spoke set
Fits the following models:
SUZUKI
DR 650 90->
DR 650 Djebel 1991
DR 650 R 91-92
DR 650 R Dakar 90-95
DR 650 RS 90-94
DR 650 RSE 91-96
DR 650 S 91->
DR 650 SE 95->
DR 800 S 91-97
DR 800 SU 91-97
XF 650 Freewind 97-02
For 19x2,15 front wheel with hub 54111-31D01.

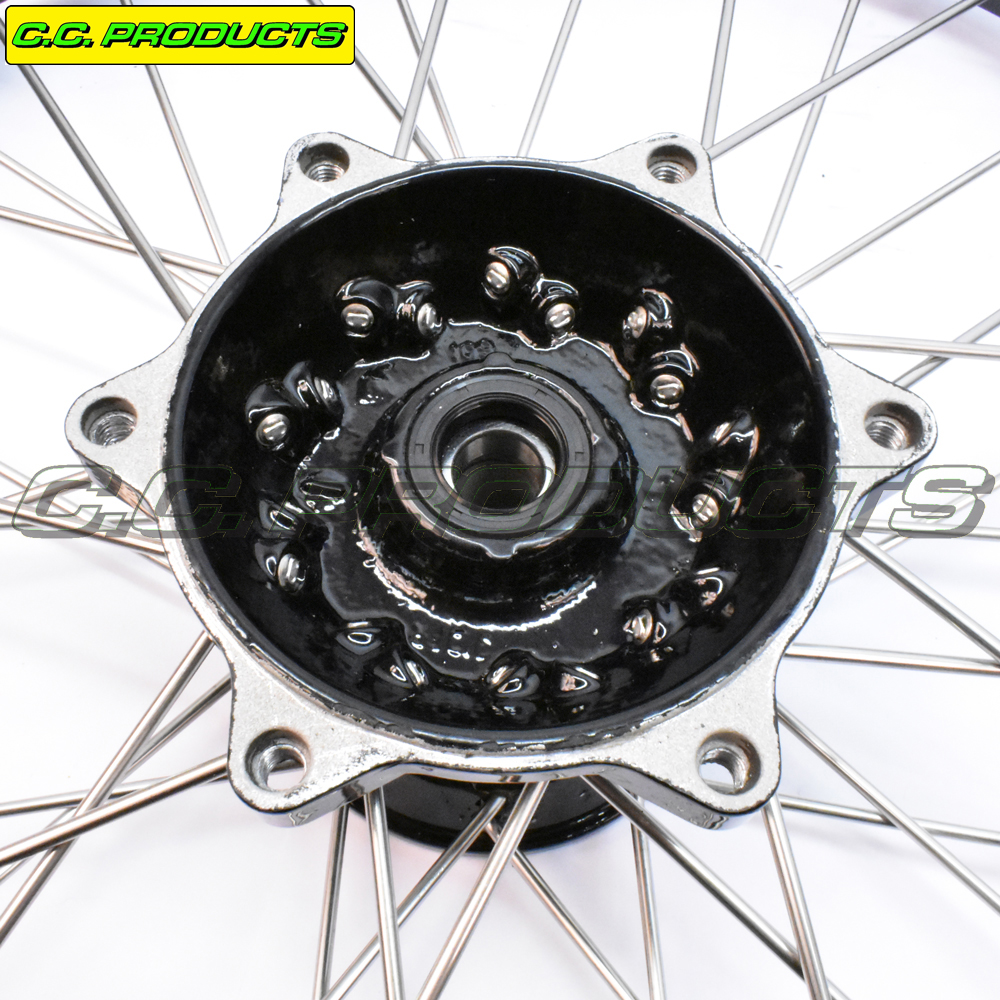

NOTE! For hub with 6-bolt brake disc, see pictures.
This spoke set has 36 spokes with spoke nipples.
Spoke size: 18 of 3,6x199 mm. Outer spoke on both sides.
Spoke size: 18 of 3,6x201 mm. Inner spoke on both sides.
OEM Ref. N/A OEM is 21x1,60 (DR) or 19x2,50 (XF).
Excel rim with article number 58-551 fits this spoke set.

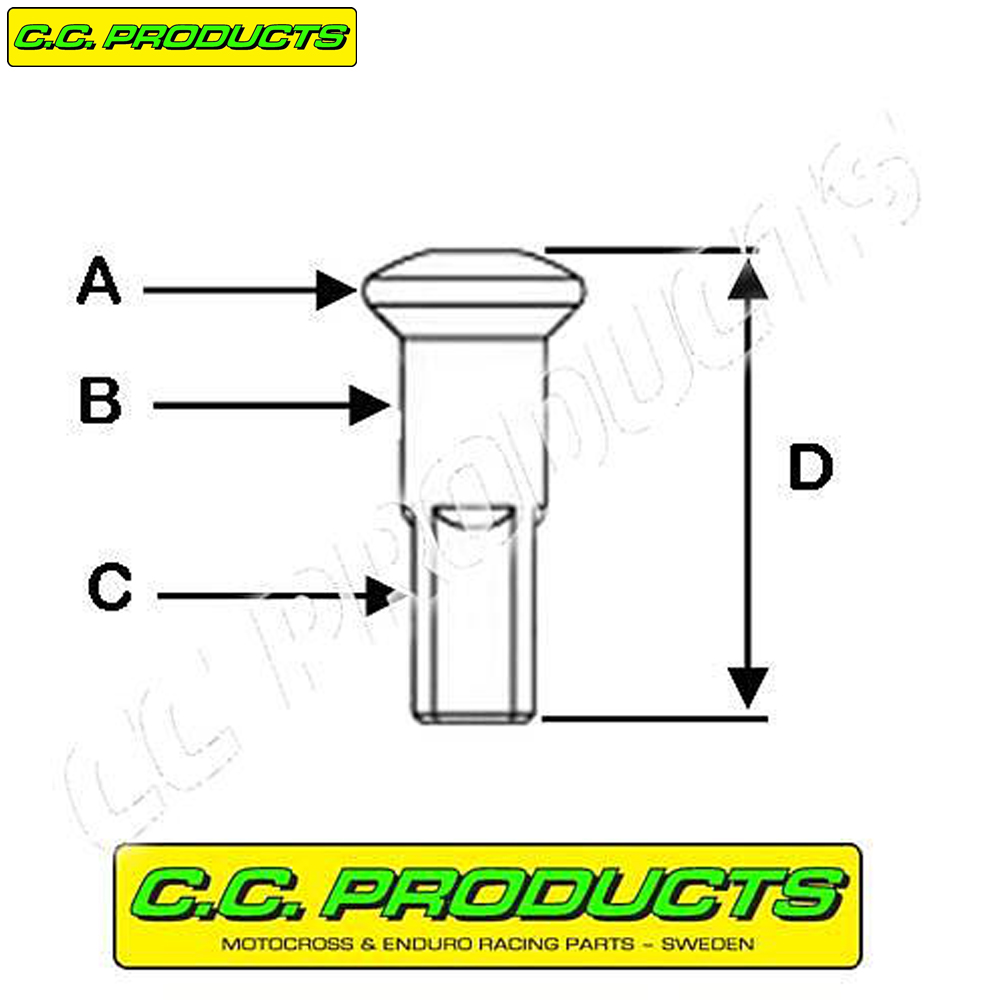

Nipple size: 7,0x20 mm. (9G/275)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 3,6x199 mm, have article number 50-0607-1
One spoke and nipple, 3,6x201 mm, have article number 50-0607-2
