Spoke Set XL 600 V Transalp 17x2,50 87-90 Rear Wheel (For MT Rim)
1,090 SEK per Set
CC Products spokes are made in our spoke machine in our own warehouse in Sweden. We use Swedish stainless steel spoke wire with a tensile strength of 1450 N/mm2 and a yield strength of 1250 N/mm2!
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
(Optional)
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 50-0922
CC Products stainless spoke set

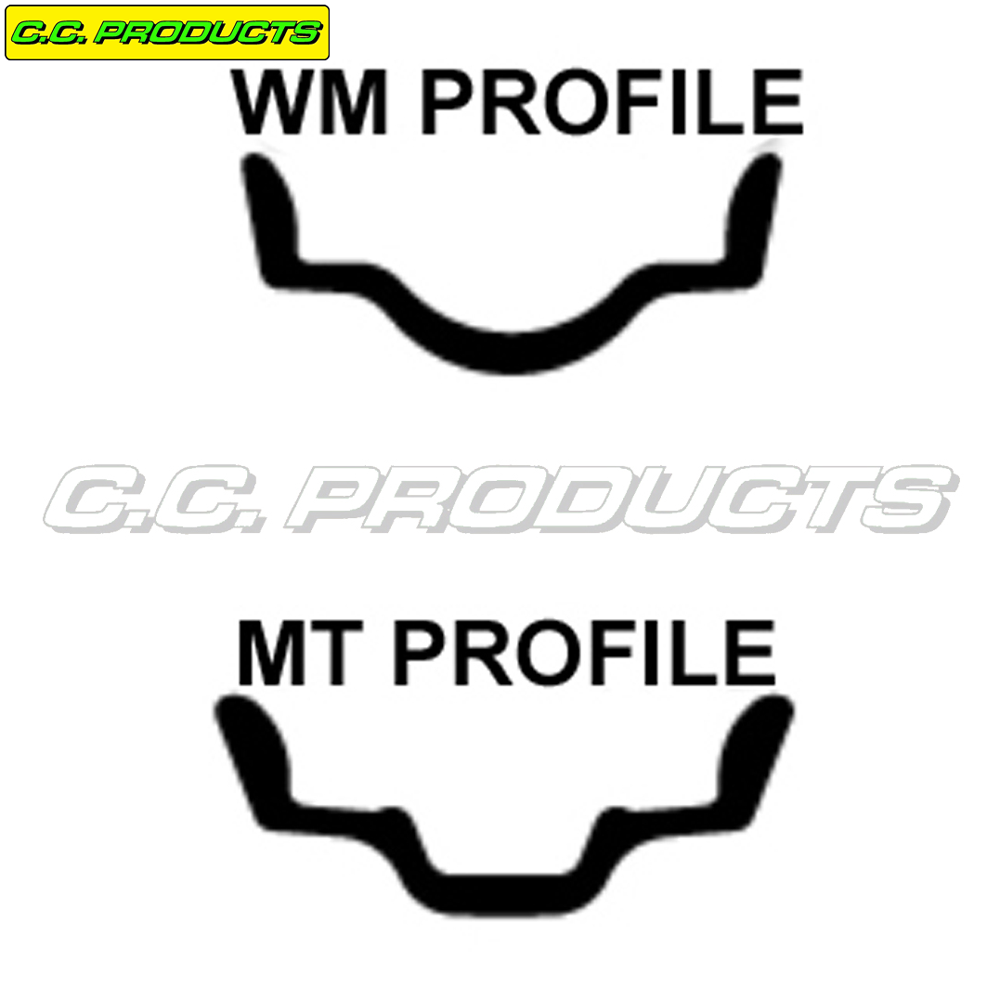

NOTE! For 17x2.50 rim with MT profile, see picture.

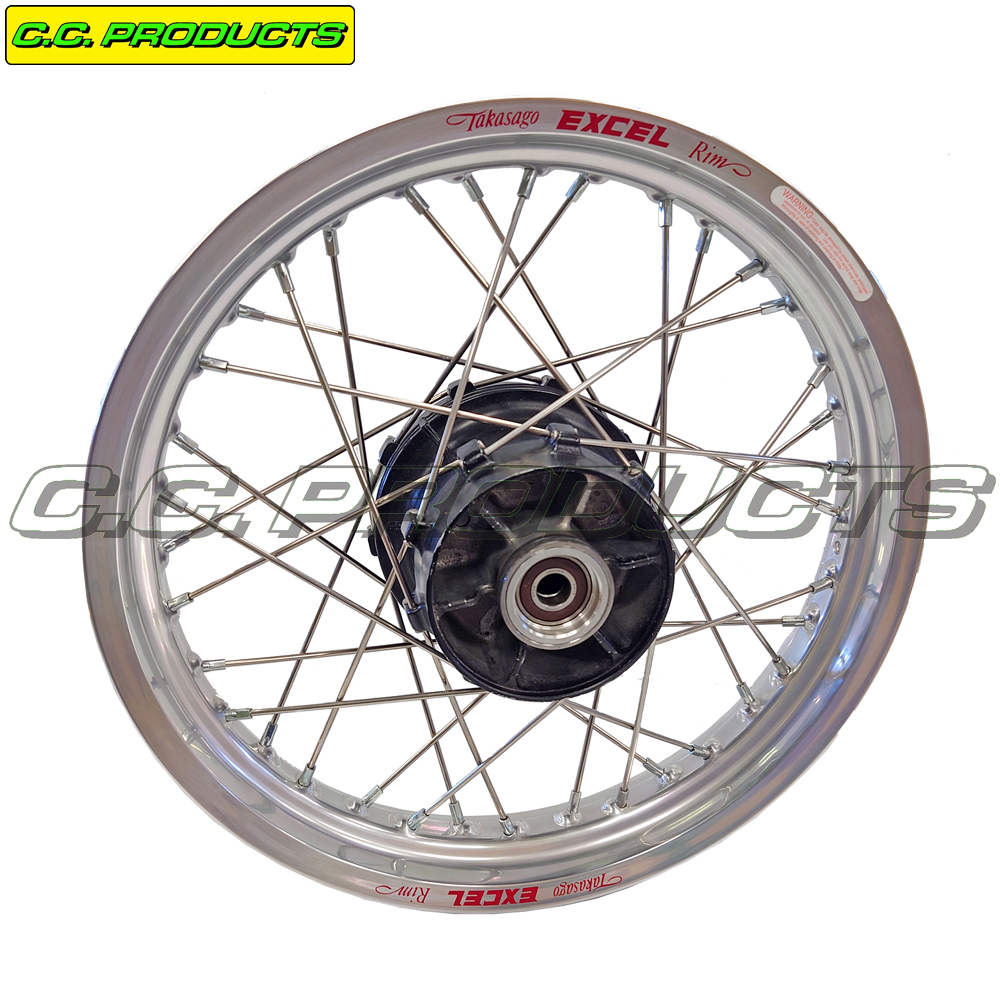

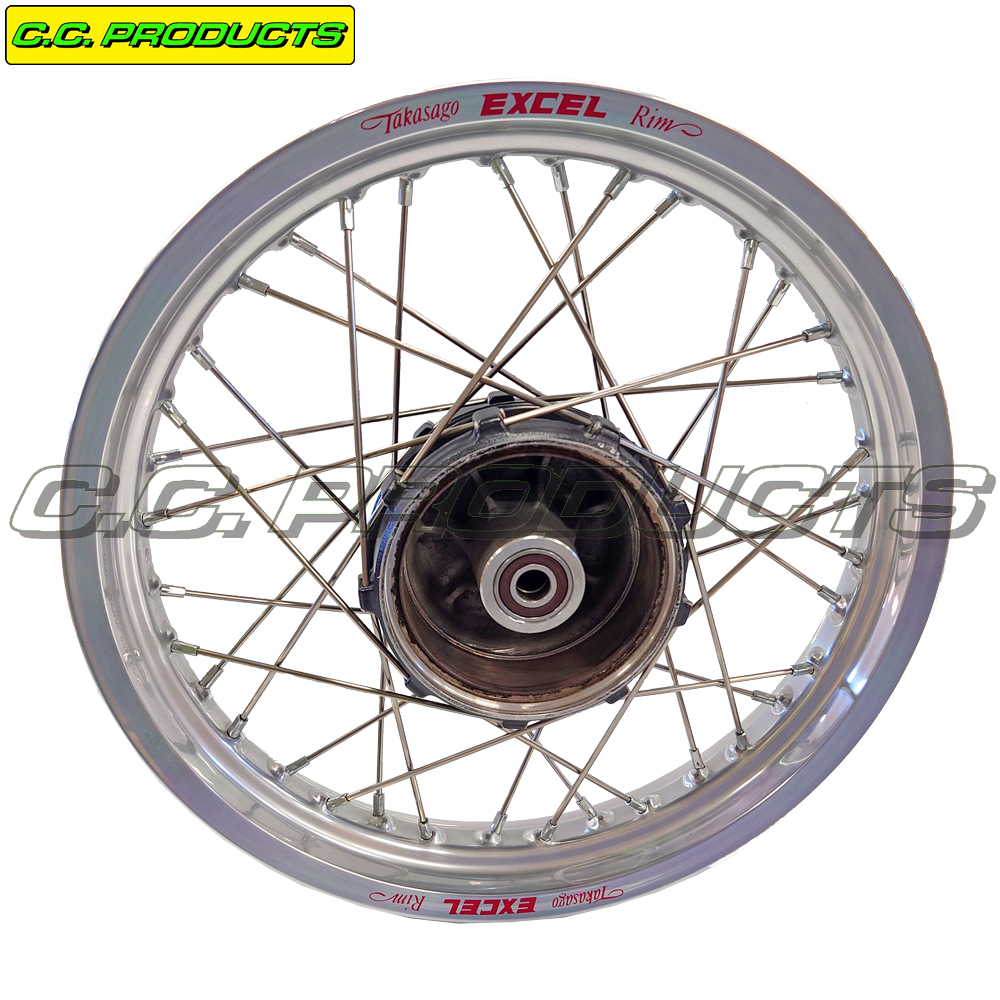

This spoke set has shorter spokes to fit Excel rim with MT profile, see pictures.
If you have an OEM rim with WM profile, then you should use the spoke set 50-0587.
If you are not sure, please ask.
Fits the following models:
HONDA
XL 600 V Transalp 87-90
For 17x2,50 rear wheel with MT rim and hub 42601-MM9-000.
This spoke set has 36 spokes with spoke nipples.
Spoke size: 9 spokes of 3.6x197 mm. Inner spoke on the left side.
Spoke size: 18 spokes of 3.6x199 mm. Spoke on the right side
Spoke size: 9 spokes of 3.6x201 mm. Outer spoke on the left side.
OEM Ref. Not available, original has rim with WM profile.
17x2,50 Excel MT rim with article number 58-858 fits this spoke set.
Nipple size: 7,0x20 mm. (9G/275)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 3,6x197 mm, have article number 50-0922-1
One spoke and nipple, 3,6x199 mm, have article number 50-0922-2
One spoke and nipple, 3,6x201 mm, have article number 50-0922-3
NOTE! For 17x2.50 rim with MT profile, see picture.
This spoke set has shorter spokes to fit Excel rim with MT profile, see pictures.
If you have an OEM rim with WM profile, then you should use the spoke set 50-0587.
If you are not sure, please ask.
Fits the following models:
HONDA
XL 600 V Transalp 87-90
For 17x2,50 rear wheel with MT rim and hub 42601-MM9-000.
This spoke set has 36 spokes with spoke nipples.
Spoke size: 9 spokes of 3.6x197 mm. Inner spoke on the left side.
Spoke size: 18 spokes of 3.6x199 mm. Spoke on the right side
Spoke size: 9 spokes of 3.6x201 mm. Outer spoke on the left side.
OEM Ref. Not available, original has rim with WM profile.
17x2,50 Excel MT rim with article number 58-858 fits this spoke set.
Nipple size: 7,0x20 mm. (9G/275)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 3,6x197 mm, have article number 50-0922-1
One spoke and nipple, 3,6x199 mm, have article number 50-0922-2
One spoke and nipple, 3,6x201 mm, have article number 50-0922-3
