Spoke Set XS 650 18-inch 75-81 Rear Wheel
1,090 SEK per Set
CC Products spokes are made in our spoke machine in our own warehouse in Sweden. We use Swedish stainless steel spoke wire with a tensile strength of 1450 N/mm2 and a yield strength of 1250 N/mm2!
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
(Optional)
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 50-0945
CC Products stainless spoke set
Fits the following models:
YAMAHA
TX 650 74-76
XS-1 70-71
XS-2 1972
XS 650 75-81

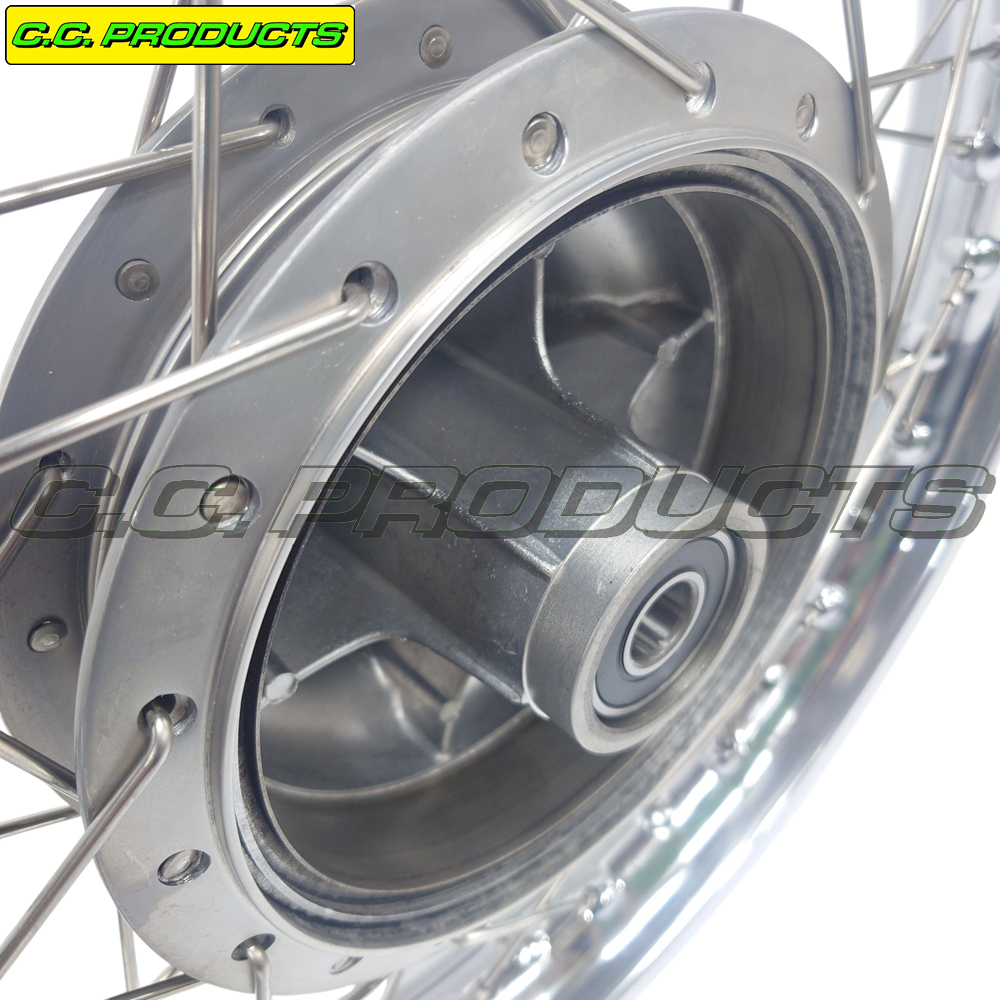

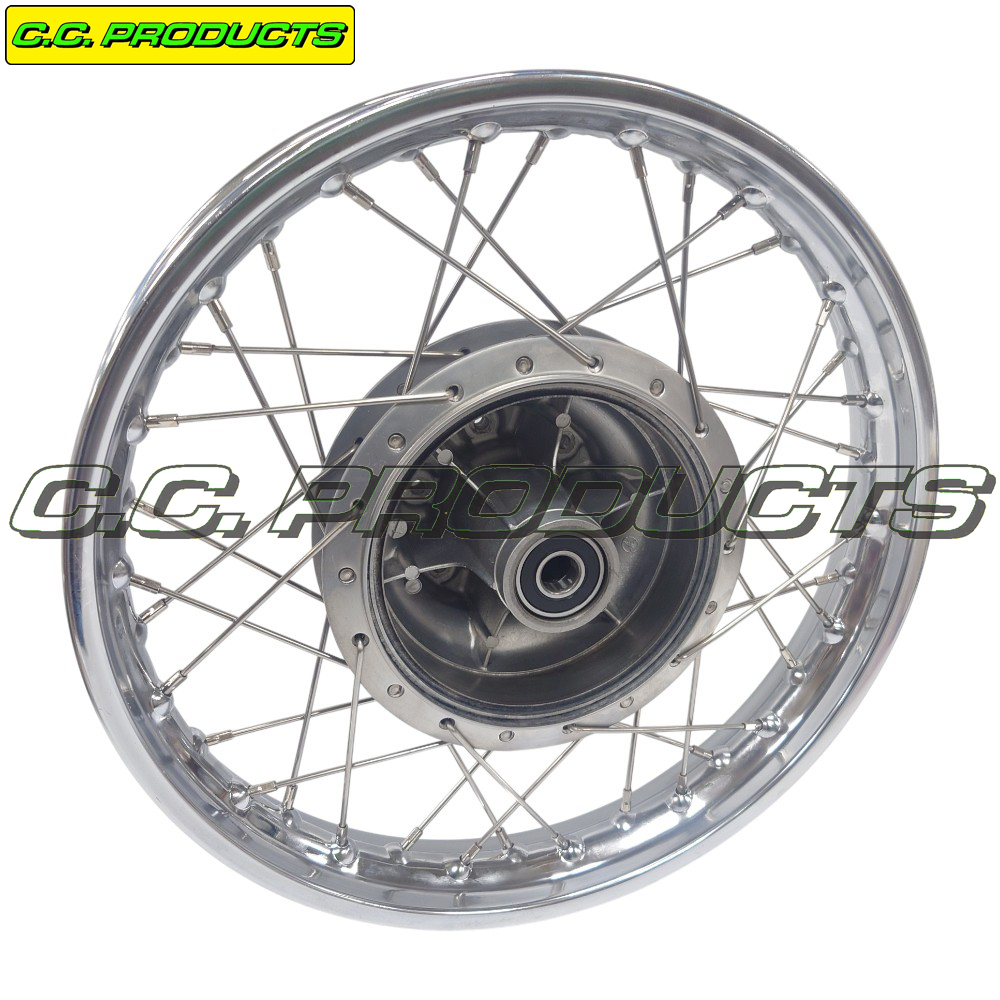

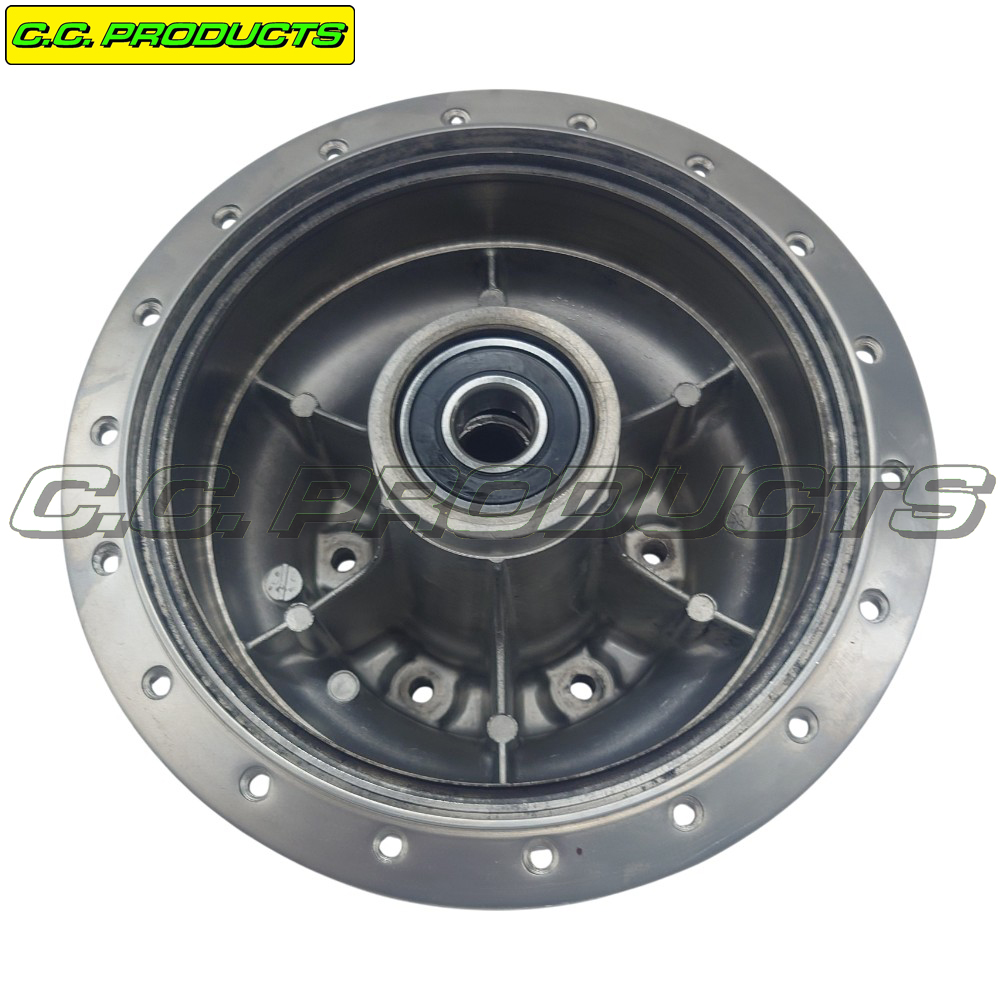

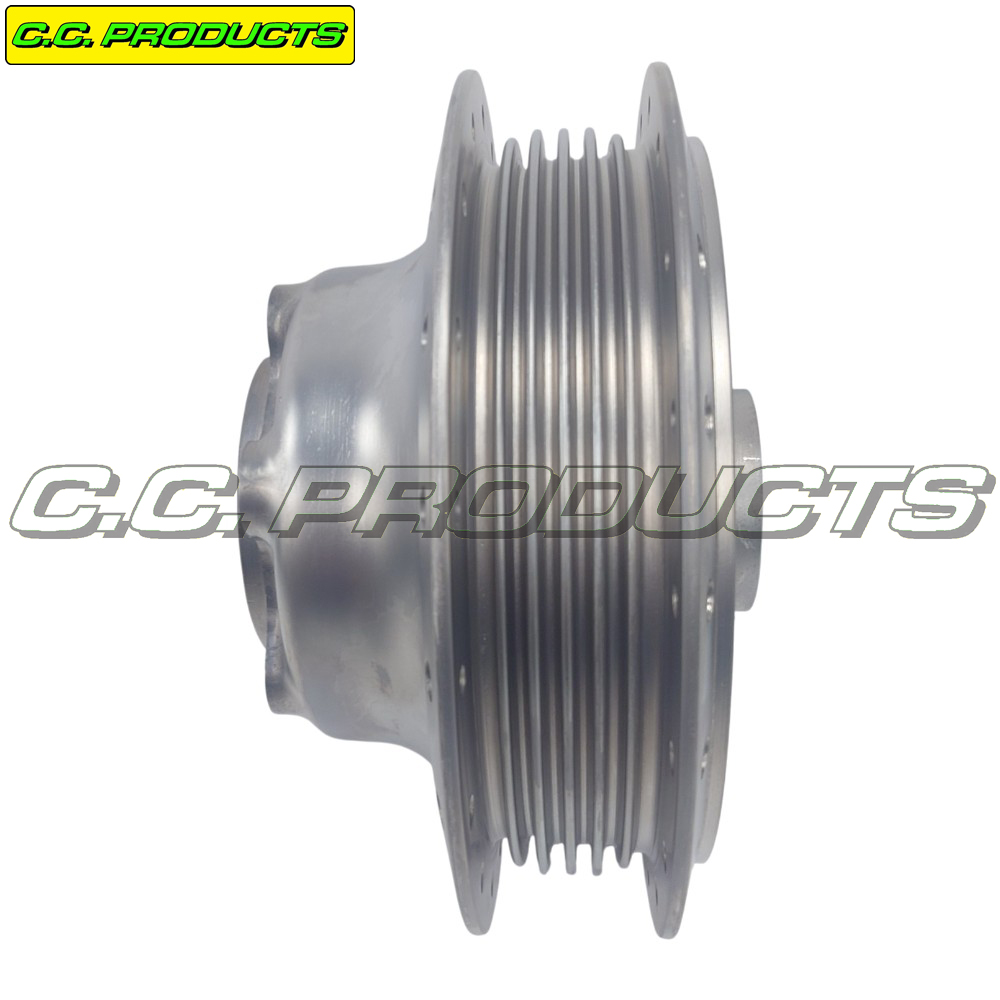

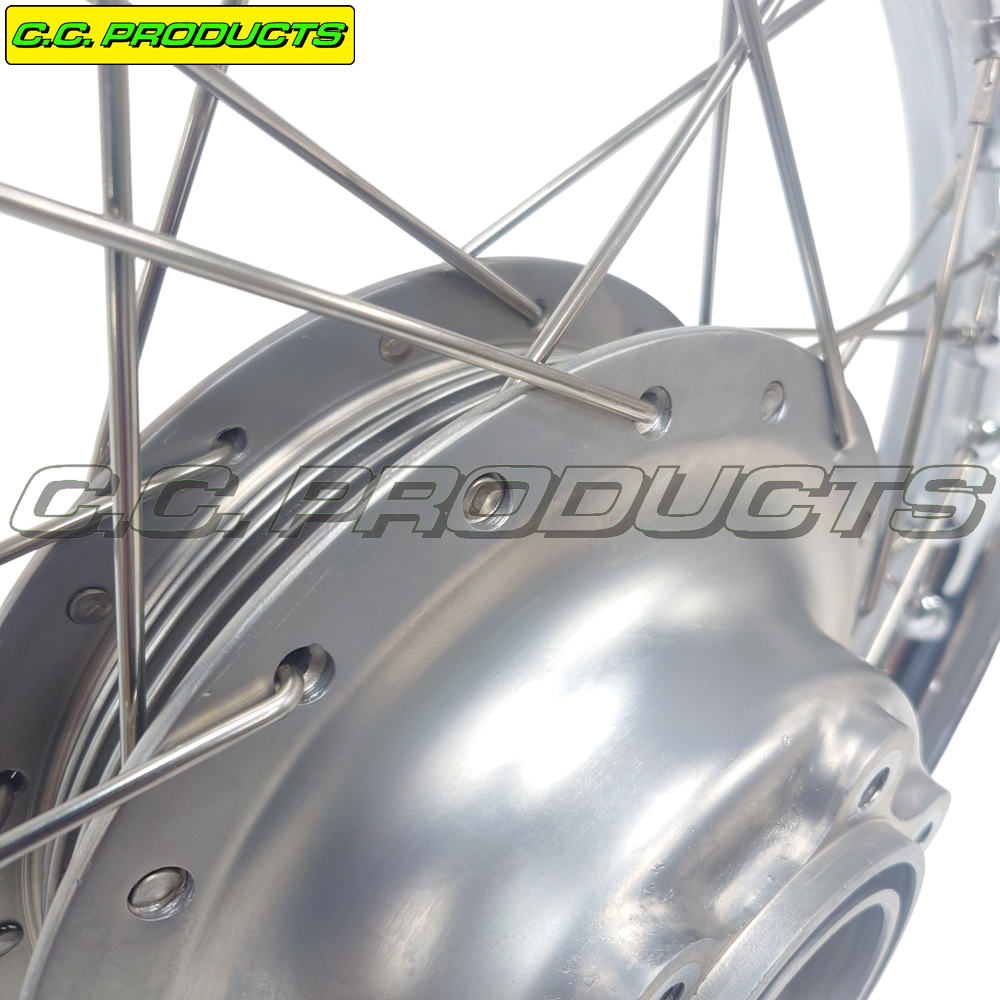

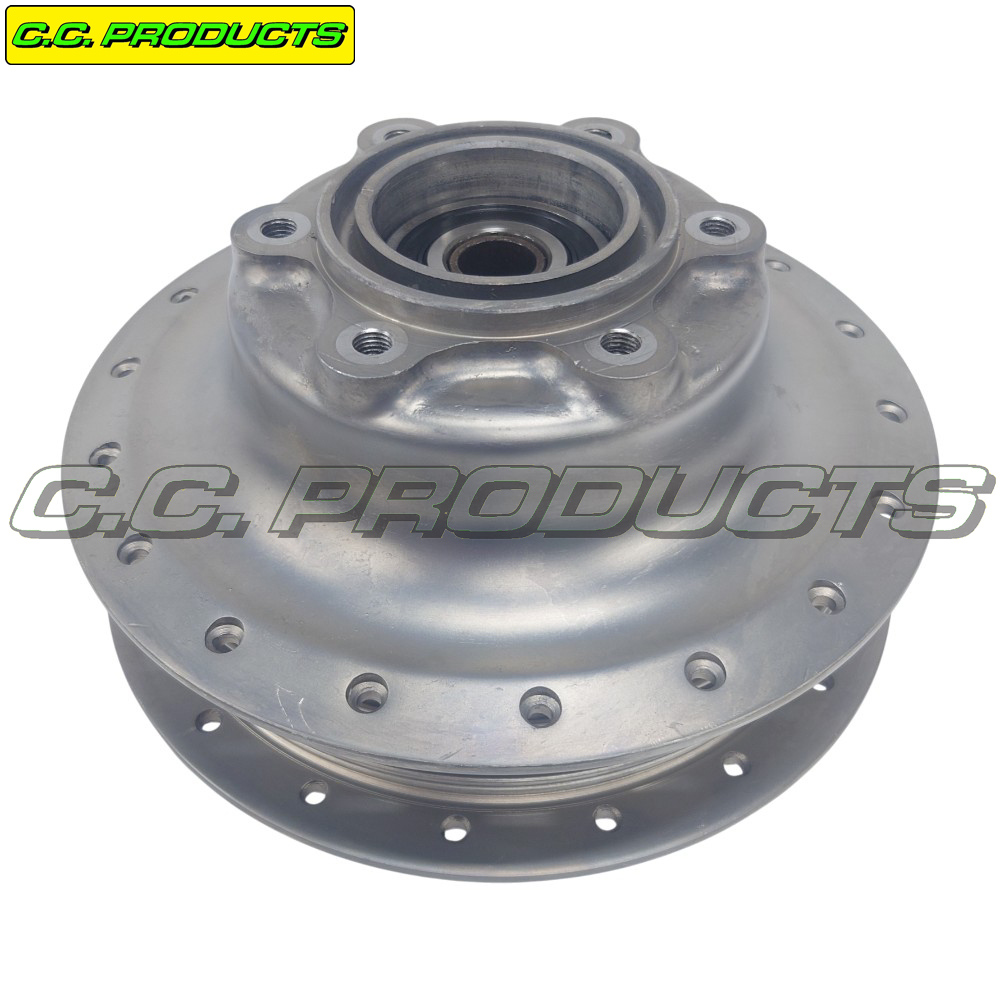

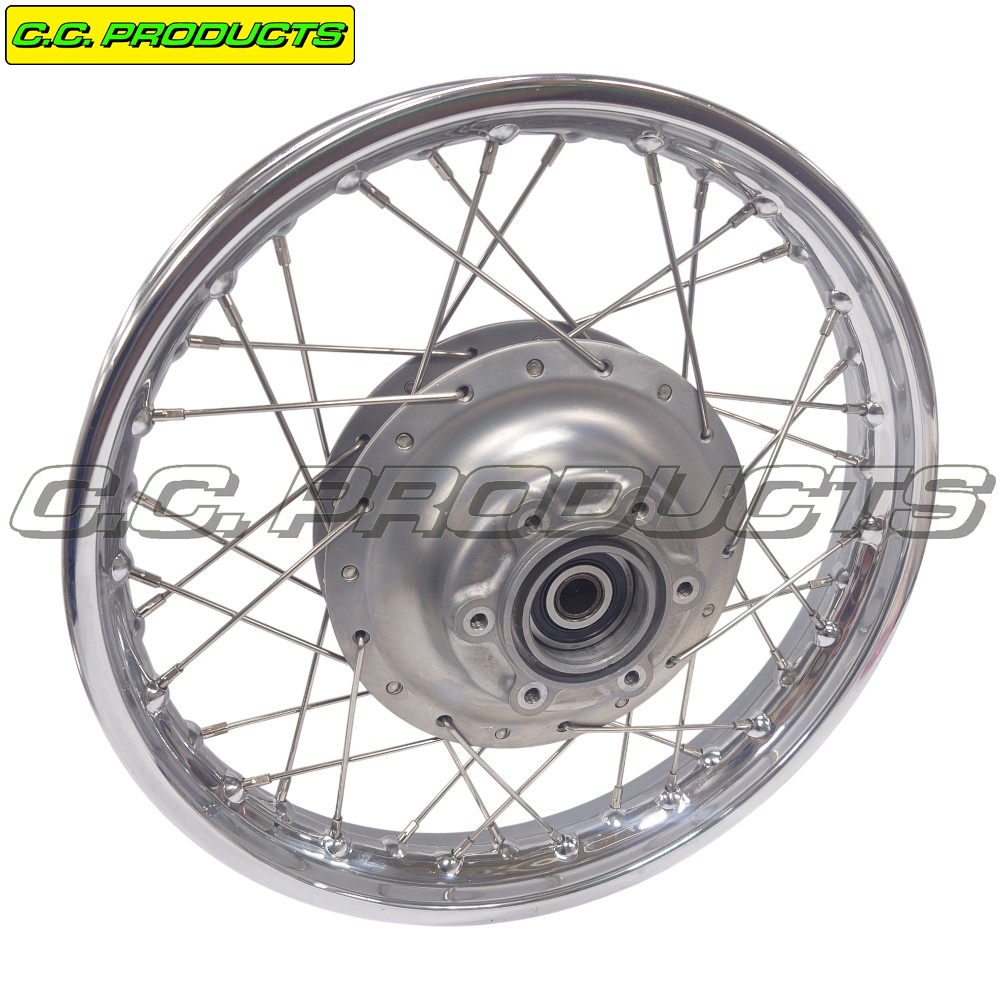

For 18-inch rear wheel and hub 256-25311-00-00.
This spoke set has 36 spokes with spoke nipples.
Spoke size: 18 ekrar av 3.6x149 mm. Outer spoke on both sides.
Spoke size: 18 ekrar av 3.6x150 mm. Inner spoke on both sides.
OEM Ref. 256-25304-00 replaced by 256-25304-01.
Nipple size: 6,5x20 mm. (9G/250)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 3,6x149 mm, have article number 50-0945-1
One spoke and nipple, 3,6x150 mm, have article number 50-0945-2
Fits the following models:
YAMAHA
TX 650 74-76
XS-1 70-71
XS-2 1972
XS 650 75-81
For 18-inch rear wheel and hub 256-25311-00-00.
This spoke set has 36 spokes with spoke nipples.
Spoke size: 18 ekrar av 3.6x149 mm. Outer spoke on both sides.
Spoke size: 18 ekrar av 3.6x150 mm. Inner spoke on both sides.
OEM Ref. 256-25304-00 replaced by 256-25304-01.
Nipple size: 6,5x20 mm. (9G/250)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 3,6x149 mm, have article number 50-0945-1
One spoke and nipple, 3,6x150 mm, have article number 50-0945-2
