Spoke and nipple Husqvarna 18-inch 75-78 Rear Wheel
50 SEK per Each
CC Products spokes are made in our spoke machine in our own warehouse in Sweden. We use Swedish stainless steel spoke wire with a tensile strength of 1450 N/mm2 and a yield strength of 1250 N/mm2!
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 50-0338-3
CC Products stainless spoke with nipple 4x203 mm
Fits the following models:
HUSQVARNA
ACC 390 77-78
AMX 390 75-77
CR 125 75-76
CR 175 75-76
CR 250 75-76
CR 360 75-76
CR 360 Automat 75-76
CR 390 75-76
OR 390 75-76
WR 125 75-76
WR 250 75-76
WR 360 75-76
WR 360 Automat 75-76
WR 390 75-76
For 18-inch rear wheel with hub 15 19 818-01.

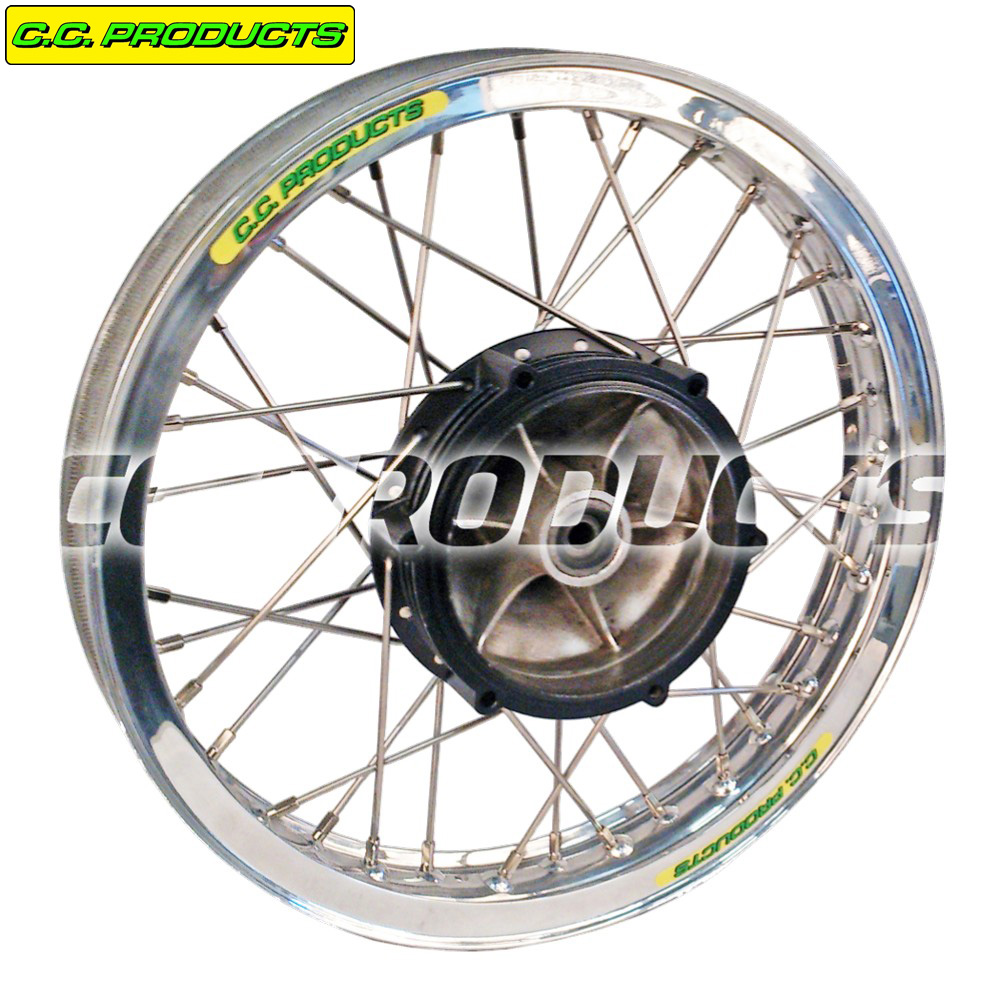

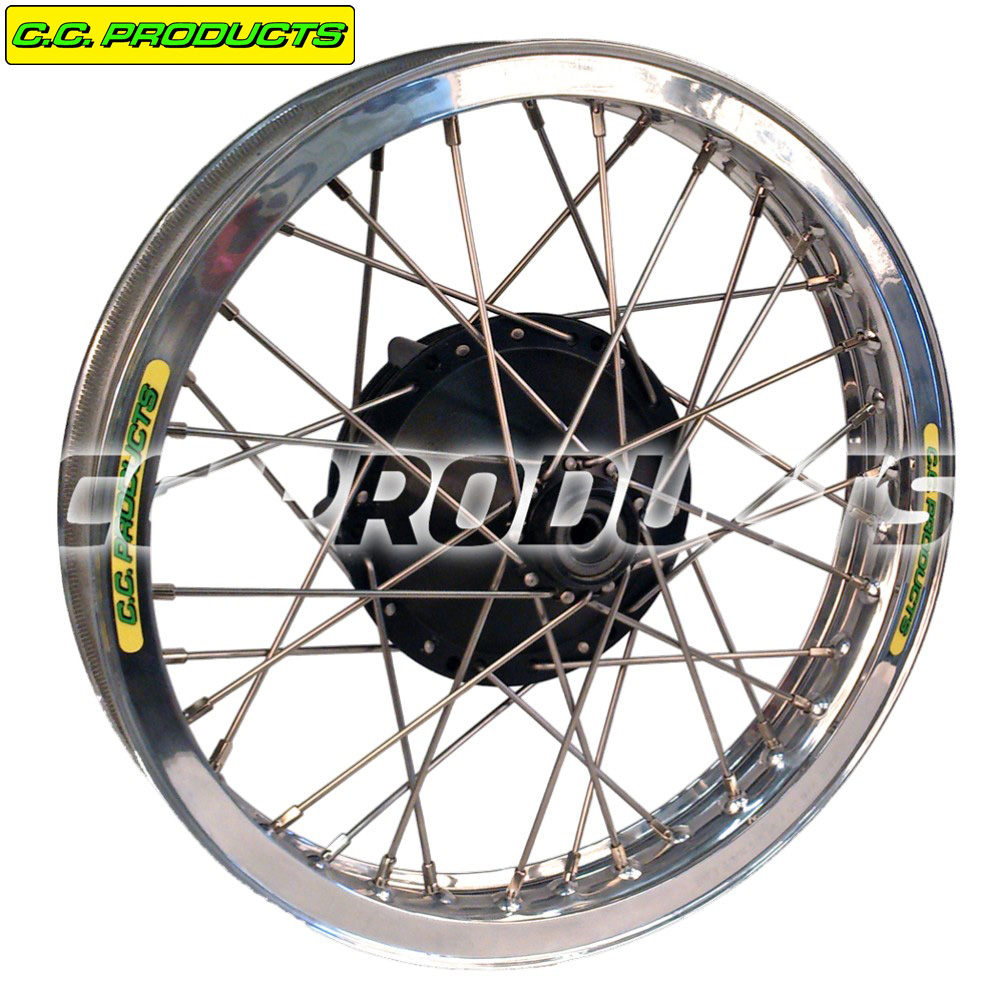

NOTE! This wheel have a very special lacing as you can see on the pictures below. On the sprocket side (right side) there are 2 long spokes and one short spoke used on both inner and outer side of the hub.
Spoke size: 18 spokes of 4x203 mm. Left side.
OEM Ref. 15 16 049-17.
Loxeal 10 ml. thread lock can be purchased separately on article number 52-2418.
Nipple size: 7,6x20 mm. (8G/300)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
Fits the following models:
HUSQVARNA
ACC 390 77-78
AMX 390 75-77
CR 125 75-76
CR 175 75-76
CR 250 75-76
CR 360 75-76
CR 360 Automat 75-76
CR 390 75-76
OR 390 75-76
WR 125 75-76
WR 250 75-76
WR 360 75-76
WR 360 Automat 75-76
WR 390 75-76
For 18-inch rear wheel with hub 15 19 818-01.
NOTE! This wheel have a very special lacing as you can see on the pictures below. On the sprocket side (right side) there are 2 long spokes and one short spoke used on both inner and outer side of the hub.
Spoke size: 18 spokes of 4x203 mm. Left side.
OEM Ref. 15 16 049-17.
Loxeal 10 ml. thread lock can be purchased separately on article number 52-2418.
Nipple size: 7,6x20 mm. (8G/300)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
