Spoke and nipple Suzuki DR 250 18-inch 90-93 Rear Wheel
50 SEK per Each
CC Products spokes are made in our spoke machine in our own warehouse in Sweden. We use Swedish stainless steel spoke wire with a tensile strength of 1450 N/mm2 and a yield strength of 1250 N/mm2!
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
(Optional)
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 50-0538-2

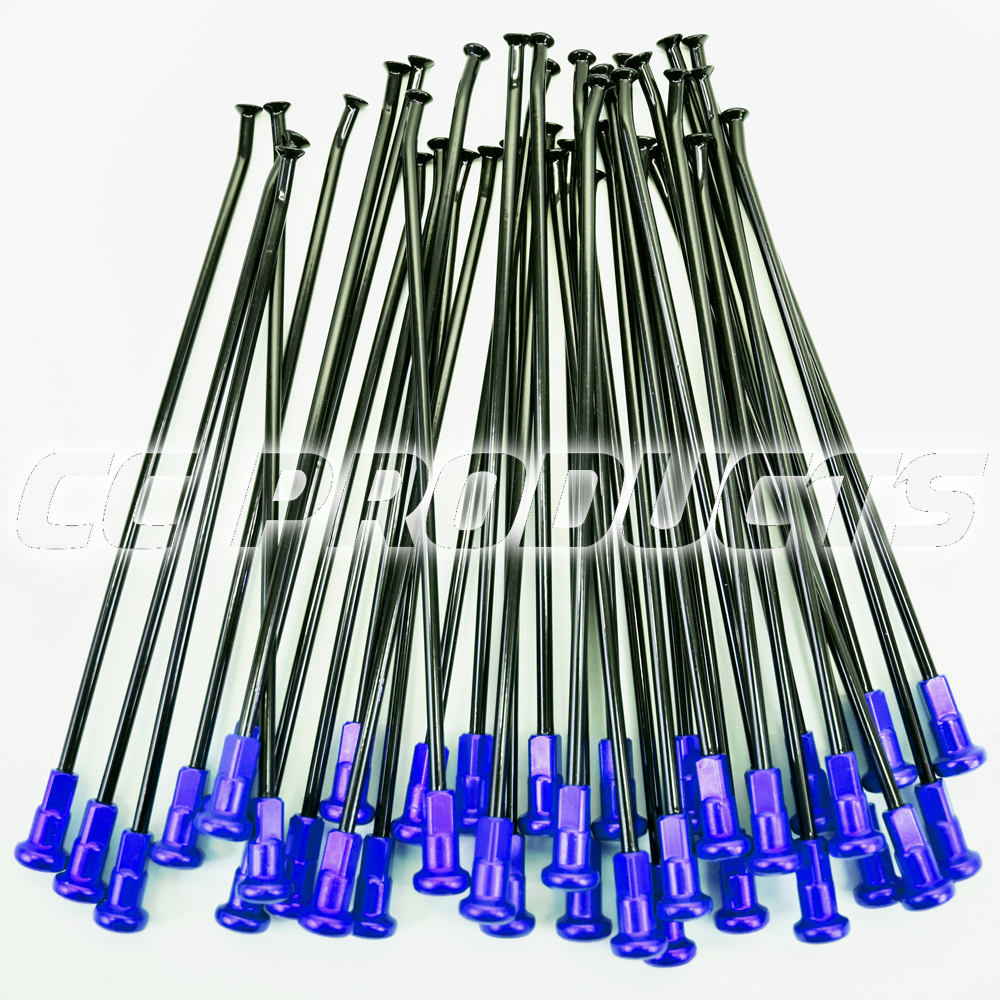

CC Products Stainless spoke and nipple 3,6x190 mm
Fits the following models:
SUZUKI
DR 250 90-93
DR 350 90-99
DR 350 SE 90-99
DR-Z 250 01-07

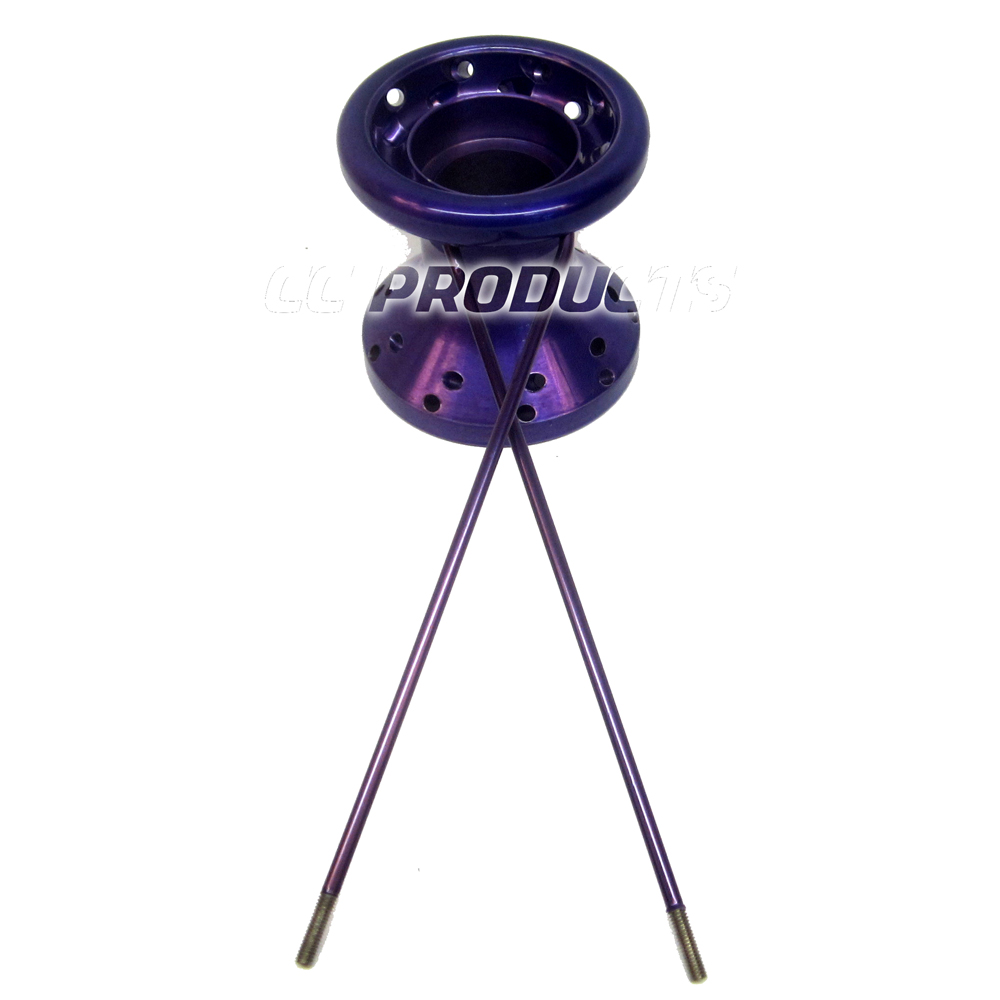

For 18-inch rear wheel with these hubs:
DR 250 90-93: 64111-14D00 replaced by 64111-14D01 replaced by 64111-03D00.
DR 350 90-96: 64111-14D00
DR 350 97-99: 64111-14D01 replaced by 64111-14D10.
DR 350 SE 90-99: 64111-14D01 replaced by 64111-14D10.
DR-Z 250 01-07: 64111-14D01 replaced by 64111-14D10.
There is two kind of spokes in this wheel.
Spoke size: 18 spokes of 3,6x190 mm. Inner spoke on both sides.
OEM Ekersats Ref. 65320-14D00 (DR 250, DR-Z 250, DR 350)
OEM Ekersats Ref. 65320-03D10 (DR 350 SE)

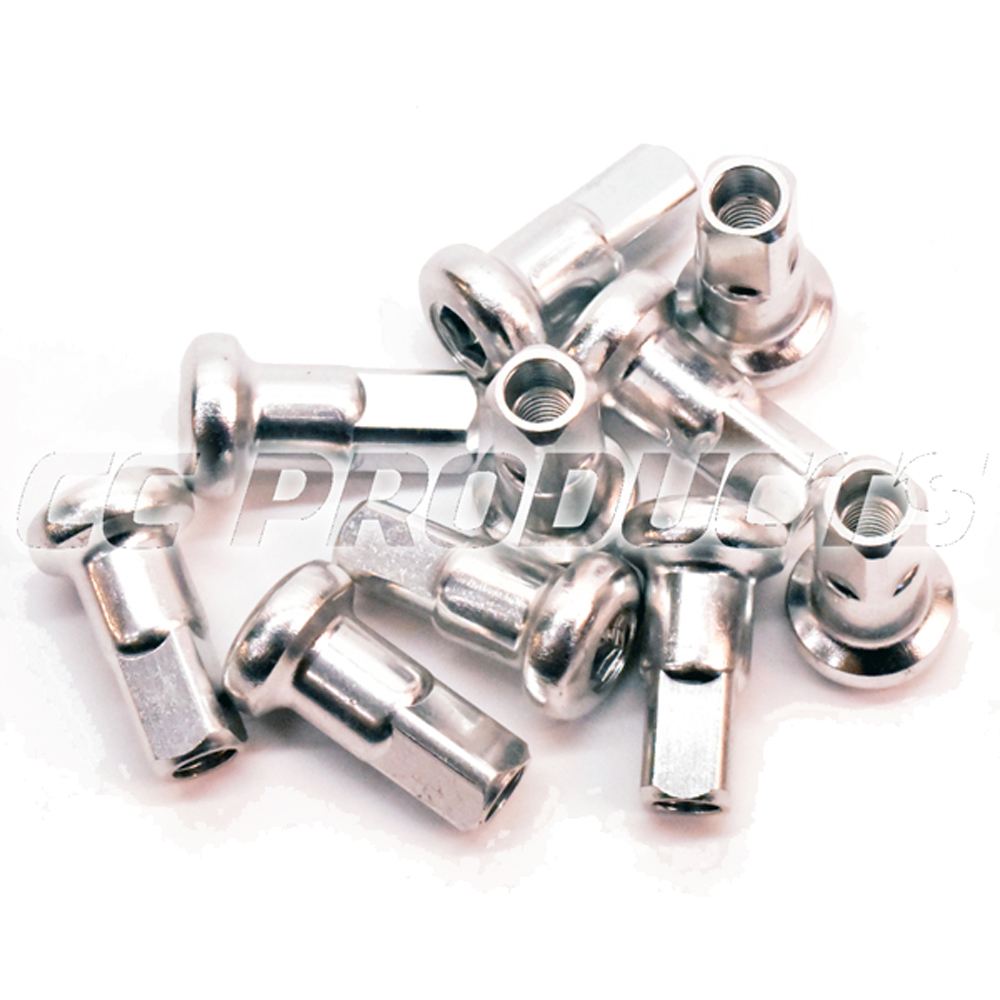

Nipple size: 7,0x20 mm. (9G/275)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
