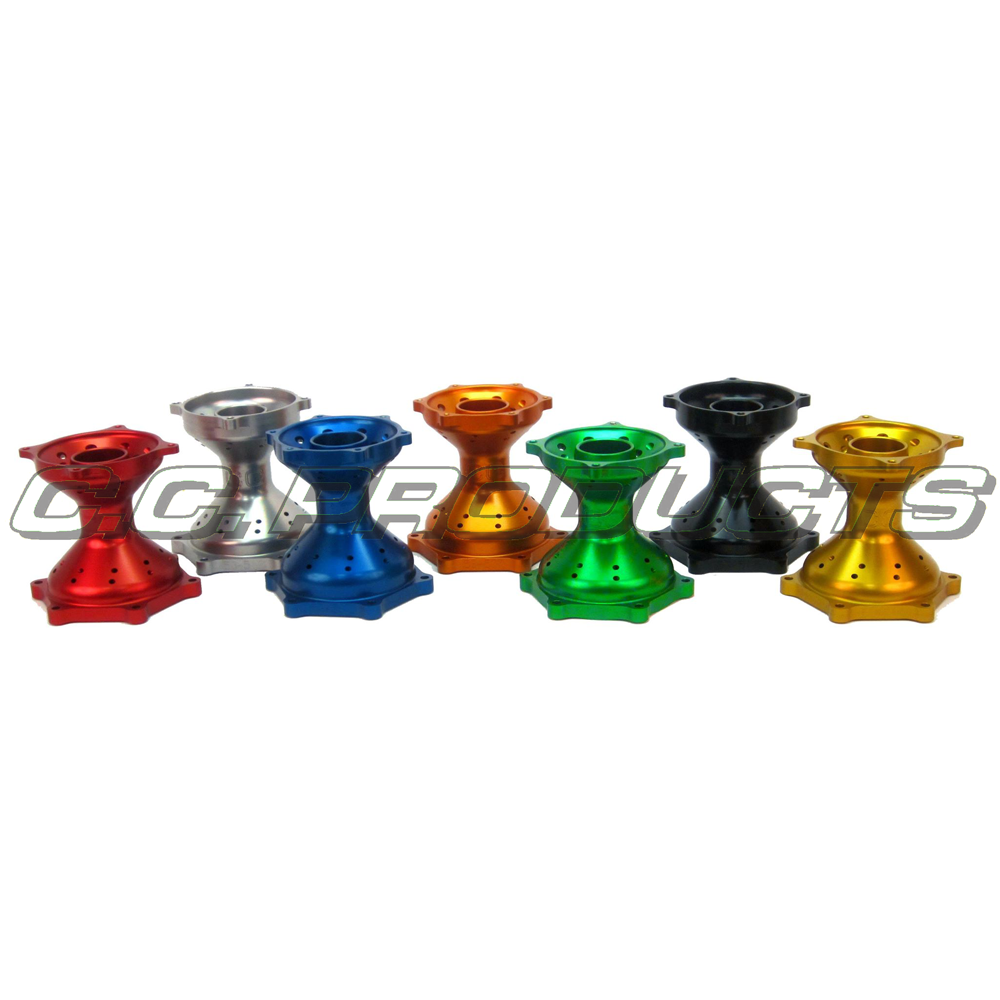

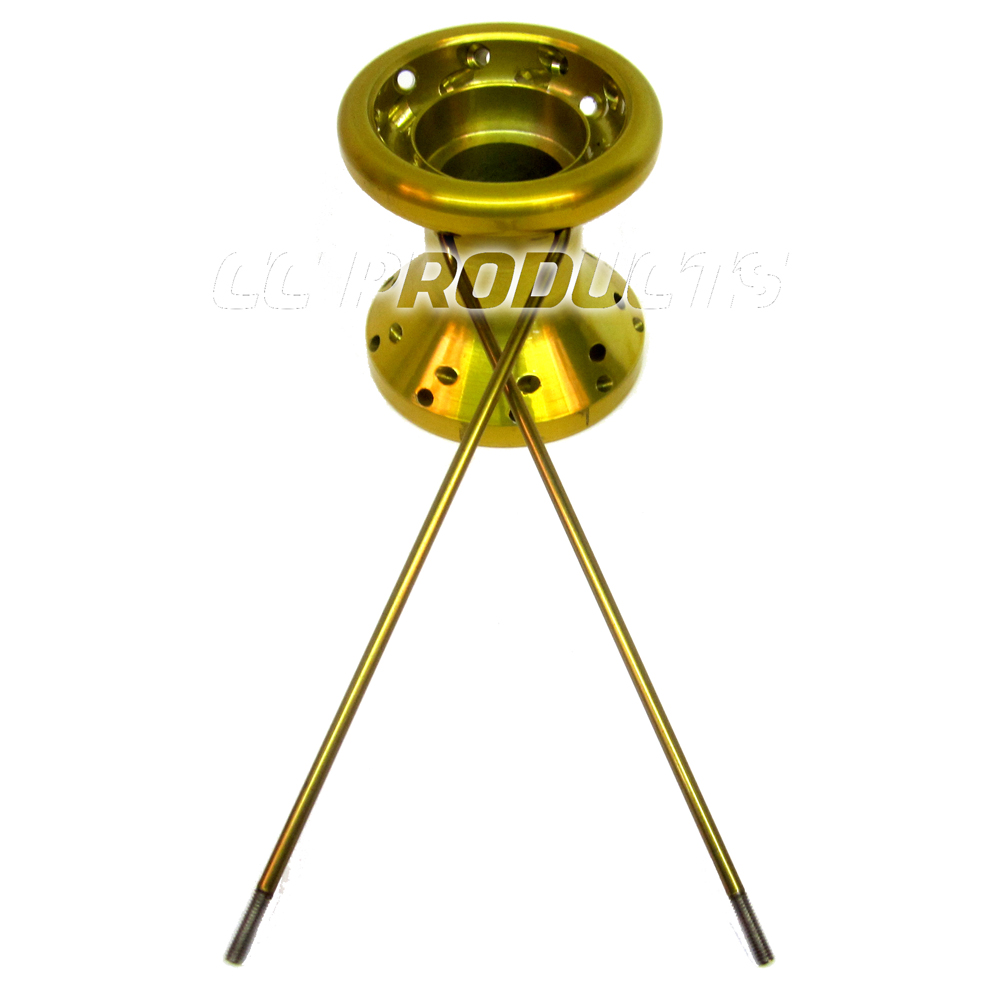

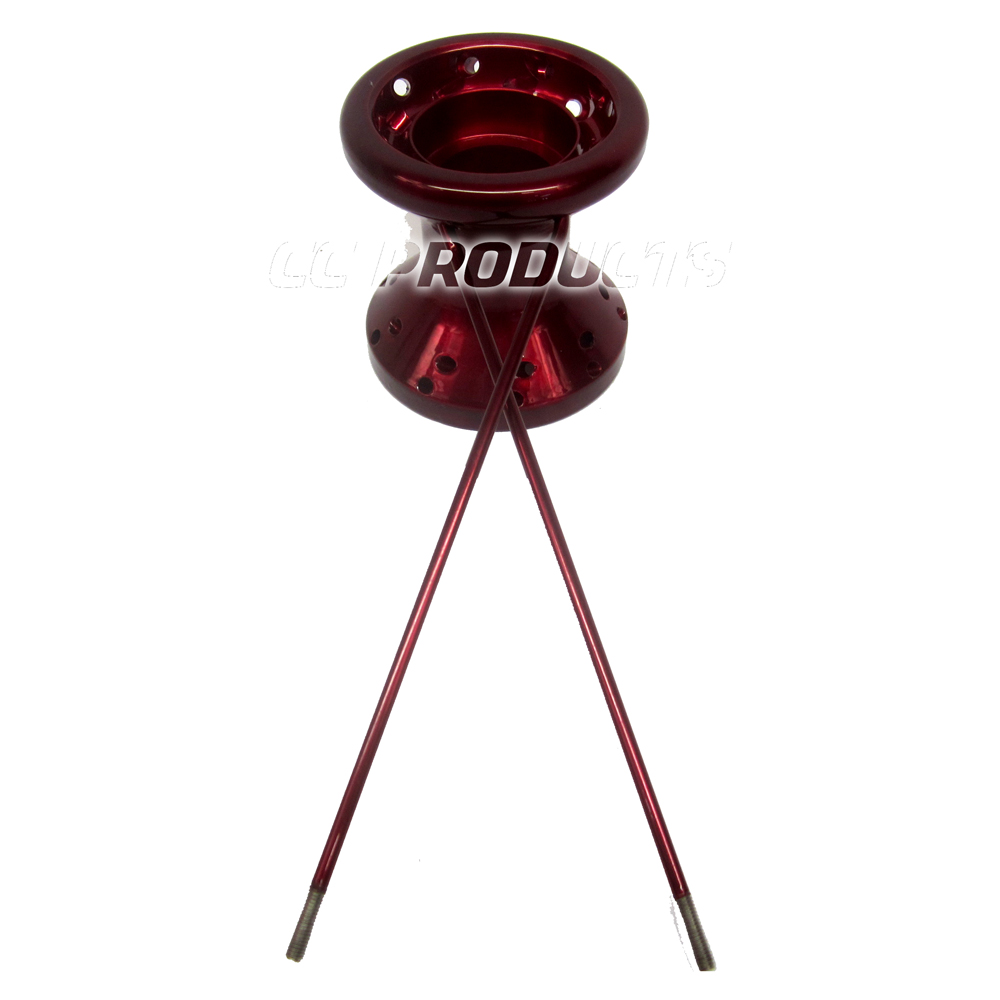

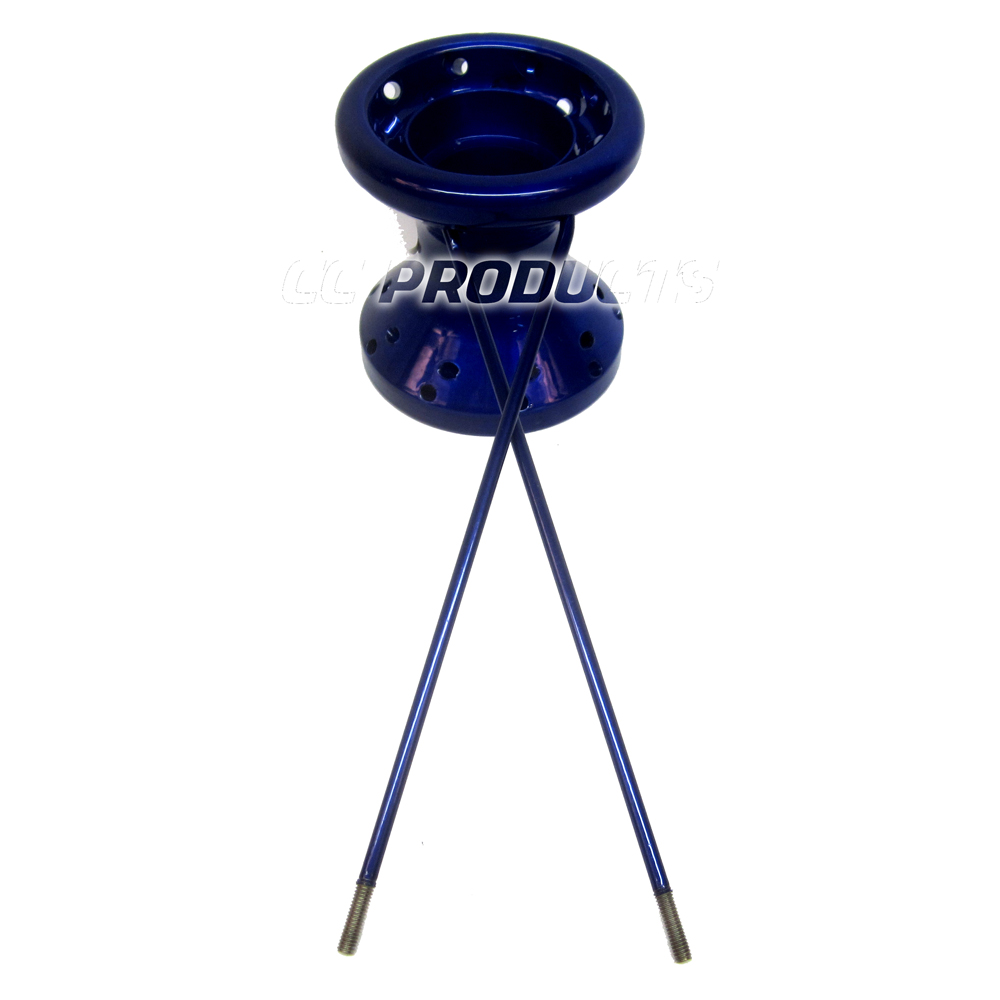

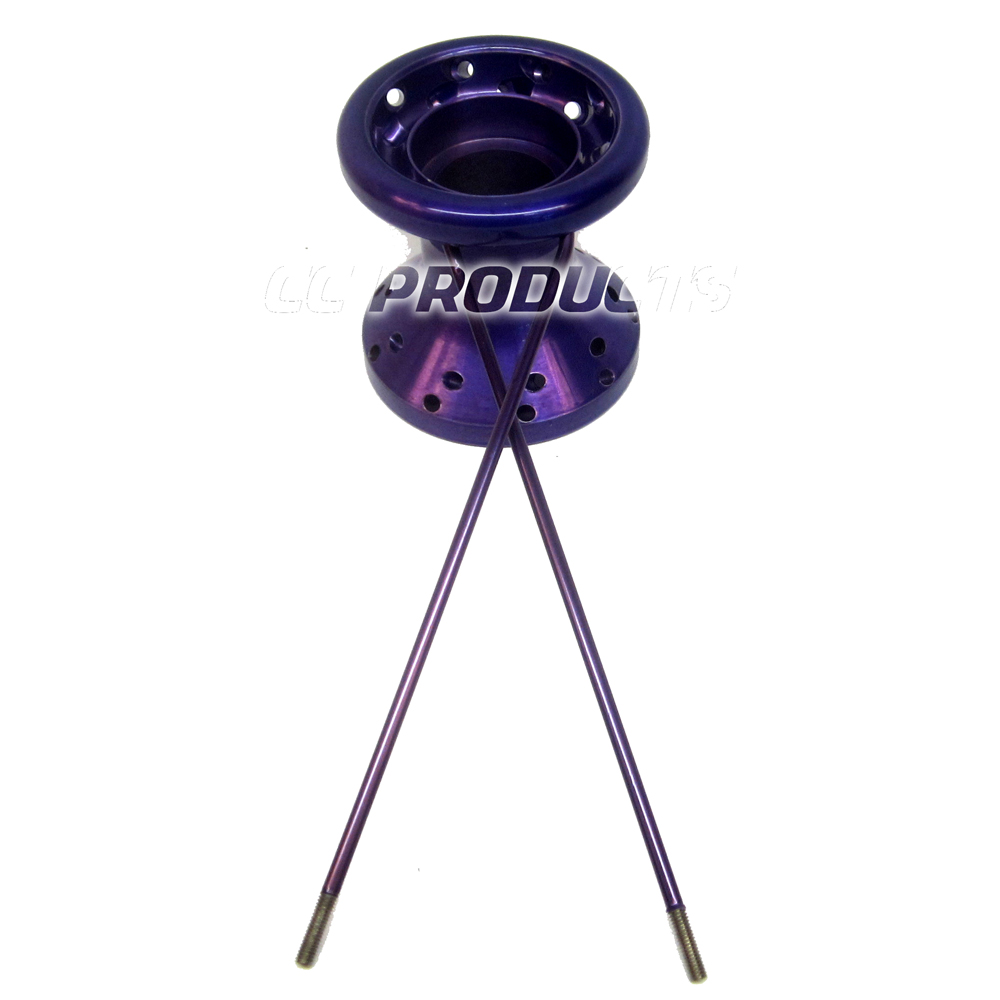

CC Rear Hub YZ/YZF/WRF 125-450 99-

CC Products hubs including bearings and oil seals


Fits the following motorcycles:
YAMAHA (NOTE! Different axle diameter on different years)
YZ 125 99-> (22 mm)
YZ 250 99-> (22 mm)
YZ 250 F 99-08 (22 mm)
YZ 450 F 99-08 (22 mm)
WR 250 F 99-> (22 mm)
WR 450 F 99-23 (22 mm)
YZ 250 F 24-> (25 mm)
YZ 250 F 09-> (25 mm)
YZ 450 F 09-> (25 mm)

Spare parts for hub 53-519:

Article	Article number	Quantity
02-07 - Axle collar left 22x55,9 mm	56-544	1
02-07 - Axle collar right 22x48,2 mm	56-525	1
09-> Axle collar left 25x29,0 mm	56-545	1
09-> Axle collar right 25x21,2 mm	56-529	1
Bearings	6005-2RS	4
Oil seals	26-017	2
Spacer between bearings 25x73,1 mm	56-021	1
Kit with bearings and oil seals 99-08	56-918	1
Kit with bearings and oil seals 09->	56-919	1

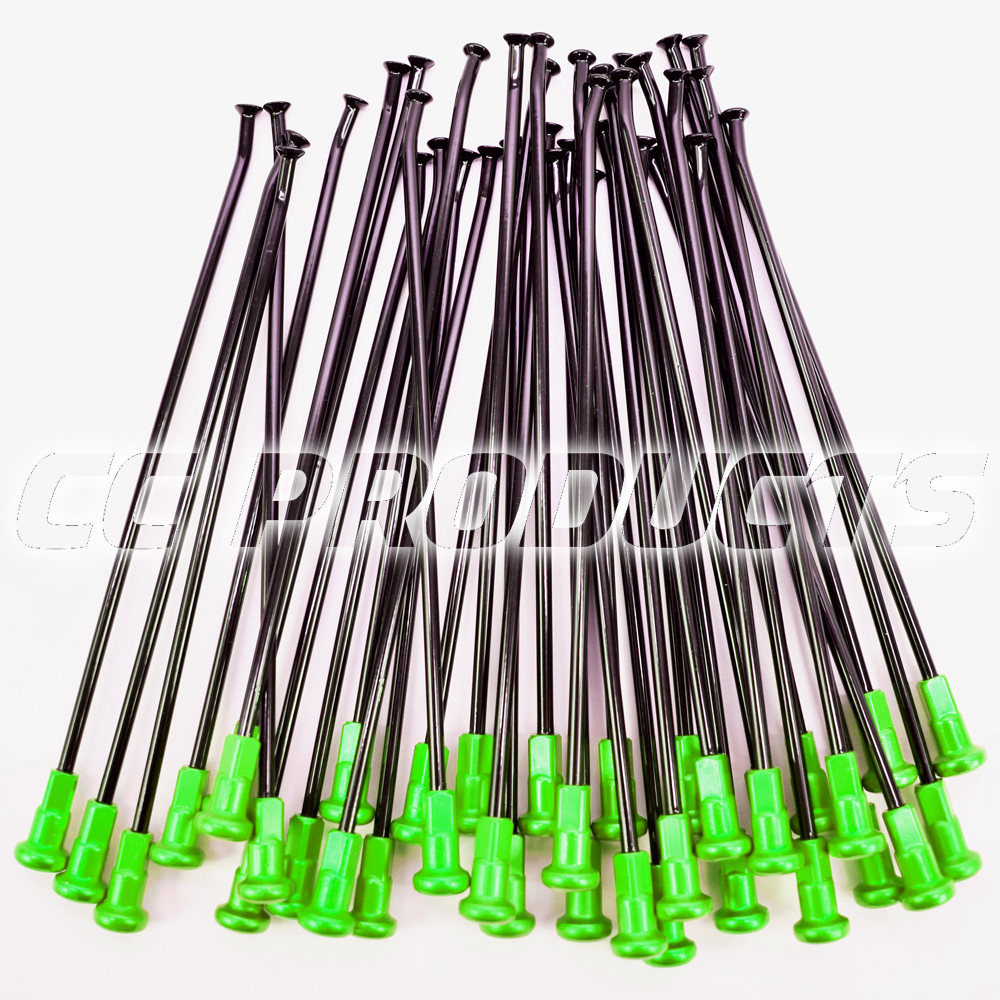

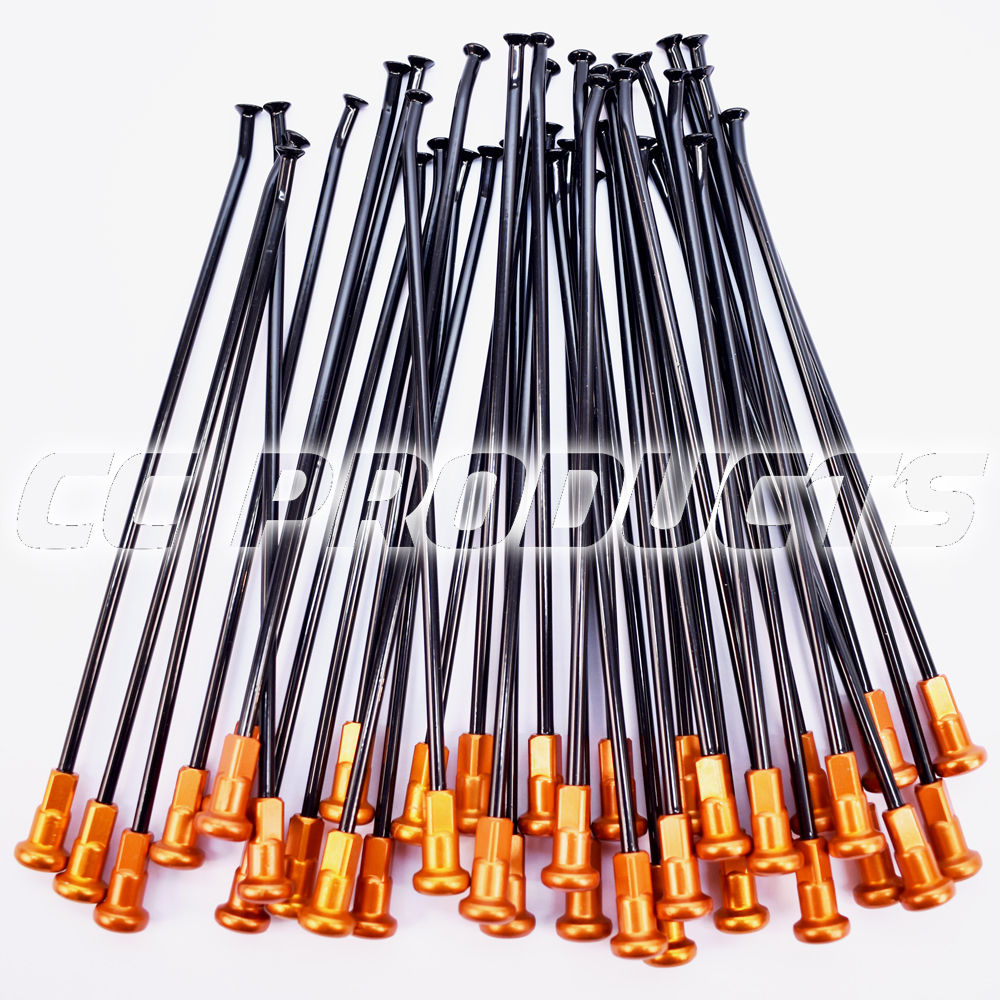

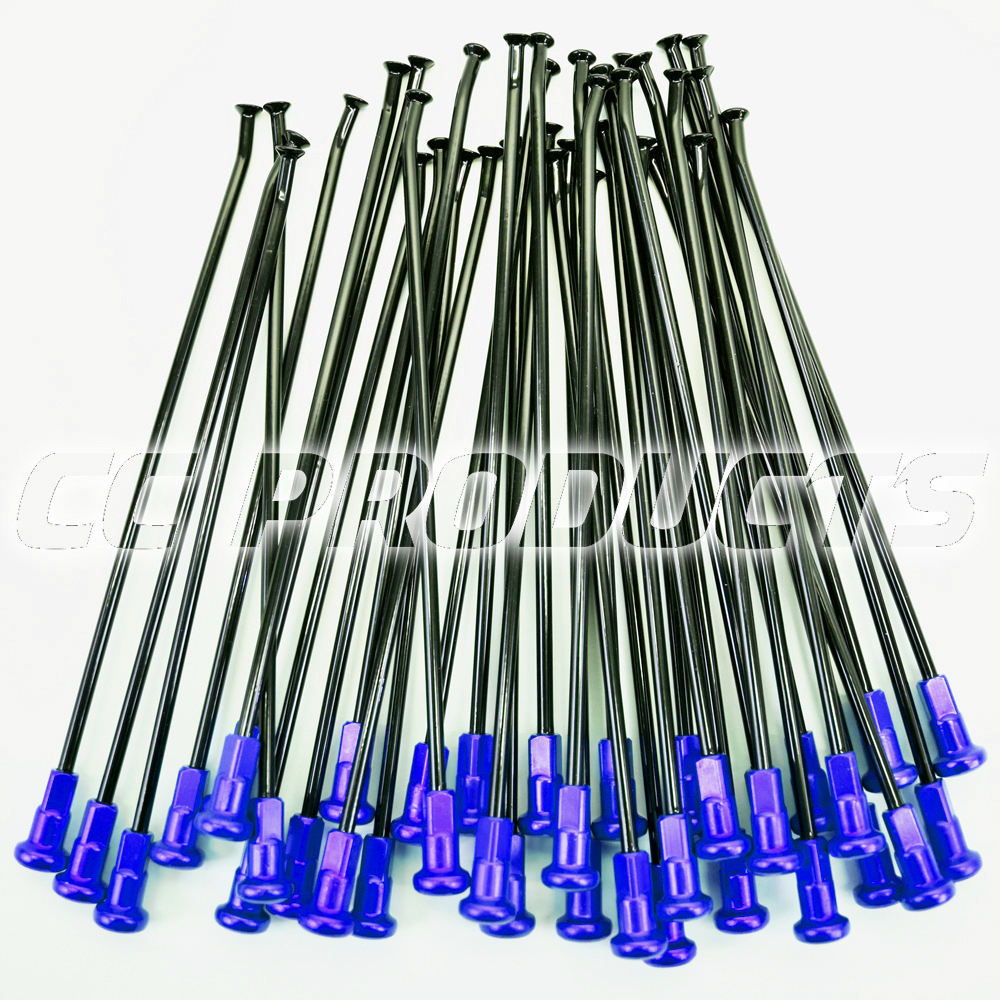

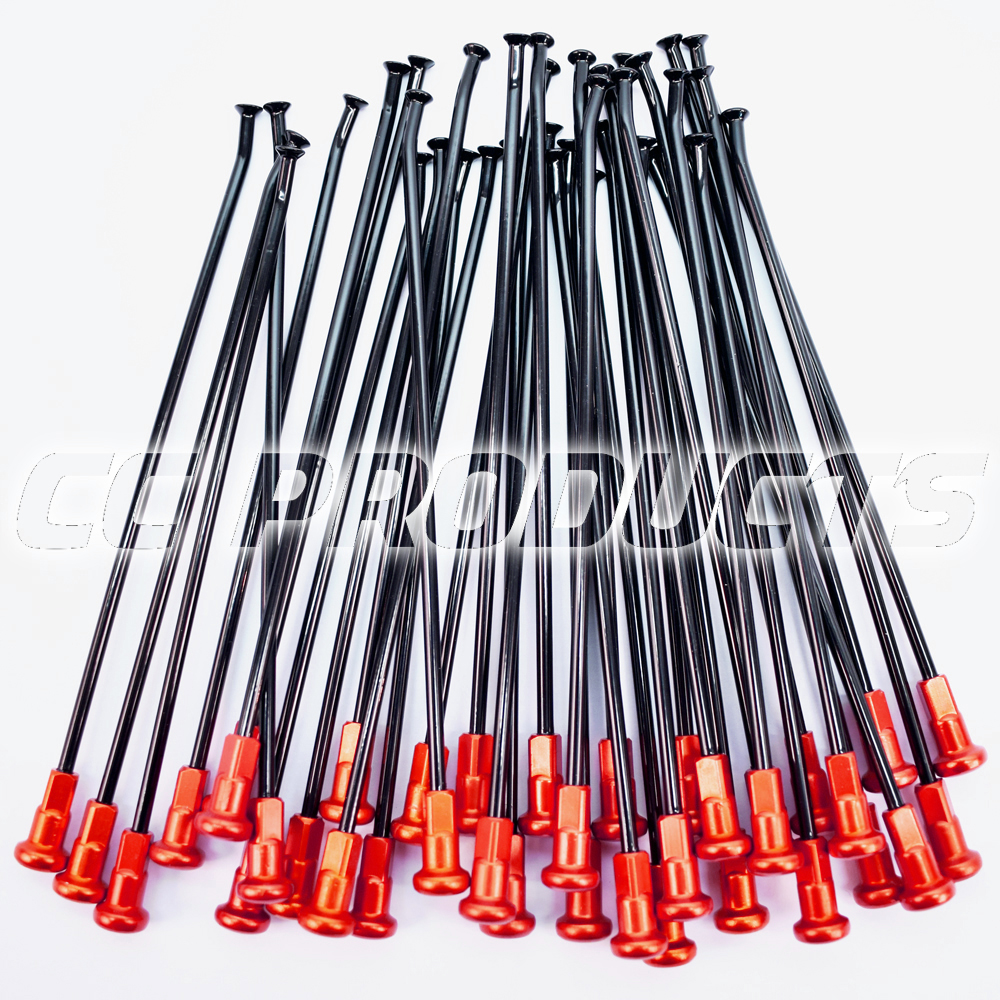

The spoke sets available are as follow:
17x4,25   50-0182 (Standard Lace)
17x4,25   50-0197 (X-Lace)
17x4,50   50-0182 (Standard Lace)
17x4,50   50-0197 (X-Lace)
17x5,00   50-0187 (Standard Lace)
17x5,00   50-0197 (X-Lace)
17x5,50   50-0187 (Standard Lace)
18x1,85   50-0198
18x2,15   50-0198
18x2,50   50-0196
19x1,85   50-0199
19x2,15   50-0199
19x2,50   50-0186 (Flat Track)
19x3,00   50-0179 (Flat Track)

Rims that fit CC hubs can be found here:
www.cross-center.com/en/rims/cc-wheels/

If you do not find the rim you want, please contact us!
CC Products wheels - Proudly made in Sweden
