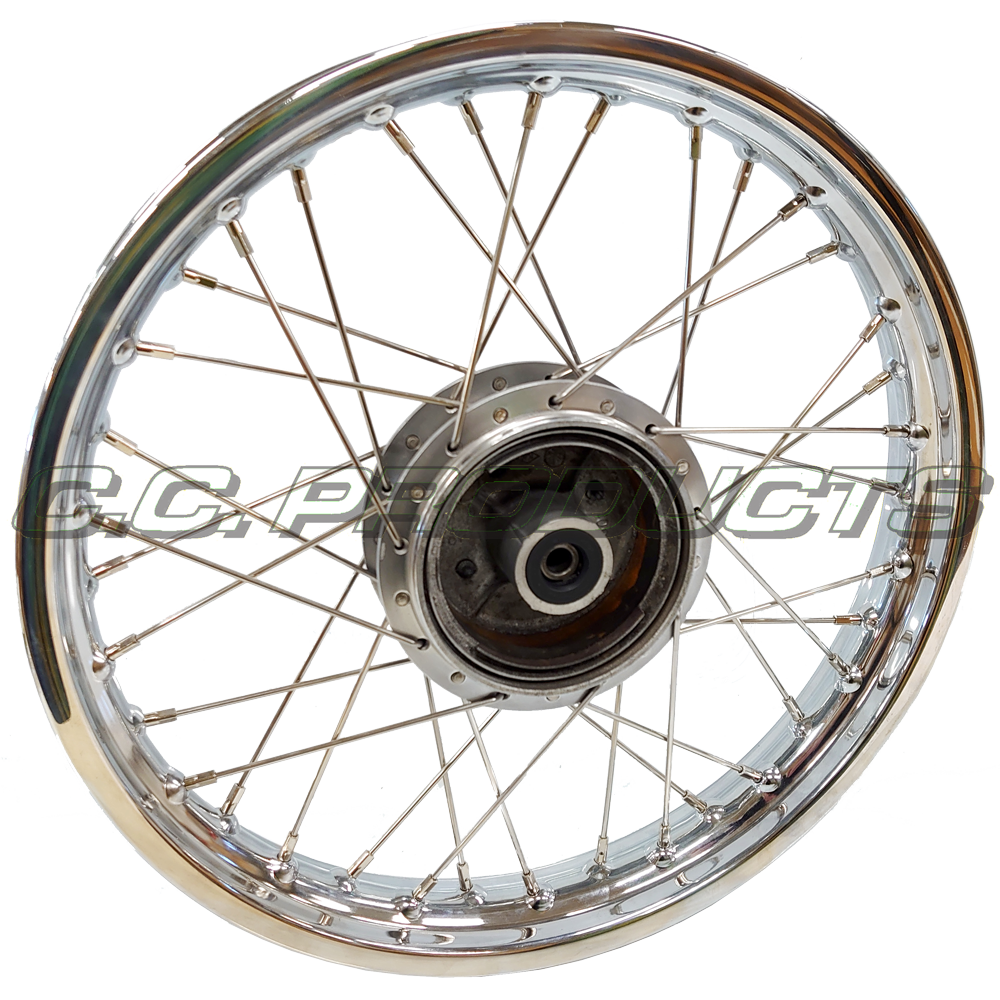

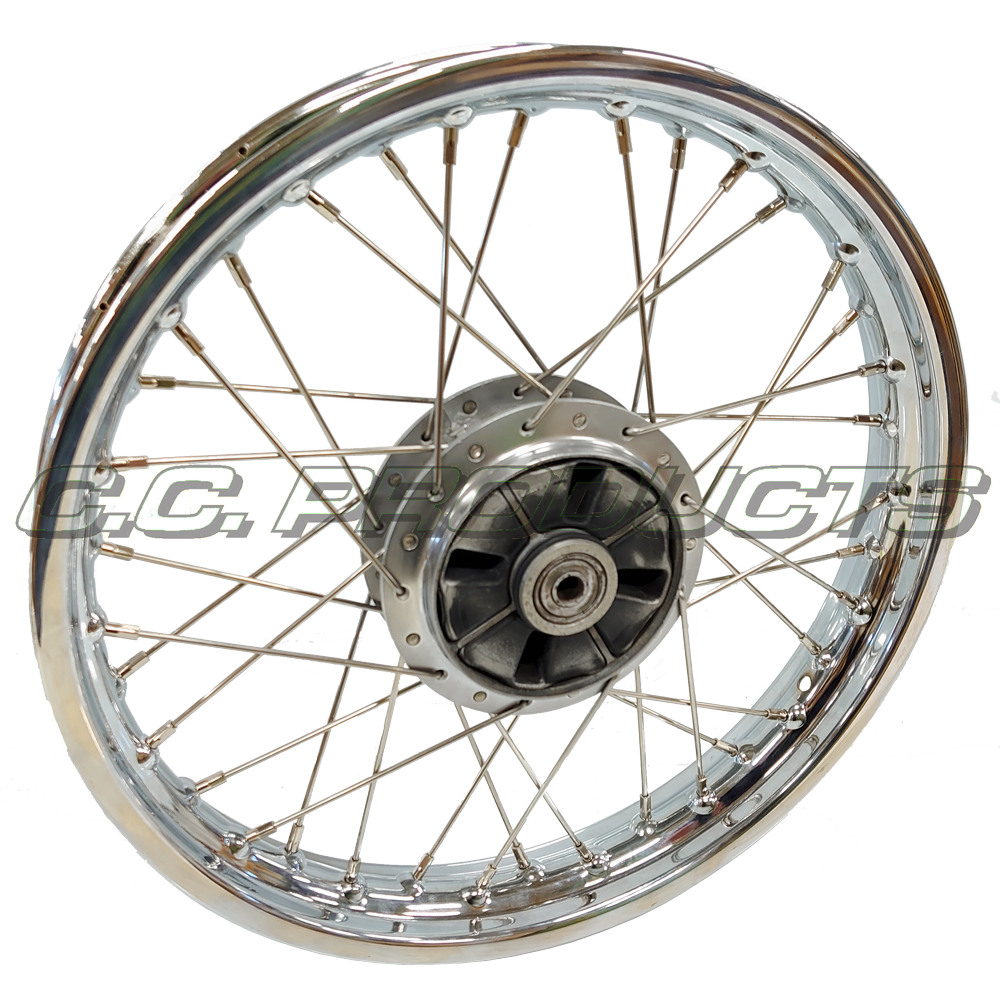

Spoke Set Yamaha FS1 DX 17-inch 76-89 Rear Wheel
750 SEK per Set
CC Products spokes are made in our spoke machine in our own warehouse in Sweden. We use Swedish stainless steel spoke wire with a tensile strength of 1450 N/mm2 and a yield strength of 1250 N/mm2!
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
(Optional)
- Secure payment by card
- E-mail us, we reply swiftly! order@wheelsandparts.se
- Fast delivery!
Description
Article no.: 50-1832
CC Products stainless spoke Set
Fits the following models:
YAMAHA
FS1 69-89
FS1 69-77 with cush drive.
FS1 DX 78-89
FS1 DX 76-77 with cush drive.
FS1 Disco 76-77
FS 50 1975
GT 50 70-72
LTE 50 69-70
RD 60 73-75 with cush drive.
T 50 1986
T 80 1986
U7E 1969
YG 80 Trailmastrer 64-69 with cush drive.

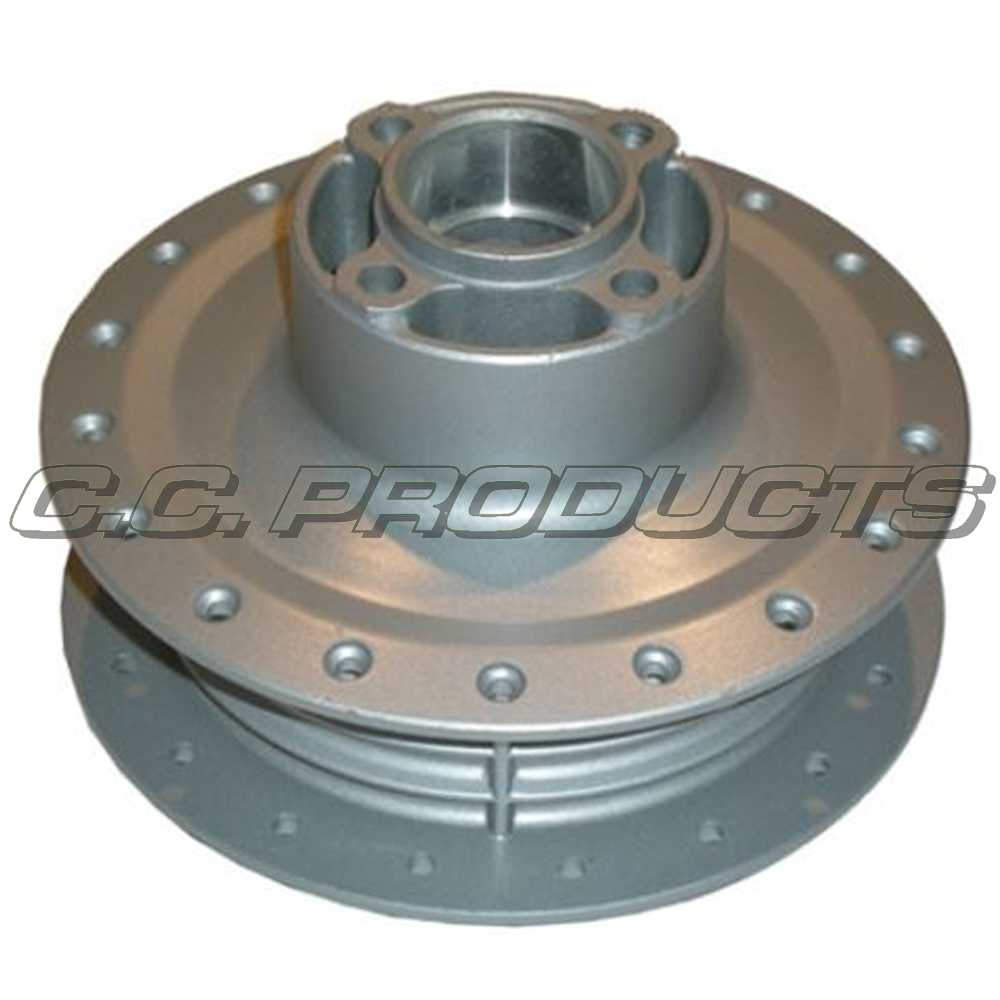

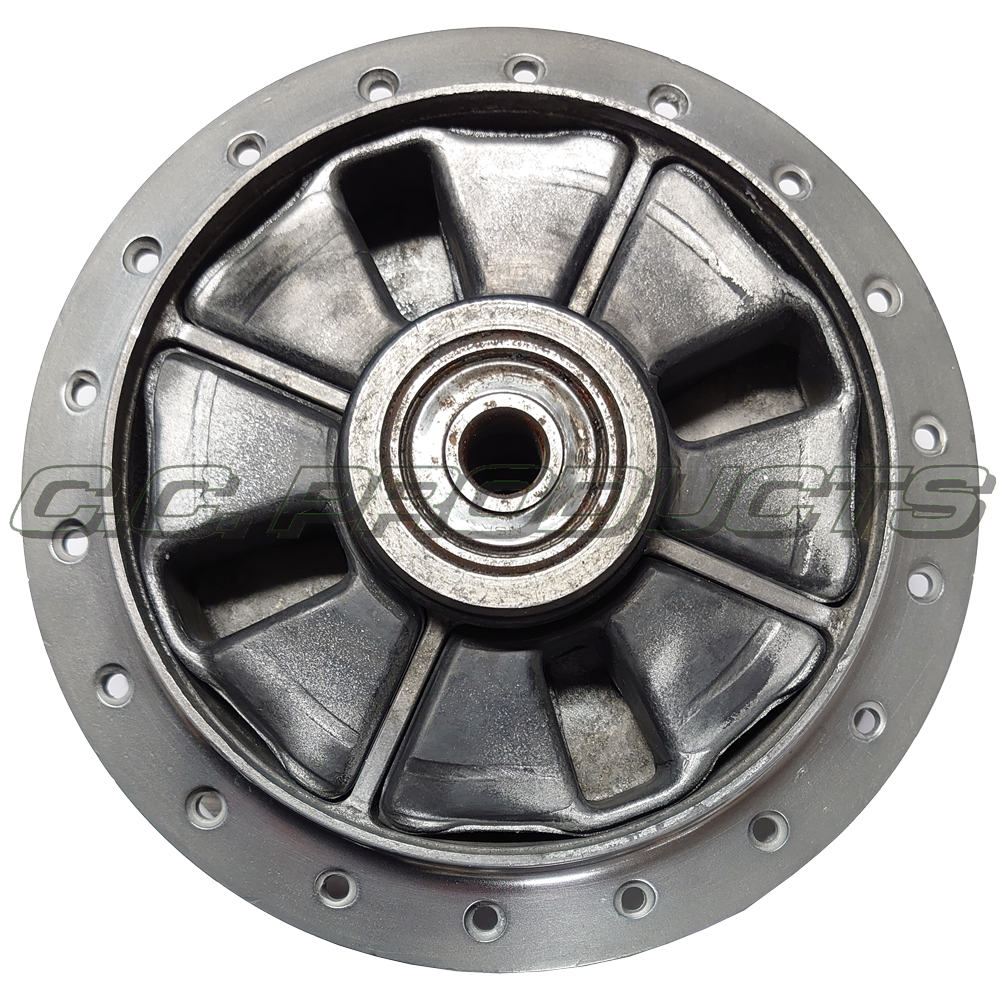

For 17-inch rear wheels with both standard hubs and hub with cush drive:
132-25311-00 replaced by 132-25311-00-38 replaced by 99999-02212.
22F-25311-00-35.
296-25311-00 replaced by 99999-01788.
462-25311-01-35.
474-25304-00.
This spoke set has 36 spokes with spoke nipples.
Spoke size: 18 spokes of 3,2x157 mm. Outer spoke both sides.
Spoke size: 18 spokes of 3,2x157 mm. Inner spoke both sides.
OEM Ref rear. 122-25304-00 (Spoke set), 18E-25304-00 and 296-25304-00 replaced by 296-25304-10.

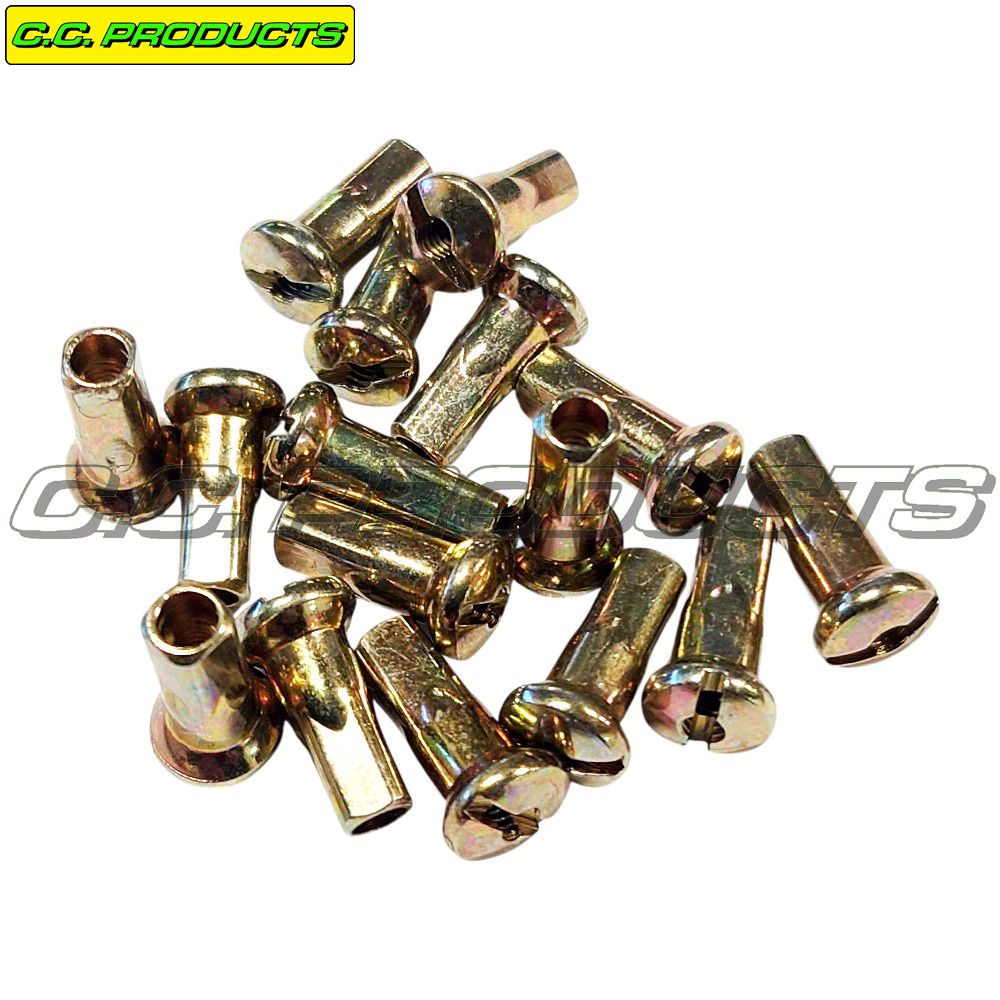

Nipple size: 5,7x15 mm. (10G/225)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 3,2x157 mm inner spoke, have article number 50-1832-1
One spoke and nipple, 3,2x157 mm outer spoke, have article number 50-1832-2
